Product Details:

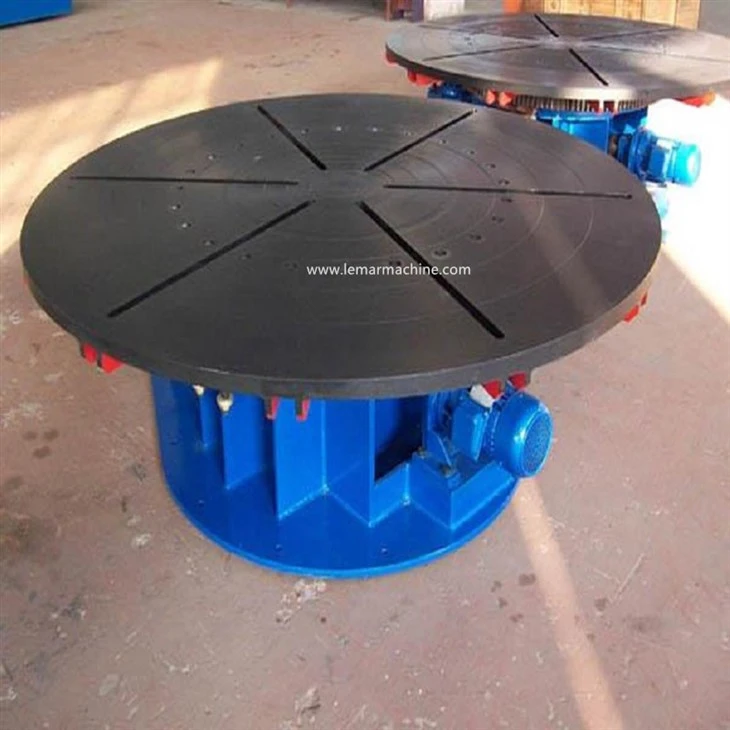

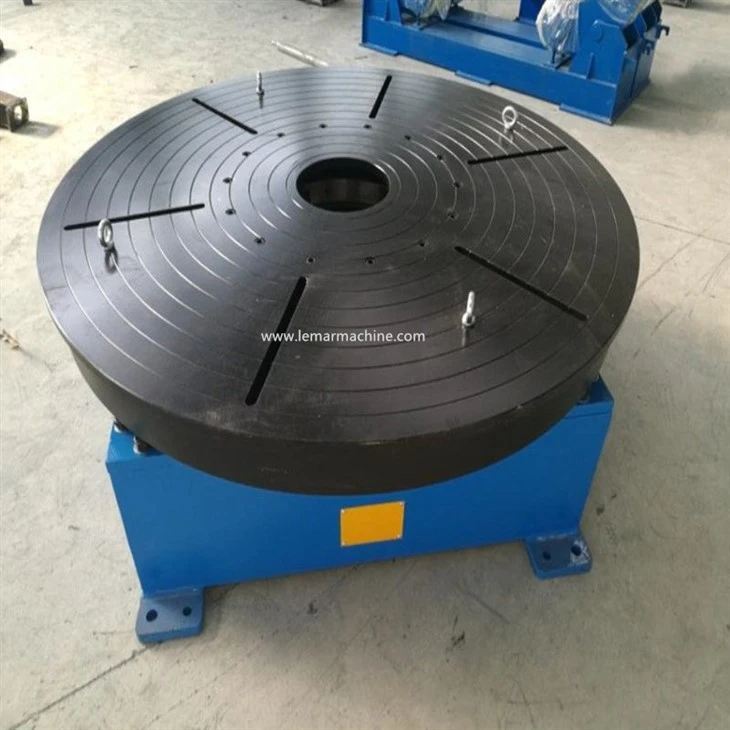

The Rotating Welding Turning Table produced by Wuxi Lemar Machinery Equipments Co.,Ltd is equipped with a positioning block and a clamping device on the worktable to fix the workpiece when it rotates in the horizontal direction. The rotation of the rotating turntable adopts AC frequency conversion speed regulation. Positioner variable speed range is large, the precision is high, and it can be rotated at the required welding speed. Thereby greatly improving the quality of the weld, reducing the welder's labor intensity, and improving labor productivity.
| Wuxi Lemar Heavy duty Welding rotary positioners turntable | |||
| Loading weight | 300kg-20000kg | Welding table diameter | 100-2600mm |
| Turntable tilting speed | 0.25-0.75r/min | Gravity | 150-200mm |
| Offsetting | 200-400mm | Rotating motor | 0.37-5.5kw |
| Tilt motor | 0.55-11kw | Turntable height | 600-1800mm |
| Warranty | 1 Year | Control mode | Handle box |
| Voltage | 380V | Colour | Customized |
Product Feature:
Rotating Welding Turning Turntable can be used for various automatic or manual welding, horizontal butt joints of pipes, end welding of pipes, and welding of various shafts, plates, cylinders, etc. It has the advantages of compact structure, small size, beautiful appearance, light weight and convenient operation. Ideal equipment for pressure vessel, metallurgy, electric power, chemical, machinery, metal structure and other industries.
Wuxi Lemar's welding auxiliary equipment:
Welded roller frame
Welding positioner
Welding positioner
Welding rotary table
welding chuck,
welding oscillator
Welding manipulator
Longitudinal and circumferential welding of pressure vessels
Circumferential welding of disk-shaped working end and housing
Circumferential welding of pipes and flanges
Butt welding of large diameter pipes
Wire feeders and other welding auxiliary equipment.
