2D/3D Flexible Welding Table D28/16
Product Description
Lemar 2D/3D Flexible Welding Plate D28/16 1000*2000
contains two independent major systems:
2D flexible welding platform and 3D flexible welding platform. Both offer two hole system specifications, D28 (28mm) and D16 (16mm).
The size of the worktable surface is 1000×2000mm.
Products Parameters
product Specification
that's our Product

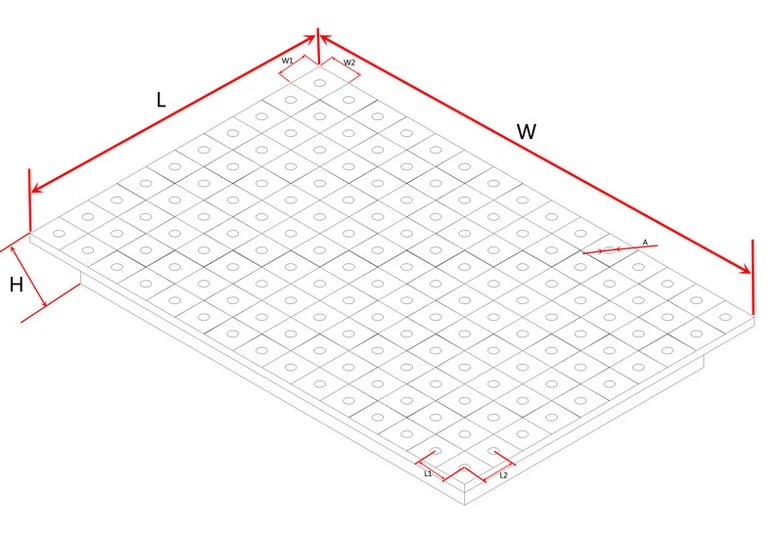

2D Flexible Welding Platform System
1. Core Features
Pure planar working mode
Focus on X/Y axis two - dimensional positioning
No Z - axis adjustment function
2. Technical Parameters
Parameter D28-2D D16-2D
Hole Spacing 100mm 50mm
Flatness ≤0.05mm/m² ≤0.03mm/m²
Typical Applications Welding of Heavy-duty Structural Components Assembly of Precision Components
3. Advantages
Simple and reliable structure
High cost-effectiveness
Easy maintenance

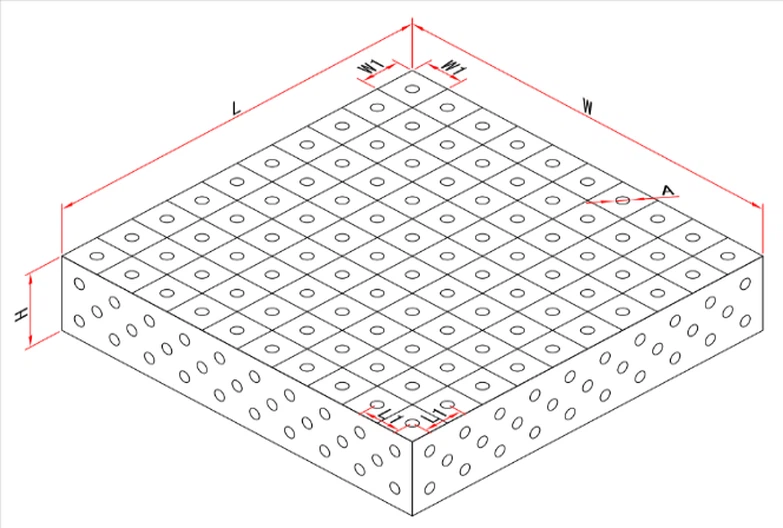

3D flexible welding platform system
1. Core features
Three - dimensional space adjustment
X/Y/Z three - way positioning
Angle - adjustable mechanism
2. Technical Parameters
Parameter D28-3D D16-3D
Z-axis Travel ±150mm ±100mm
Angle Adjustment ±30° ±15°
Typical Applications Welding of complex structural parts Precise three-dimensional assembly
3. Advantages
Flexible spatial positioning
Adapt to complex workpieces
Reduce special tooling
Lemarmachine 2D/3D Flexible Welding Plate D28/16 1000*2000 consists of independent 2D and 3D systems. Users can choose the appropriate models according to their actual production needs. The two systems adopt the same quality control standards, but there are clear distinctions in functional positioning and application scenarios.
