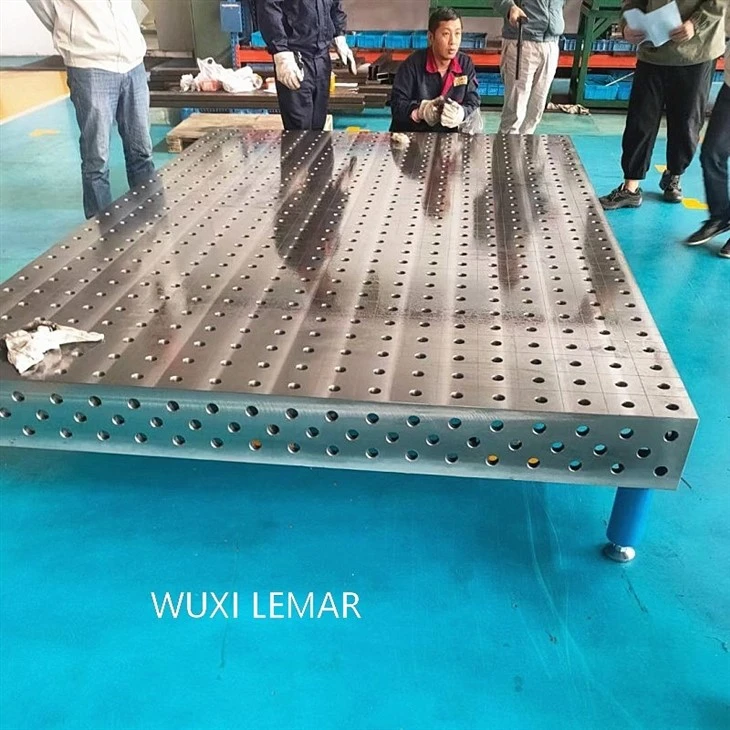

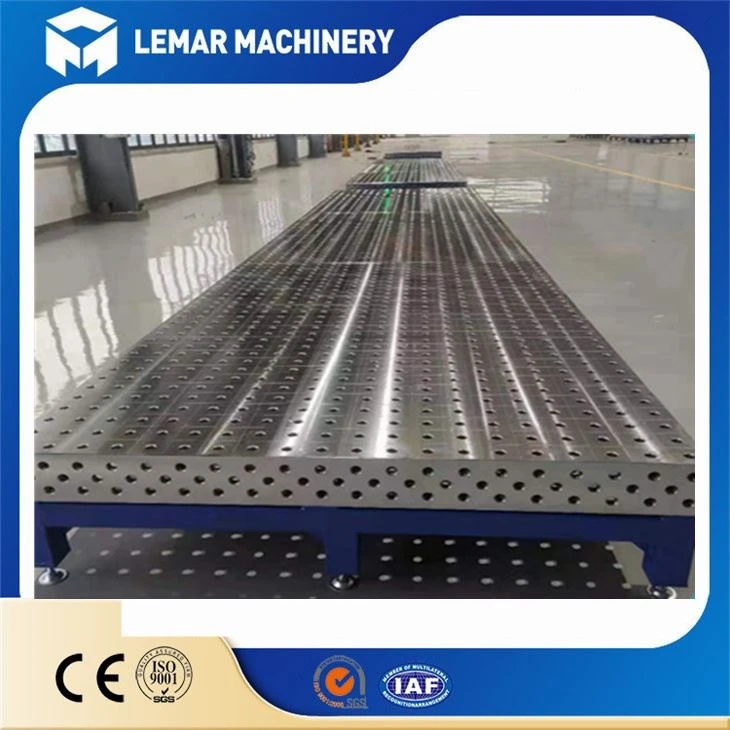

3D Modular Fixture Welding Table
3D Modular Fixture Welding Table is a system composed of a high-precision cast iron or steel platform, a large number of standardized positioning holes, and a set of abundant modular fixture components.
Whatsapp Phone Number
Evasummer@lemarmetal.com
Products parameters
2D WELDING TABLE
3D WELDING TABLE
Products Specification
Main Components
Of 3D Modular Fixture Welding Table
Workbench Body:
Material: Usually made of high-strength gray cast iron (HT250-300) or stress-relieved steel. Cast iron has good shock absorption properties, which can effectively absorb welding stress and reduce deformation.
Tabletop: Covered with precision-machined holes arranged at standard intervals (commonly 100mm, 50mm, or even 25mm). The most well-known systems are Bluco's Ø28mm grid hole system and HALDER's MULTIFIX Ø16mm system.
Precision: The flatness of the tabletop, the dimensional accuracy of the holes, the accuracy of hole spacing, and perpendicularity are all very high (usually with tolerances within a few hundredths of a millimeter), which is the basis for the precision of the entire system.
Modular Fixture Components:
Basic Components: Bases with locating pins of standard diameters (such as Ø28mm or Ø16mm), which serve as the installation interface for all components.
Locating Components: Locating pins of various specifications, locating stops, V-blocks (for cylindrical workpieces), flat stops, etc., used to determine the position of the workpiece.
Clamping Components: Quick clamps, screw presses, lever-type clamps, etc., used to firmly fix the workpiece against the locating components.
Supporting Components: Support blocks, support columns, angle blocks, universal clamps of various heights, used to support the workpiece from below, the side, or any angle.
Connecting Components: Long pins, connecting plates, etc., used to combine multiple components together.
Accessories:
Toolbox: Used to classify and store a large number of fixture components for easy management and access.
Scriber, dial indicator base: Used for measurement and alignment.
Extension legs/brackets: Used to increase the height of the workbench or adjust the level.
3D Modular Fixture Welding Table is more than just a "table"; it is a complete workholding fixture system solution. It represents a transformation from the "traditional, experience-based, and inefficient" welding preparation mode to a "modern, standardized, and efficient" production mode. Although the initial investment is relatively high, the efficiency improvement, quality assurance, and long-term cost savings it brings make it an indispensable core equipment in modern high-end manufacturing and welding workshops.
