3D D28 Welding Table With Clamps
We are always at your service when you need
Wuxi Lemar Machinery Equipments Co., Ltd. is a high-tech enterprise specializing in automated welding equipment and H-beam equipment. Our company has developed a series of professional equipment such as CNC cutting equipment, Beveling equipment, welding equipment, etc.
We have many years of experience in producing welding equipment, and our products are exported to the United States, Europe, and the Middle East.Our 3D welding platform has higher precision, smooth inner holes without burrs, and special nitriding treatment makes welding slag easier to clean.
services we offer
Product repair service
scheduled maintenance service
installation instruction service
programming instruction
Core technologies and applications
| Technical Feature | Description |
| Tabletop Structure |

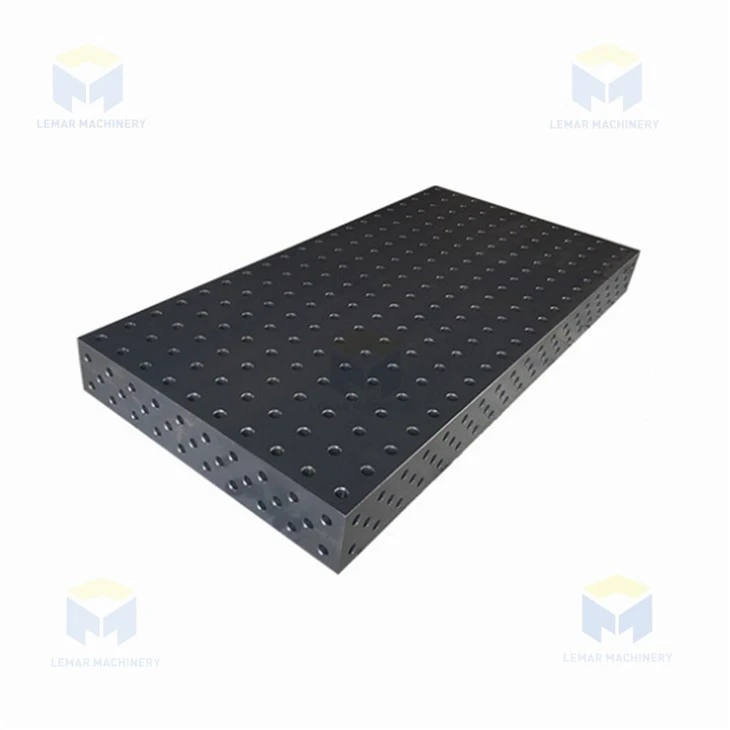

D28 standard dimensions (e.g., 1200×800×200mm), thickness ≥20mm, pre-installed matrix threaded holes (M16/M18). |

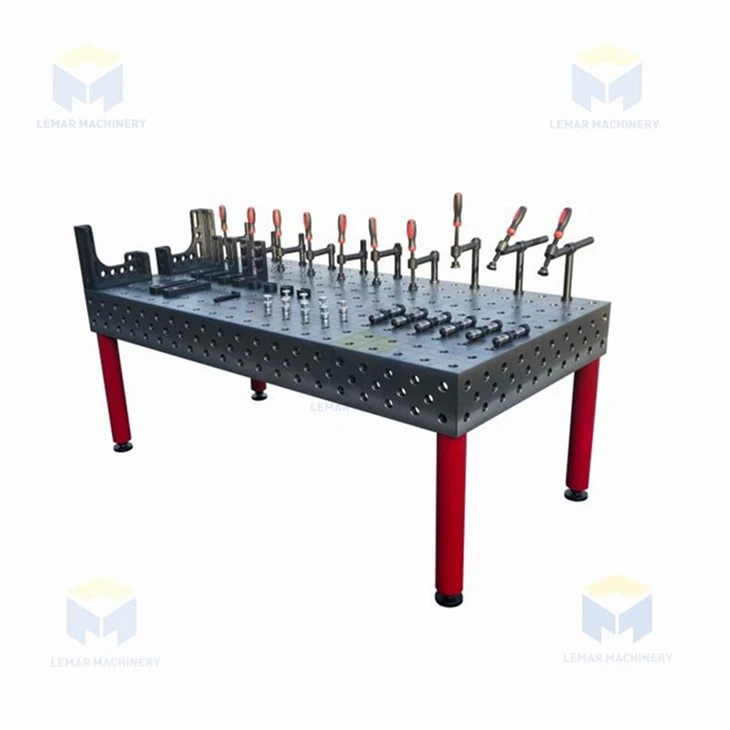

| Clamping System | Supports quick-clamping 3D-adjustable fixtures (e.g., universal ball-joint clamps, magnetic clamps). |
| Compatibility | Compatible with expansion modules (angle adjustment blocks, V-groove blocks, etc.). |
| Typical Applications |
Automotive sheet metal welding; mold manufacturing; aerospace component assembly; precision welding fields. |
Use and maintenance guidelines
Avoid overload: the single load-bearing point is recommended to be less than 500kg to prevent deformation of the table.
Anti-rust measures: clean the slag in time after welding, and spray high temperature resistant anti-rust oil regularly.
Fixture maintenance: check the fixture thread wear regularly, use graphite lubricant to reduce friction.
Common problems and solutions
|
Issue |
Cause |
Solution |
|
Clamp Loosening |
Thread wear or insufficient tightening |
Replace clamp screw; secure with a torque wrench (recommended: 50-70Nm). |
|
Tabletop Thermal Deformation |
Prolonged localized high- temperature welding |
Install water-cooled plates or ceramic heat shields to disperse heat. |
|
Reduced Positioning Accuracy |
Carbon buildup in holes or clamp misalignment |
Clean holes with a wire brush; recalibrate using a laser calibrator (accuracy ≤0.1mm). |
