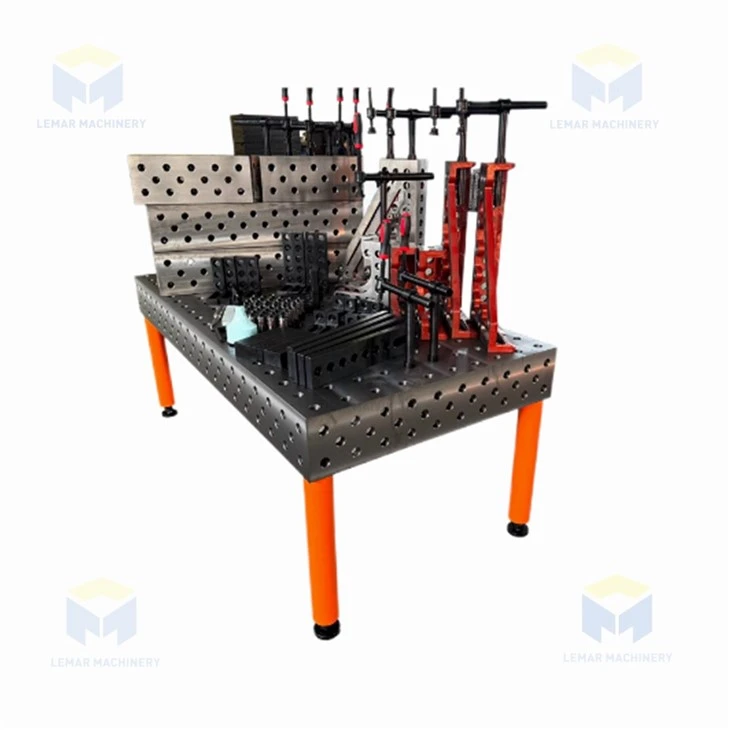

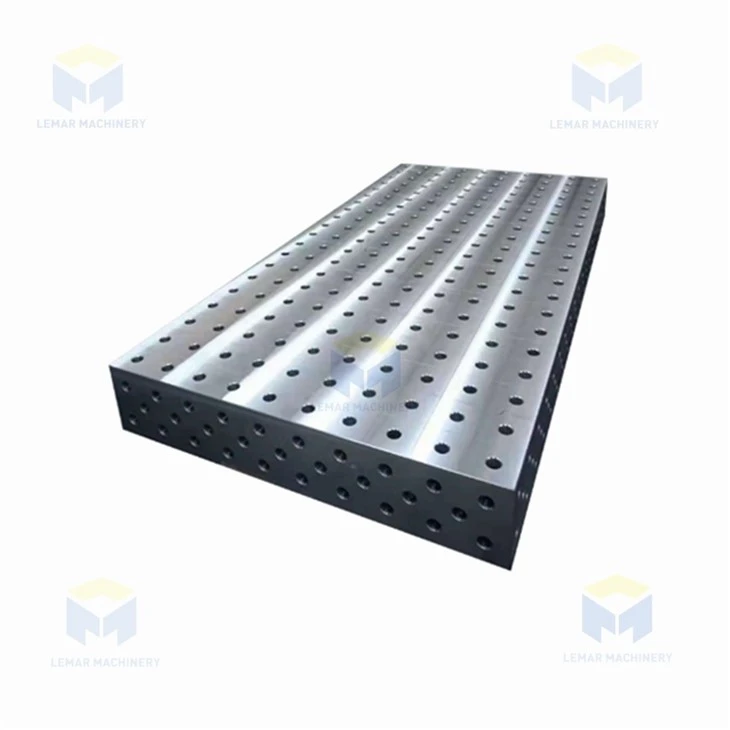

3D Welding Table 2000*1500*100

Introduction

A modular, high-precision welding assembly stage, through the table regular distribution of standard holes (such as D28, D16 series) and positioning slot, with special fixture, can be quickly positioned and fixed workpiece in three-dimensional space, to achieve the precise welding of complex structures.

Size:

Length × Width × Height (or thickness): 1500mm × 2000mm ×100mm.

Overall height: Generally, the height of the welding table is between 800 and 1000 mm.

Hole size:16mm, Hole space:50mm.

Material:High strength alloy steel (e. g. Q355),wear resistance, deformation resistance, surface hardening treatment (HRC 45-50).
