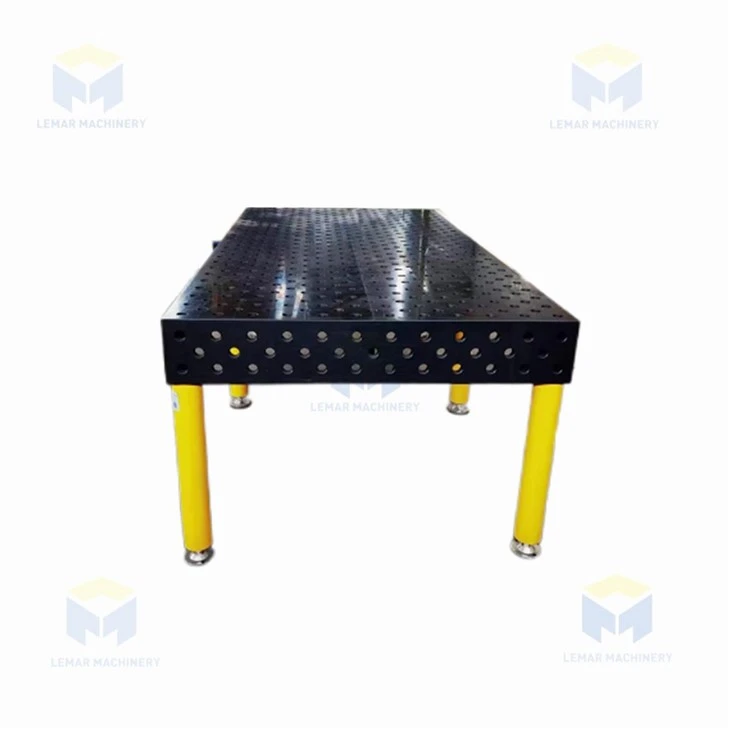

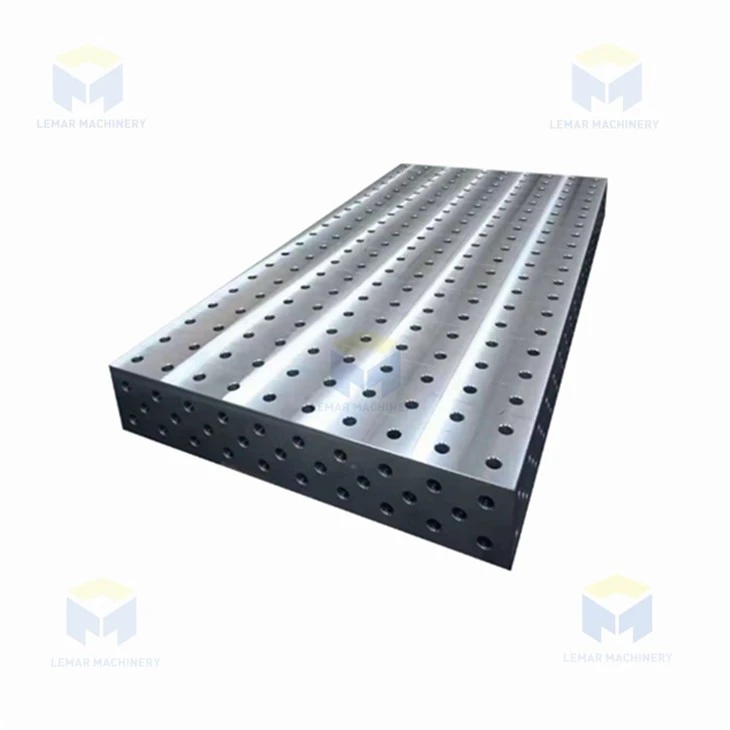

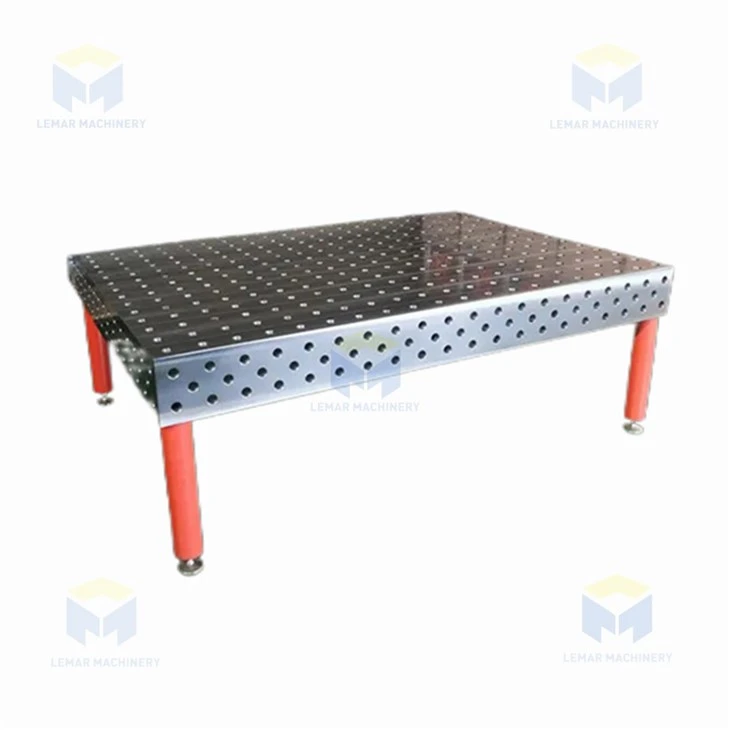

78"*39" 3D Welding Table
Introduction
Countertop Size: 78 "× 39" (1980 × 990mm)
Typical Height: 800-900mm (Customizable)
Material:
Countertop: High Strength Steel Plate (Q355/Stainless Steel), Thickness 10-30mm (Regular 25mm)
Frame: Square Steel/I-beam Welded, Surface Anti-rust Treatment (Painted/Galvanized)
Bearing Capacity: Static Bearing 2-5 tons (25mm thick countertop), Dynamic Load to be reduced to 30% -50%
Products Parameters
Products Specification
unique advantage
Accuracy Guarantee: The flatness of the countertop is less than or equal to 0.2mm/m to ensure welding/assembly tolerance control.
High Temperature Resistance: The countertop is sprayed with a ceramic coating resistant to welding slag to extend the service life.
Fast Switching: The modular fixture supports tooling reorganization within 5 minutes to improve efficiency.
application scenario
Complex structure welding: Automobile chassis, steel structure frame and other workpieces that need to be positioned from multiple angles.
Small batch production: Flexible tooling adapts to the needs of multiple varieties and small batch orders.
Teaching/R & D: University laboratories or corporate R & D centers verify welding processes.
