78"*59" 3D Welding Table
Introduction
Size:
78 inches × 59 inches ≈ 2000mm × 1500mm (Common standard size for medium and large welding tables in the industry).
The countertop thickness is usually 20-30mm to ensure high load-bearing capacity and anti-deformation performance.
Hole system specifications:
Aperture: Commonly 28mm (D28 standard) or 16/22mm (light platform). Confirmation is required according to the specific model.
Hole spacing: mostly in a grid layout of 50mm×50mm or 100mm×100mm, supporting rapid positioning.
Products Parameters
| Parameters | Typical value/option | Remarks |
| Countertop size | 78"×59" (2000×1500mm) |
Need to match the maximum workpiece size with a 20% margin. |
| Aperture | 28mm/16mm/22mm |
D28 is an industry common standard, D28 has strong compatibility. |
| Hole spacing | 50mm/100mm |
High-density hole system provides more flexible positioning. |
| Material | Q235 carbon steel/Q355 alloy steel/stainless steel | Stainless steel is suitable for corrosive environments. |
| Surface treatment | Galvanized / plastic sprayed / blackened |
Rust-proof, wear-resistant and high temperature resistant |
| Bearing capacity | 2000-5000kg | Reserve a safety margin. |
| Accessory compatibility | Fixture type (magnetic/mechanical) | Extension module affects functional scalability and cost. |

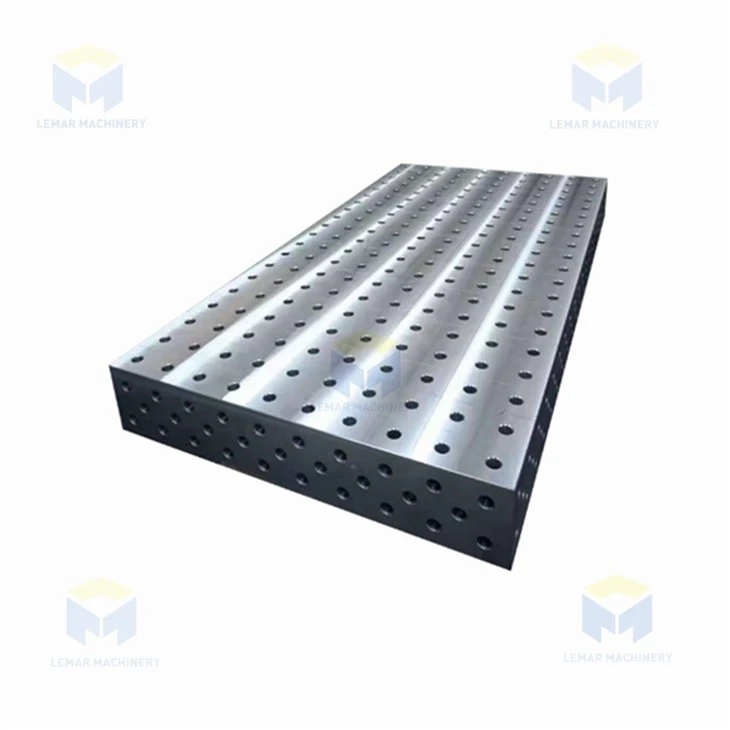

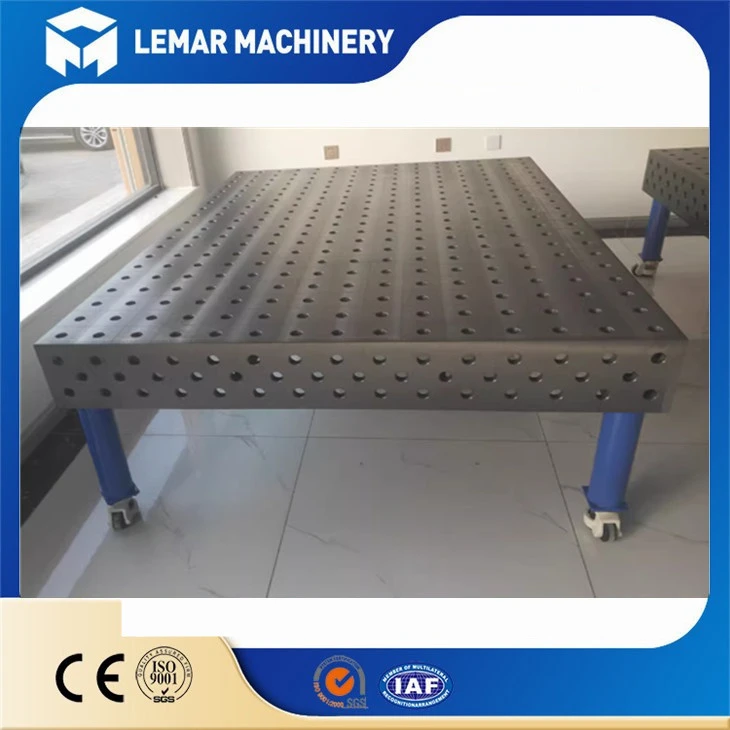

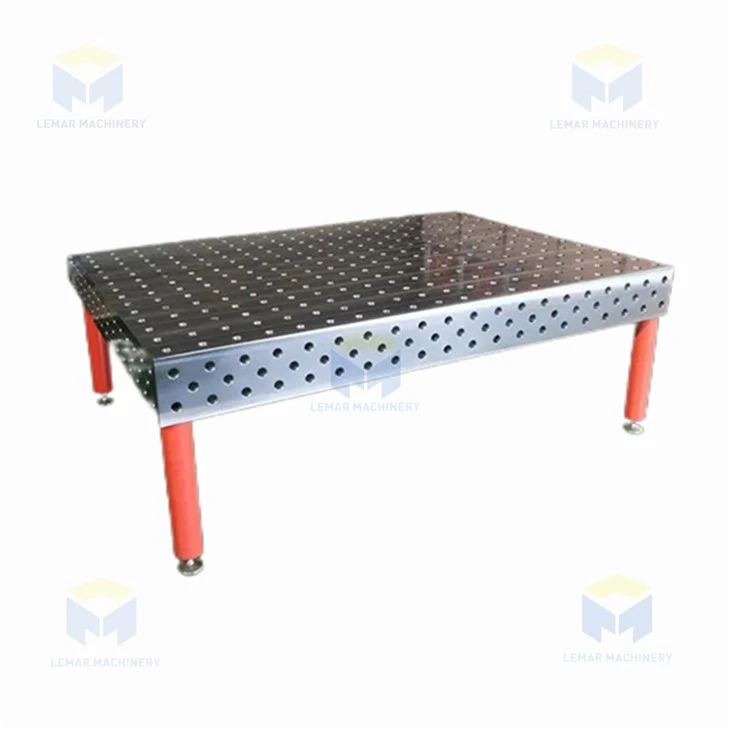

Products Display
Products Features
