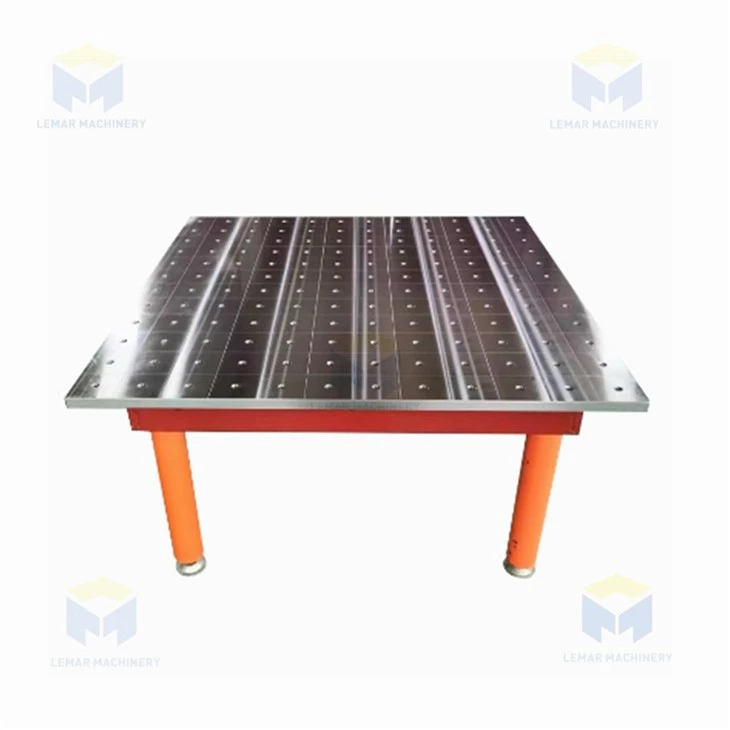

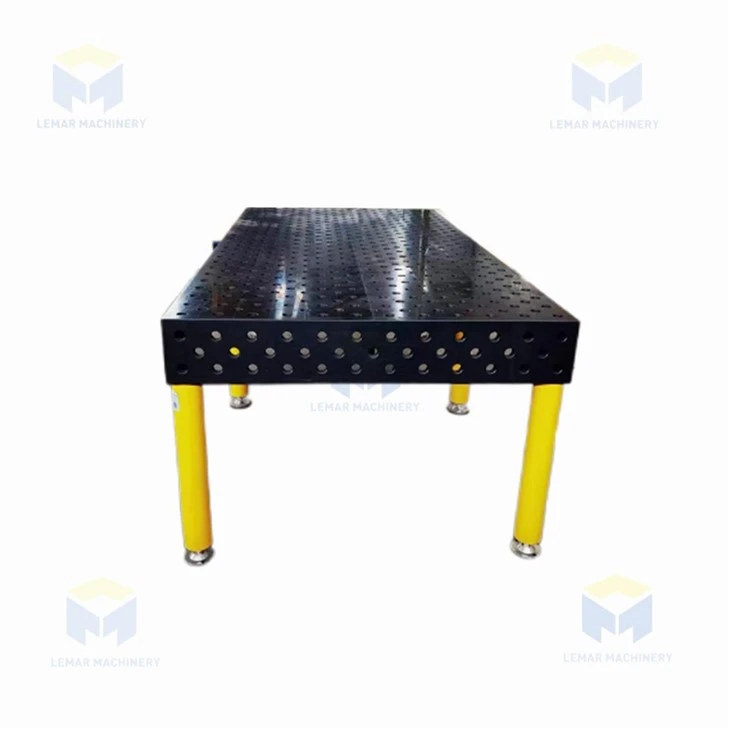

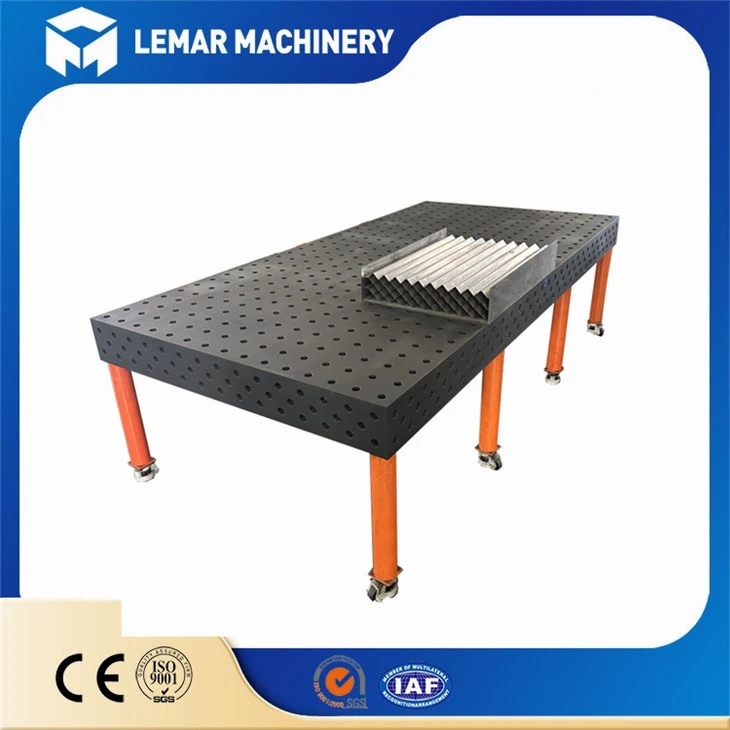

Arcflat Welding Fixture Table
Introduction
Arcflat Welding Fixture Table is a modular tooling platform specially designed for the high-precision welding process. Through the rigid structure, adjustable fixture and standardized interface, the rapid positioning, fixation and repeated operation of the workpiece is realized. Its core goal is to improve the welding quality, reduce the manual error, and adapt to the flexible production demand of multiple varieties and small batches.
Key functional features:
Accurate positioning: equipped with a scale, positioning pin or laser-assisted alignment system, the tolerance can be controlled within ± 0.1mm.
High temperature resistance and deformation resistance: adopt special alloy or heat treatment process, withstand arc welding, laser welding and other high temperature environment.
Modular design: support rapid replacement of fixture, extended countertop, adapt to different sizes and shapes of the workpiece.
Compatible automation: can integrate welding robots, sensors and intelligent control system to achieve unmanned production.
Products Parameters
Products Specification
Major structure
Countertop design

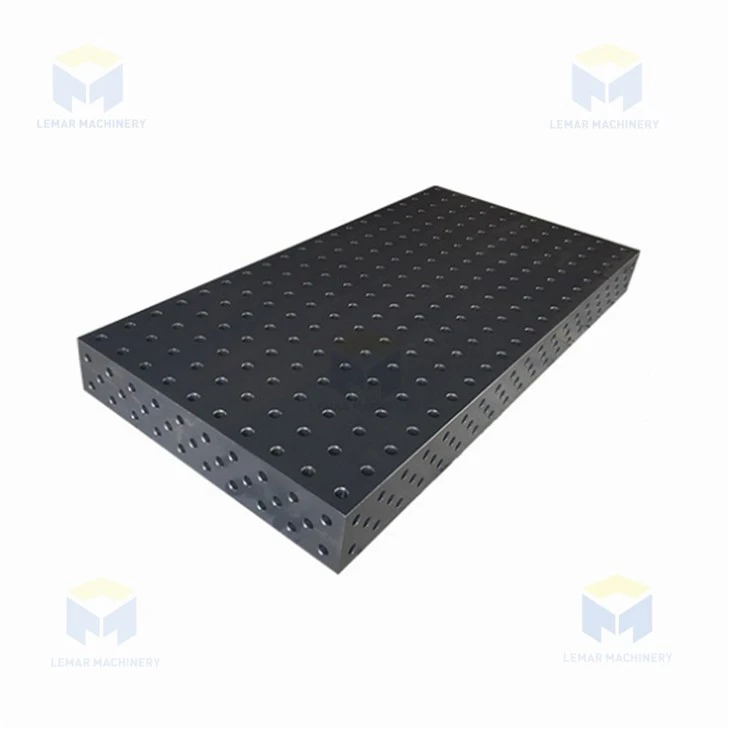

Honeycomb mesh table: there is evenly distributed threaded holes on Arcflat Welding Fixture Table for free combination of clamps.
Multi-layer composite structure:
Surface layer is wear-resistant steel plate, the middle layer is shock absorption layer, and the bottom layer is strengthening frame to enhance the overall rigidity.
Support frame
Arcflat Welding Fixture Table is made of high strength steel or cast iron, ensuring a static load capacity (usually up to 1-5 tons).
The anchor bolt adjusts the function to accommodate the uneven ground.
Products application
