Product Features

Specification about welding table

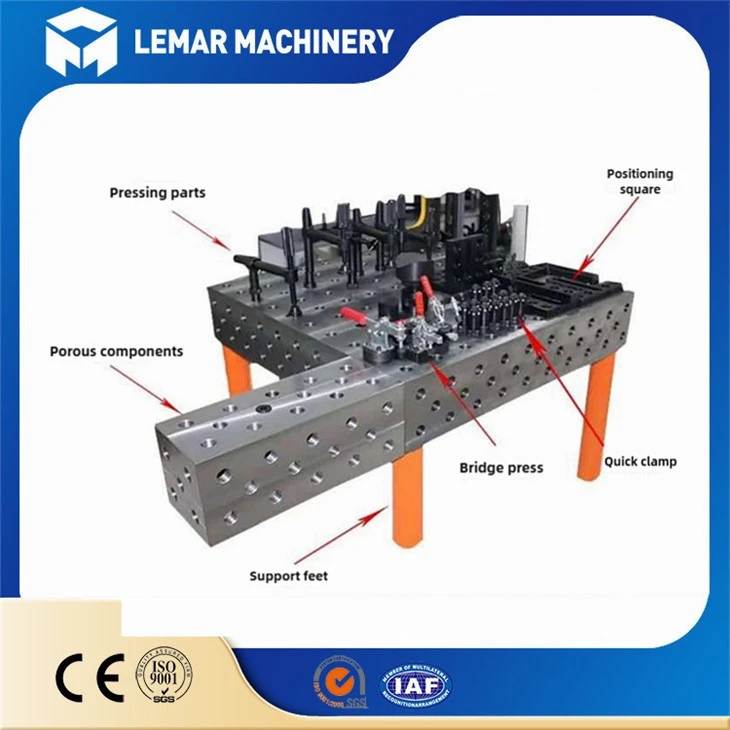

At work, Modular Steel Welding Table can be assembled according to the size and shape of the workpiece. The work surface on the platform has a number of working faces, each with a high precision hole system for installing and positioning various functional modules and accessories ‌.

Since all accessories are pre-fabricated, users can combine and adjust according to the needs of the product, so as to achieve fast positioning and clamping function ‌.

Learn more about customlzatlon >>

Products Parameters

Welding Jig Table

Products Introduce

Our Projects

Difference between 3D Modular Steel Welding Tables and 2D Modular Steel Welding Tables

First

3D: There are five working faces, each evenly distributed with round holes (diameter may be 16mm or 28mm), and surrounding sides also have working faces, high usability.

2D: Usually a flat structure, with only one working face. The large surface of the platform has two directions, and surrounding sides can be used for vertical installation, but overall thickness and stereo are not as good as 3D platform.

Second

3D :Excellent combination ability in 3D space, suitable for handling large, complex shapes of the workpiece.Users can quickly splice different requirements of tooling according to needs, easy to operate.

2D:Mainly used for planar or 2D shape of workpiece welding.With use of fixture, can achieve automatic, high-precision welding operations.

Third

3D: Due to its stereostructure and modular design, it may be necessary to maintain high accuracy and stability in multiple directions. It is suitable for high accuracy requirements of workpiece.

2D: Maintain high accuracy and stability mainly in the plane direction. Through advanced computer control technology, can achieve high precision, high stability welding operation.
