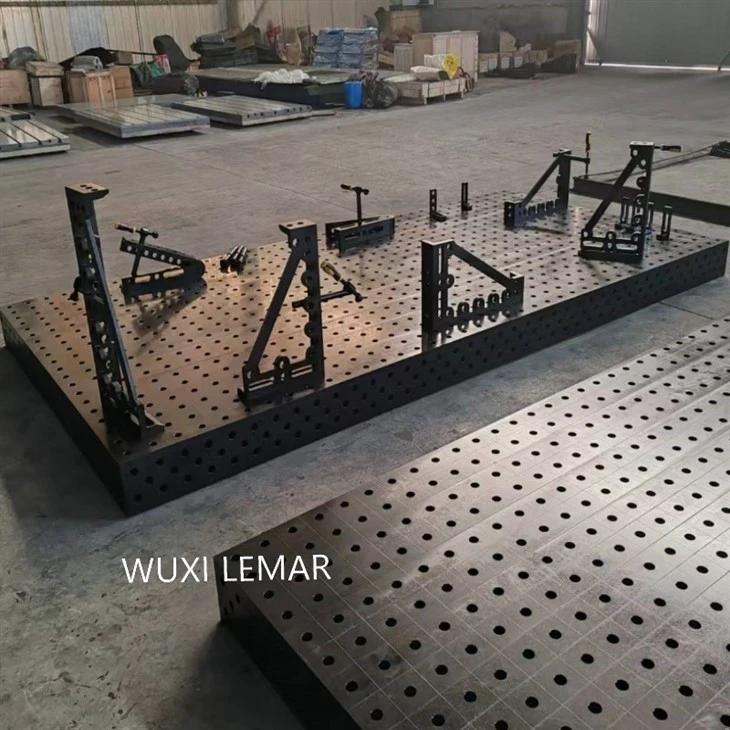

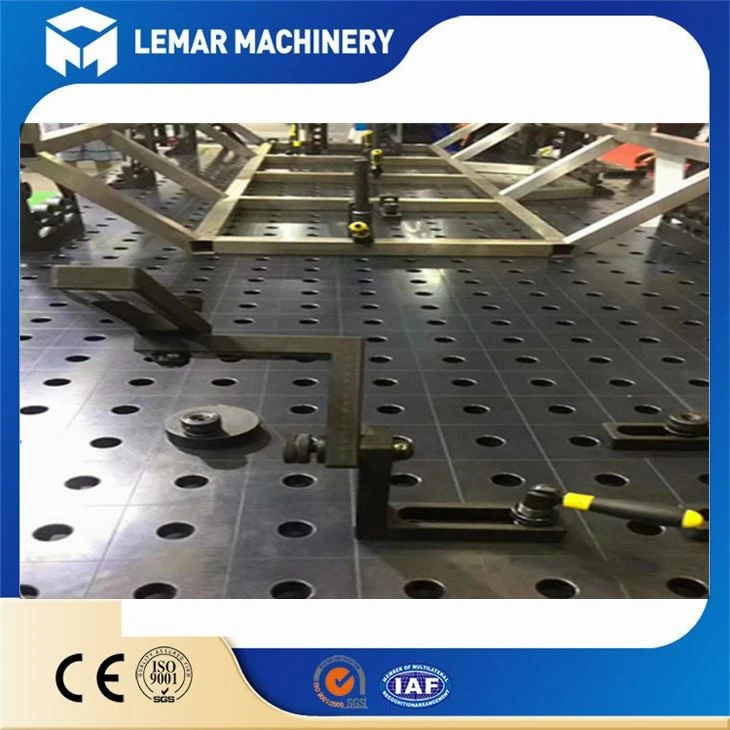

Nitriding Steel 3D Flexible Modular Welding Table
Introduction
3D flexible modular welding table is a revolutionary welding fixture system. Through standardized module design and a three - dimensional adjustable structure, it provides a highly flexible welding solution for modern manufacturing. This system completely changes the limitations of the single and fixed nature of traditional welding fixtures, and realizes a flexible production mode of "one system, multiple uses".
Products Parameters
Products Specification
Main application scenarios
Precision welding: aerospace, automobile manufacturing and other high-demand fields.
Fixture assembly: as a basic platform to quickly build a positioning system.
Detection and measurement: used in conjunction with equipment such as three-coordinate measuring machines.
Teaching and prototype development: suitable for small batch and multi-variety R&D needs.
Durability:The service life of nitriding steel is 3-5 times that of ordinary carbon steel, reducing the frequency of replacement.
Flexibility :The modular design can adapt to more than 99% of workpiece types without repeated investment in tooling.
Efficiency :Improvement Quickly switch tooling, shorten preparation time, and improve production efficiency.
Cost-effectiveness:Under long-term use, the maintenance cost is lower than that of traditional custom tooling.
Selection suggestions
Hole spacing selection: Common 28mm (European standard) or 50mm (heavy-duty tooling), select according to the size of the workpiece.
Dimensions: The table size must match the maximum workpiece size, and space for the fixture must be reserved.
Additional functions: such as whether coolant channels, magnetic adsorption, etc. are required.
