3D Welding Table Supporting Angle Welding Fixture
Product Description
Lemar 3D Welding Table Supporting Angle Welding Fixture is a key functional component of the modular welding tooling system.
It is specifically designed for multi - angle welding positioning and can be used in conjunction with standard D28/D16 hole - series welding platforms. It enables precise fixation and rapid adjustment of workpieces at any angle within the range of 0 - 180°.
Products Parameters

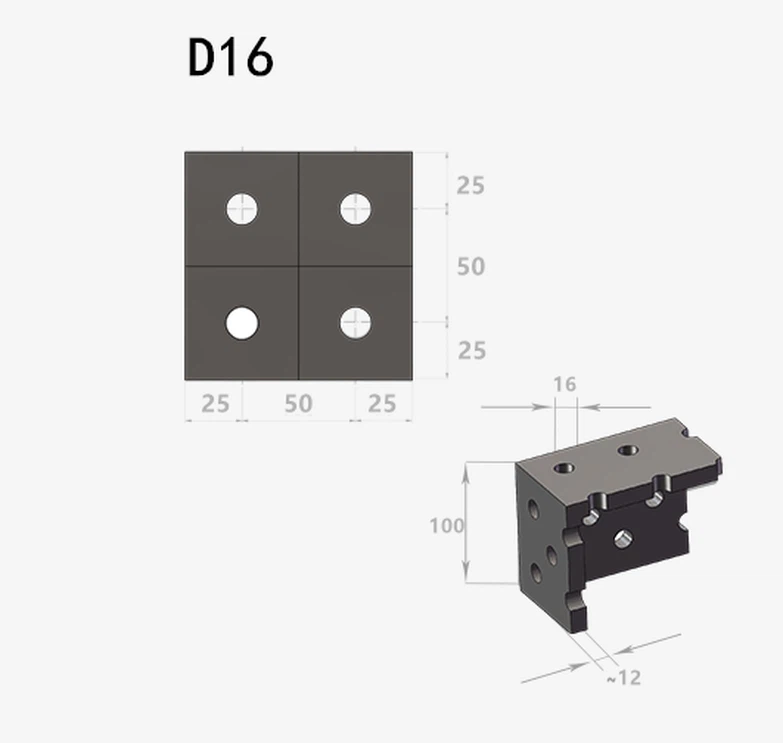

| Name D16 system | Spec. | Weight |
| Supporting angle | 200x140x50(L) | 2 |
| 200x140x50(R) | 2 | |
| 400x190x50(L) | 4.5 | |
| 400x190x50(R) | 4.5 | |
| 600x190x50(L) | 6 | |
| 600x190x50(R) | 6 |
| Name D28 system | Spec. | Weight |
| Support angle iron-casting (left) | 300x275x100(L) | 13 |
| Support angle iron-casting (right) | 300x275x100(R) | 13 |
| Support angle iron-casting (left) | 600x375x100(L) | 23 |
| Support angle iron-casting (right) | 600x375x100(R) | 23 |
| Support angle iron-casting (left) | 800x375x100(L) | 29 |
| Support angle iron-casting (right) | 800x375x100(R) | 29 |
product Specification
that's our Product
3D Welding Table Supporting Angle Welding Fixture
Typical application scenarios
1. Welding of pipe intersecting lines
Achieve precise positioning of 45° inclined nozzles
Complete the assembly of spatial Y-shaped pipe joints
2. Assembly of frame diagonal braces
Quickly set the angle of 60° diagonal braces
Ensure the consistency of truss node welding
3. Multi-pass welding of special-shaped parts
Automatically change the welding inclination angle (flat welding → vertical welding → overhead welding)
Reduce the number of workpiece turns
Design features
• High-strength steel: Resistant to impact and wear, suitable for the harsh workshop environment.
• Precision hole processing: Hole position tolerance is ±0.1mm to ensure positioning accuracy.
• Multi-functional installation: Can be fixed horizontally or vertically, supporting bolt or welding connections.
• Anti-rust treatment: The surface is galvanized or sprayed to extend the service life.
Enhance Your Welding Capabilities With Our 3D Welding Table Supporting Angle Welding Fixture!
