Standard Legs Of 3D Welding Table
"Standard Legs Of 3D Welding Table" refers to standardized support structures specifically designed for 3D welding cast iron platforms. They are firmly connected to the bottom of the platform through precise mechanical interfaces, together forming a stable and level welding workbench.
These legs are not ordinary table legs; they are designed to handle heavy workpieces, welding stresses, and ensure high-precision positioning.
Products parameters
|
Standard support leg |
Wheel support leg |
Square legs spec | |||
|
Spec |
Weight(kg) |
Spec(mm) |
Weight |
Spec(mm) |
Weight |
|
D89*100mm |
2.3 |
D89*200 |
4.7 |
80*80*600 | 10 |
|
D89*150mm |
2.5 |
D89*250 |
4.85 |
Adjustable square leg |
15 |
|
D89*200mm |
2.7 |
D89*300 |
5 |
||
|
D89*250mm |
2.85 |
D89*350 |
5.3 |
||
|
D89*300mm |
3 |
D89*400 |
5.5 |
||
|
D89*350mm |
3.3 |
D89*450 |
5.7 |
||
|
D89*400mm |
3.5 |
D89*500 |
6 |
||
|
D89*450mm |
3.7 |
D89*600 |
6.6 |
||
|
D89*500mm |
4 |
||||
|
D89*600mm |
4.6 |
||||
Products Description
1. Fixed-height outriggers
This is the most basic form, with the height of the outriggers not adjustable.
• Characteristics: Simple structure, the strongest rigidity, and relatively low cost.
• Application scenarios: Fixed workstations where the ground levelness is very good, and the platform does not need to be moved or adjusted in height after installation.
2. Adjustable-height outriggers (Lemar standard type)
This is the most widely used type, which realizes the horizontal calibration of the platform by integrating an adjustment mechanism at the bottom or inside of the outriggers.
• Adjustment methods:
◦ Bolt adjustment: There is a large adjusting bolt (anchor bolt) at the bottom of the outrigger. By rotating the bolt, the height of the outrigger can be finely adjusted, thereby accurately adjusting the level of the platform. This is the most classic and reliable way.
◦ Wedge block adjustment: In some designs, fine adjustment is achieved by tapping the wedge block, which is also used for leveling.
• Characteristics: Essential function. It can compensate for ground unevenness and ensure the installation level of the platform, which is the basis for ensuring welding accuracy.
• Application scenarios: Almost all installation scenarios, especially workshops with slightly uneven ground.

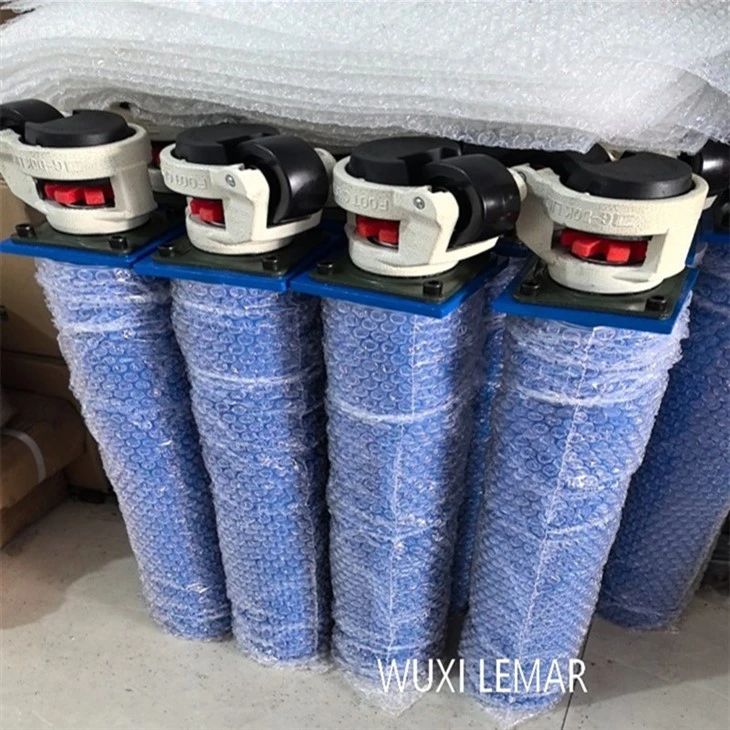

3. Outriggers with moving function
To meet the flexible layout of the production line, some outriggers will be integrated with moving devices.
• Structure: Usually, universal wheels or casters are installed at the bottom of one outrigger, while other outriggers are equipped with directional wheels or lifting devices.
• Working modes:
◦ Moving mode: The entire platform is lifted by a lifting mechanism or a screw, so that the casters touch the ground, and it can be moved easily.
◦ Working mode: Lower the platform so that the solid outrigger base (or leveling bolt) is firmly pressed on the ground. At this time, the casters are suspended, and the platform is as stable as a fixed installation, effectively eliminating vibration and shaking.
• Characteristics: Greatly enhance the flexibility of the platform, suitable for workshops that need to frequently adjust the layout of workstations.
• Application scenarios: Welding of small and medium-sized workpieces, and flexible production units with multiple varieties and small batches.
Products Choosing
Why are Standard Legs Of 3D Welding Table so important?
1. The foundation for ensuring platform accuracy: If the outriggers are unstable or not level, no matter how precise the platform itself is, the flatness of its working surface and the positional accuracy of the hole system will be lost. The accuracy of the platform is built on a stable outrigger system.
2. Preventing welding deformation: Stable support can effectively suppress the slight deformation that may occur in workpieces and platforms under welding heat input.
3. The key to safety: Unstable support may cause heavy platforms to overturn or sink, resulting in serious safety accidents. Standard outriggers have undergone rigorous mechanical calculations and tests to ensure operational safety.
4. Enabling flexible production: Outriggers with mobile functions allow expensive 3D welding platforms to become "mobile workstations", which can quickly switch between different production tasks and improve equipment utilization.
FAQ
FAQ
01.What's the lead time for orders?
02.What are the specific spacing of the positioning holes and the repeat positioning accuracy of the platform?
03.What range should the deformation be controlled within during load-bearing?
04.What documents do you provide for export?
05. How do I place an order?
06.Would it be possible for us to visit your factory ?
Products Certification
Customer Review
Summary
Why Choose Us?
◆Other Products
◆OEM/ODM capabilities
◆Competitive pricing & bulk discounts
◆Fast shipping & customs clearance support
◆Turnkey project solutions
Standard Legs Of 3D Welding Table are indispensable basic support and precision guarantee units in 3D welding systems. They elevate the precision cast iron platform from "a piece of iron plate" to a complete machine tool that can be put into production. When making a selection, it is necessary to choose the appropriate type of legs based on the size of the platform, the maximum load capacity, and the workshop environment (floor conditions, whether mobility is required).
