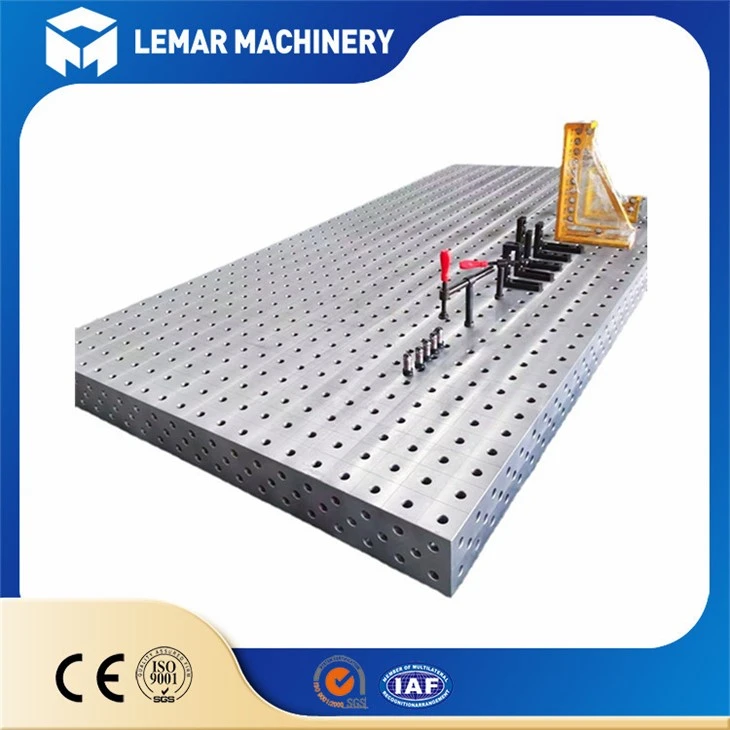

3D Welding Table With Clamping System

3D Welding Table With Clamping System connected and changed arbitrarily according to the shape of the workpiece,it has a worktop with D16 system bores in a 50 mm x 50 mm grid resulting in greater clamping options as compared to 100mm x 100mm grid.

Material: Cast iron or Steel

3D Welding Table With Clamping System is usually made of cast iron or cast steel, which has high hardness, is not easy to wear and easy to maintain.

Aperture:φ16mm

Used to clean some iron slag and welding waste during riveting and welding.

T-slot:

There are usually T-shaped slots on the working surface of the 16-hole welding platform for fixing welding components.

Flatness: 0.05/1000mm

High precision ensures stability and accuracy during use.

Verticality: 0.05/200mm

The perpendicularity of the sides and the upper surface improves the usability of the platform.

Working surface roughness: 3.2μm

This level of sophistication allows the platform to better hold and position workpieces during use.

Hole spacing: 50±0.01mm

This allows the platform to better adapt to workpieces of various sizes during use.

Anti-spatter and non-stick welding slag:

Improves the service life and work efficiency of the platform.

Modular design:

3D Welding Table With Clamping System adopts a modular design, which can realize any combination of 3D vertical and horizontal directions, and can be used repeatedly. The precise positioning of fixtures, expansion kits and clamping kits greatly improves the flexibility and utilization of the platform.

Wear resistance:

The wear resistance of the 3D welding platform determines its service life to a certain extent. In order to extend the service life of the platform, the platform is usually nitrided.
