Product Brief

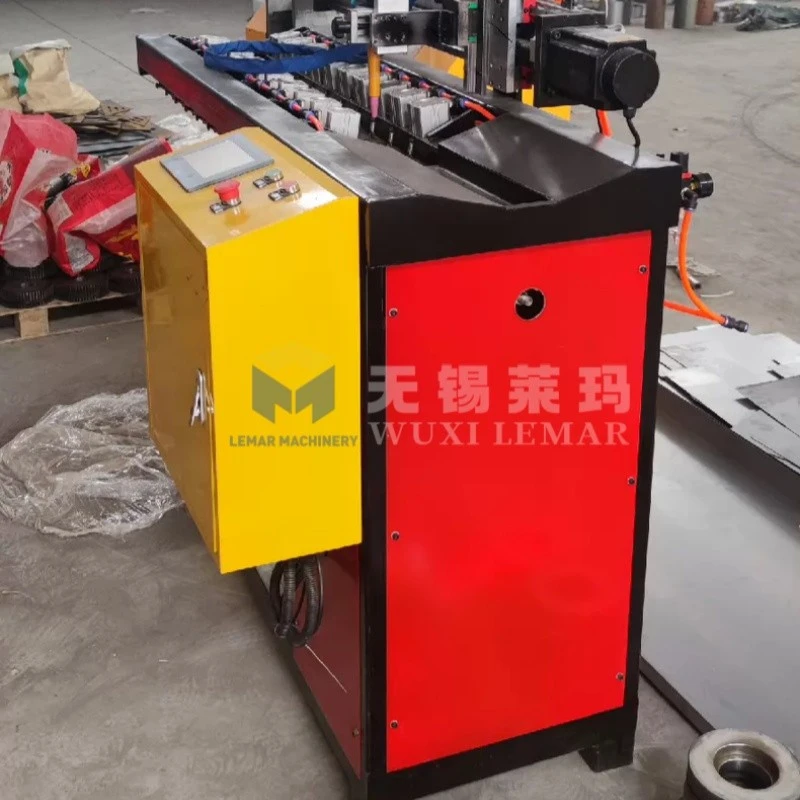

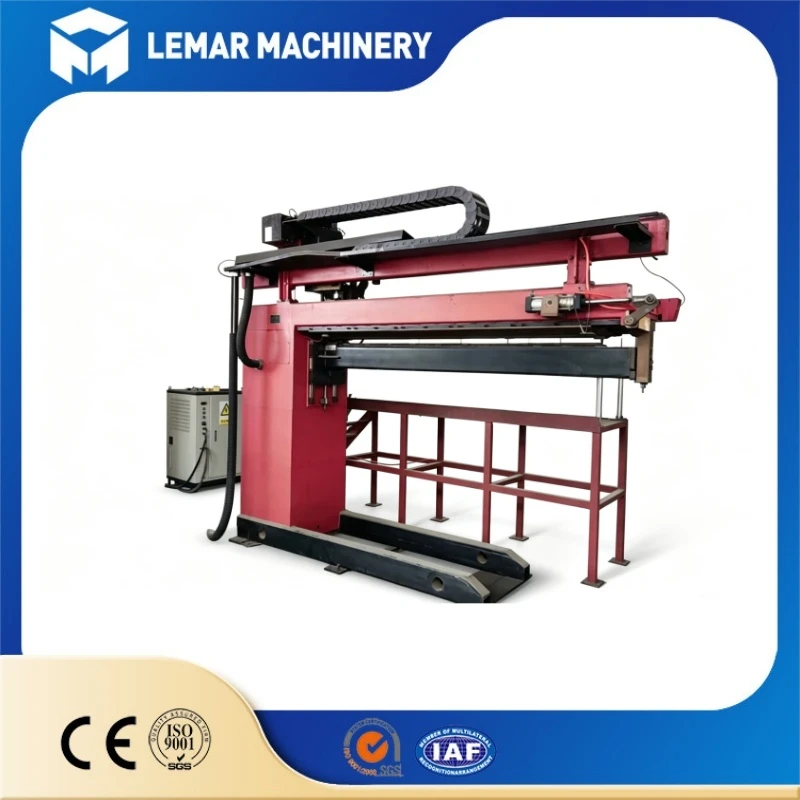

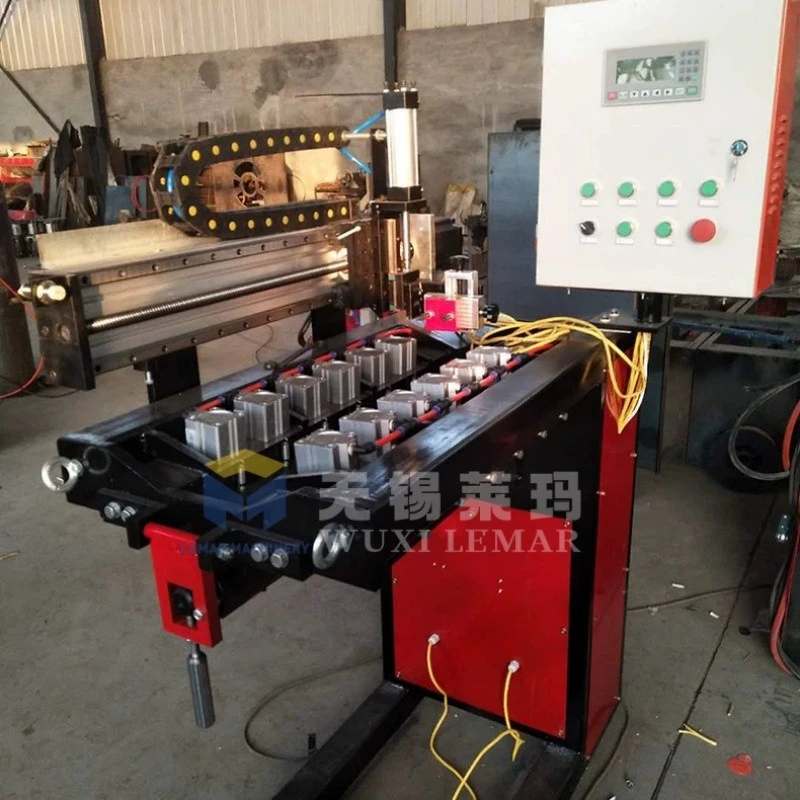

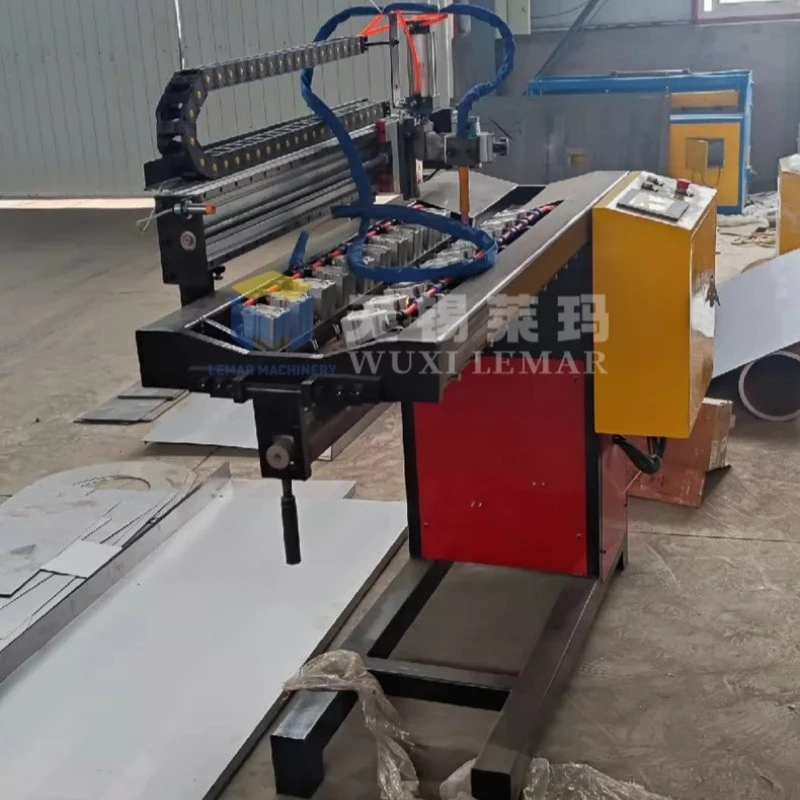

This 2000mm Carbon Steel Longitudinal Welder is built for high‑efficiency longitudinal butt welding of carbon steel sheets and cylindrical shells.
Equipped with heavy‑duty welded frame, pneumatic clamping and PLC touch‑screen control, it ensures stable repeatable straight‑seam welding for mass production of carbon steel tanks, pressure vessels and pipe shells.
Compatible with MIG/MAG process, it minimizes weld deformation and guarantees consistent weld quality.
Core Features
- Professional carbon‑steel‑oriented welding structure, optimized clamping pressure for carbon steel sheet to avoid workpiece shifting during long‑seam welding
- 2000mm maximum effective welding length, suitable for long carbon steel cylinder and tank shell longitudinal seam fabrication
- Pneumatic finger clamping design, fast workpiece positioning and locking, shorten fixture changing time for batch carbon steel production
- PLC & touch‑screen control system, welding speed, torch position and working parameters can be stored and recalled
- Servo‑driven torch travelling system, stable running, guarantee straight and uniform weld bead on carbon steel parts
- Reserved interface for matching different MIG/MAG welding power source, flexible configuration for varied carbon steel thickness
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | 2000mm Carbon Steel Longitudinal Welder |
| Effective Welding Length | 2000mm |
| Applicable Material | Carbon steel / mild steel sheet |
| Welding Thickness Range | 0.8‑4.0mm carbon steel |
| Welding Process | MIG / MAG |
| Control System | PLC + Touch Screen |
| Driving Mode | Servo motor drive |
| Welding Speed | 100‑700 mm/min stepless adjustable |
| Clamping Mode | Pneumatic pressing fingers |
| Working Voltage | 380V 3‑Phase 50Hz (customizable) |
| Optional Accessory | Welding power source, seam tracking device |
Application Range
Designed for carbon steel longitudinal seam production of cylindrical products:
- Carbon steel pressure tank and storage tank shell manufacturing
- Carbon steel pipe, barrel and hydraulic oil cylinder production
- Carbon steel ventilation duct and industrial pipeline component welding
- Carbon steel mechanical housing and equipment casing fabrication
- General carbon steel sheet butt joint for metal processing workshops
Optional Configuration
Automatic seam tracking system
Different brand MIG/MAG welding power source
Custom‑modified clamping fixture for special carbon steel workpiece
Local voltage electrical system adjustment for different countries
Product packaging
Company Certificate
Frequently Asked Questions
Q1: What material is this carbon steel longitudinal welder mainly for?
+
-
A1: This machine is primarily designed for carbon steel & mild‑steel longitudinal seam welding, it can also work for partial stainless steel workpieces with power source adjustment.
Q2: What is the maximum welding length of this carbon steel longitudinal welder?
+
-
A2: Standard effective welding length reaches 2000mm, customized length is available upon request.
Q3: Can you supply the matching welding power source together?
+
-
A3: Yes, we can offer complete set including welding power source, or supply machine body only according to your demands.
Q4: Is the machine voltage customizable for our local workshop?
+
-
A4: Sure, we can adjust electrical components to match your local 3‑phase voltage and frequency.
Q5: What after‑sales support can you provide?
+
-
A5: We supply 12‑month warranty, operation manual, test video and remote technical guidance.
