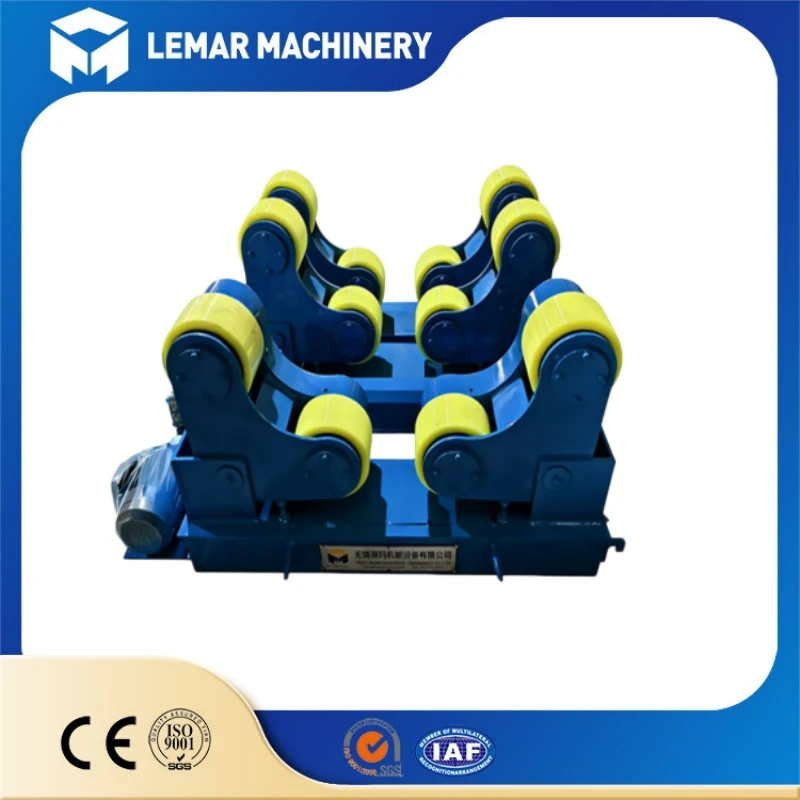

Brief Product Introduction
Main Technical Data
| Item | Specification |
|---|---|
| Rated Bearing Load | 5 Ton |
| Applicable Workpiece Form | Carbon steel pipe, stainless‑steel pipe, alloy pipe, small cylindrical tank |
| Applicable Pipe Diameter Range | Φ250mm‑Φ2800mm |
| Effective Rotating Linear Speed | 6‑60 m/h |
| Roller Quantity | 2‑group rollers |
| Roller Material | Polyurethane |
| Driving Motor Power | 2 × 0.37KW |
| Reducer Type | Cycloid pinwheel reducer |
| Control System | VFD frequency conversion speed control system |
| Operation Mode | Pendant remote manual control |
| Frame Treatment | Welded structure with stress‑relief annealing |
| Working Environment | Indoor workshop normal temperature working condition |
| Power Supply | 380V 50Hz |
Core Functional Highlights
Auto self‑centering roller construction, real‑time angle adjustment for different pipe sizes, cutting setup time and lifting productivity
VFD speed modulation, smooth rotation without shake or slip to guarantee neat circular welding seams
Resilient PU rollers guard pipe outer surface; ideal for stainless‑steel, coated and polished pipe material
Reinforced welded frame after stress‑relief treatment, solid rigidity for non‑stop batch pipe welding tasks
Separate control cabinet plus pendant hand controller, convenient on‑site speed, start‑stop operation
Flexible configuration choices: custom local voltage, steel roller swap, manipulator synchronous linkage available
Target Working Fields
Large-diameter carbon steel pipe circumferential welding
Stainless steel pipe and alloy steel pipe rotary welding processing
Thick-wall pipe and pipeline fittings circular seam welding
Small storage tanks and light-duty pressure vessel welding production
Difference Between Self‑Aligning and Adjustable Welding Turning Rolls
| Comparison Item | Self‑Aligning Type | Adjustable Type |
|---|---|---|
| Adjustment Way | Auto‑swing centering | Manual screw spacing adjustment |
| Workpiece change | Fast, no manual tuning | Need manual readjustment |
| Operation difficulty | Simple | Requires operator adjustment |
| Anti‑offset performance | Good | Depends on manual setting |
| Best‑fit scenario | Frequent diameter changes | Fixed‑spec mass production |
| Cost | Higher | Budget‑friendly |
Company Certificate
Customer feedback
1.We provide one‑year full‑machine warranty, wearing parts are not covered within the warranty scope.
2.Professional online technical support is available for lifetime consultation and fault troubleshooting.
3.Original factory spare parts can be supplied at factory cost when the warranty expires.
4.We offer remote guidance for equipment installation, commissioning and daily operation.
5.Fast reply for your after‑sales questions to minimize production downtime.
Product packaging
Frequently Asked Questions
Q1: Can this Pipe Rotary Welding Rotator handle pipes of different dimensions?
+
-
A1: Yes. Self‑aligning structure automatically accommodates various pipe diameters with no manual tuning.
Q2: Will rollers leave scratches or dents on pipe surface?
+
-
A2: No. High‑elastic PU rollers offer reliable surface protection with no scratch or indent mark.
Q3: Is continuous‑shift batch pipe welding supported?
+
-
A3: Yes. Robust mechanical structure supports long‑duration non‑stop rotary pipe welding.
Q4: Can you adjust voltage to match local power standards?
+
-
A4: Sure, custom voltage & frequency for worldwide markets is available.
Q5: Does rotation stay stable throughout welding cycles?
+
-
A5: Extremely stable. VFD stepless speed control maintains uniform rotation for high‑quality welding seams.
