Working Principle

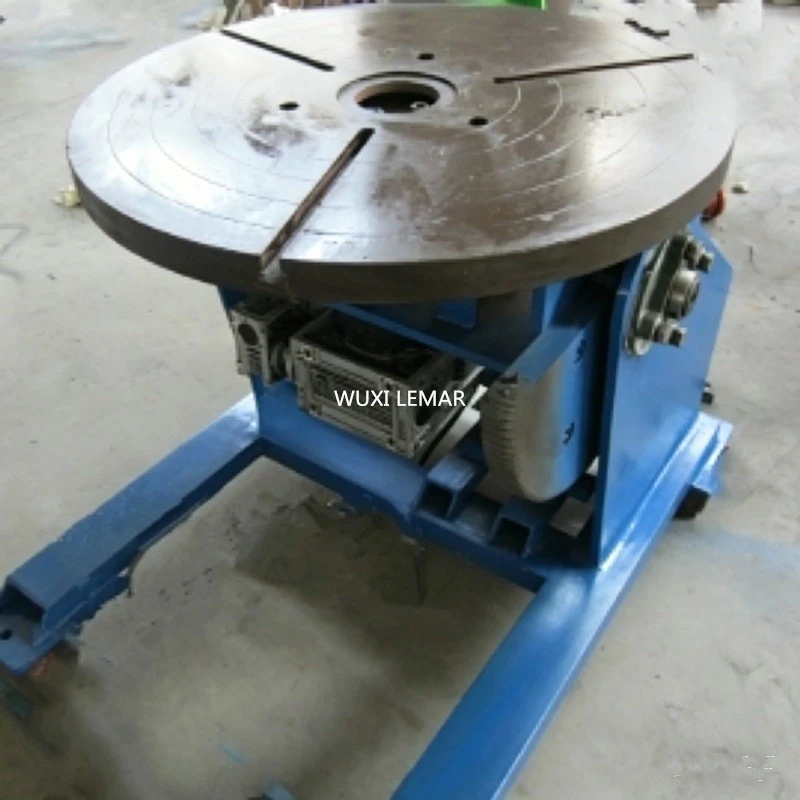

This 600kg welding turntable adopts high-power drive motor paired with heavy-duty worm gear reduction box to output constant large torque, driving large workpieces to rotate at uniform low speed.
The hydraulic tilting assembly lifts and flips the whole turntable smoothly to convert vertical/horizontal welding into flat welding.
PLC system synchronizes rotation speed with welding equipment to eliminate uneven weld bead, welding skip and slag inclusion defects for thick-wall workpieces.
Technical Parameter Table
| Parameter Item参数物品 | Technical Spec技术规格 |
|---|---|
| Model型号 | BWJ-600 |
| Rated Loading Capacity | 600kg |
| Allowable Short-term Overload | 720kg |
| Turntable Diameter | 600mm |
| Rotation Speed Range | 0.05–1.2rpm stepless adjustable |
| Tilting Mode & Angle | Hydraulic drive, 0°–90° self-lock |
| Rotary Motor Power | 1.1kW |
| Tilting Hydraulic Motor Power | 1.5kW |
| Control Mode | PLC control box + handheld remote |
| Input Power | 380V three-phase 50/60Hz |
| Overall Outer Size | 1250×980×1120mm |
| Complete Machine Weight | 480kg |
| Attestation | CE & ISO9001 |
Industrial Application Scope
Pressure Vessel Fabrication
Circular welding of medium-sized storage tanks, chemical barrels and energy storage cylinders

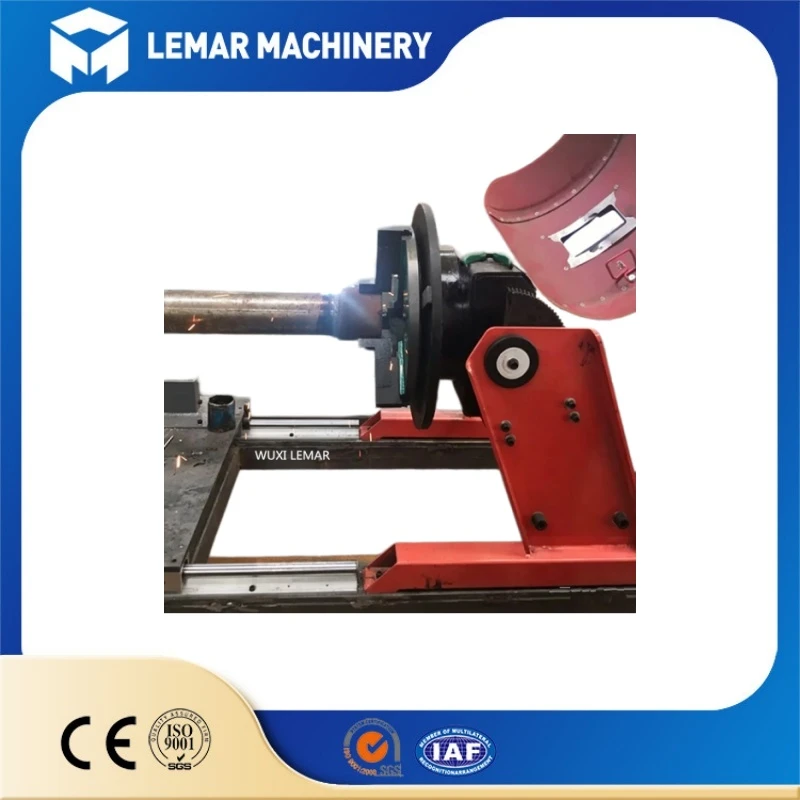

Large Pipe & Pipe Spool Machining
Butt circumferential welding of thick-wall carbon steel and alloy steel pipeline components
Heavy Flange & Shaft Parts Welding
Large diameter flange, valve base and engineering machinery shaft fittings assembly welding
Metal Structure Workshop
Batch processing of wind power accessories, hydraulic cylinder and engineering hardware
Why Choose Our 600kg Welding Positioner
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Factory direct production without middle agent markup, cost-effective heavy welding equipment
Independent heavy load workshop, rich experience manufacturing large welding positioners
Accept full OEM & ODM personalized modification according to workshop production line demands
12-month warranty for core motors, reducers and hydraulic components
Complete overseas after-sales guidance, online technical debugging support
Mass export to Middle East, Southeast Asia, Europe and Latin America heavy industry markets
Standard & Optional Accessories List
| Standard Accessories | Optional Accessories |
|---|---|
| 600kg Welding Positioner Main Body |
4-Jaw Self-centering Chuck |
| Rotary Drive Assembly | Hydraulic Telescopic Tailstock |
| Hydraulic Tilting System |
Automatic Welding Torch Holder |
| PLC Control Box | Touch Screen PLC Control System |
| Handheld Remote Controller |
Wireless Remote Controller |
| Foot Pedal Switch | Pneumatic Quick Clamping Fixture |
| Standard Positioning Fixture |
Welding Fume Extraction Bracket |
| Installation Tool Kit | Anti-vibration Pad |
Product Certification
Products Description
Frequently Asked Questions
Q1: What's the maximum workpiece weight for long-term continuous production?
+
-
A: The standard rated load is 600kg; long-time working shall not exceed rated load to extend machine service life.
Q2: Can this positioner match automatic welding machines?
+
-
A: Yes, PLC control system supports signal linkage with MIG/TIG automatic welders to realize unmanned circular welding.
Q3: Is hydraulic tilting stable for heavy workpieces?
+
-
A: Double hydraulic cylinder with mechanical self-locking dual protection, no tilt slip under full load.
Q4: Can we customize three-phase 415V power supply?
+
-
A: Custom voltage, turntable size and auxiliary fixtures are all available upon customer drawings.
Q5: How long is the lead time for customized versions?
+
-
A: Custom heavy-duty welding positioners need 15–20 working days for production and factory debugging.
