Product Overview

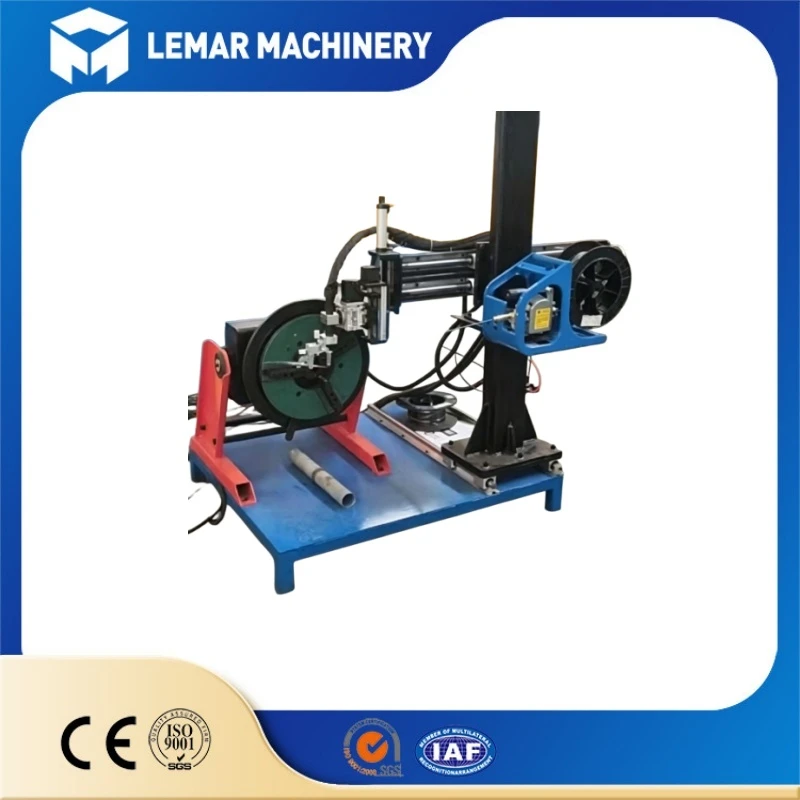

The 100kg welding positioner adopts integrated cast iron base and compact structural design. T
he 400mm large-diameter turntable ensures large contact area and stable clamping. The overall size is reasonable, occupying small workshop space, easy to move and install.
It can be matched with ordinary welding machine, automatic welding machine and welding torch manipulator to form a complete automatic welding system.
Parameter Table
| Parameter Item | Technical Data |
|---|---|
| Model | BWJ-100 |
| Rated Load Capacity | 100 kg |
| Maximum Overload | 120 kg |
| Turntable Diameter | φ 400 mm |
| Rotation Speed | 0.1 - 1.5 rpm (stepless adjustable) |
| Max Tilting Angle | 0° - 90° (manual self-locking) |
| Rotation Motor Power | 0.37 kW |
| Tilting Motor Power | 0.55 kW |
| Control Mode | Foot pedal + digital control box |
| Power Supply | 220V/110V Single Phase 50/60Hz |
| Workpiece Clamping | Standard 3-jaw chuck (optional) |
| Overall Dimension | 800×600×750 mm |
| Net Weight | 120 kg |
| Certification | CE / ISO |
| Warranty | 1 year (core parts) |
Key Advantages
Rated load capacity up to 100kg, stable rotation without shaking during continuous welding
0-90° manual tilting with self-locking worm gear, lock any angle securely
Stepless adjustable rotation speed 0.1-1.5rpm, match different welding speed demands
Foot pedal switch for hands-free operation, convenient for long-time welding work
Suitable Welding Workpieces & Application Scope
our services
This 100kg welding positioner is specially designed for small and medium rotary workpieces,
widely used in circular seam welding, splicing welding and positioning welding.
Pipeline Accessories
Stainless steel pipe, carbon steel pipe, elbow pipe, pipe fitting circular welding
Flange Parts
All kinds of standard flange, irregular flange butt welding
Small Pressure Vessels
Small tank, cylinder, container circumferential welding
Hardware Mechanical Parts
Round mechanical parts, valve body, roller, wheel hub welding
Industry Scenarios
Metal fabrication workshop, equipment repair factory, pipeline manufacturing factory, new energy accessory processing
Why Choose Our 100kg Welding Positioner
Professional Factory Direct Sale
No middleman price difference, cost-effective
Strict Quality Control
Full inspection before shipment, low failure rate
Strong Customization Ability
Support non-standard size and function customization
Rich Export Experience
Exported to Europe, America, Southeast Asia, Middle East and other regions
Product packagin
Standard Export Packaging - Adopts fumigated wooden case with fixed steel frame and shockproof, moisture-proof materials. It protects the welding positioner well during sea, air and land transportation.
Multiple Trade Terms - Support mainstream international trade terms including FOB, CIF and DDP, flexible to meet port and door-to-door delivery needs.
Fast Stock Shipment - Standard 100kg welding positioner is in stock. Goods can be delivered within 3-7 working days for fast customer procurement.
Custom Production Cycle - Customized models for special voltage, size and configurations take 10-15 working days for production and delivery.
Product Certification
Customer feedback
Direct Factory Supply - Independent production workshop, no middleman markup, high cost performance of equipment
Rigorous Quality Inspection - 100% full inspection before delivery, strict control of every production link
Powerful Customization - Support personalized customization of voltage, size, function and accessories according to customer demands
Perfect After-sales System - One-year warranty for core components, lifelong free technical consultation and guidance
Mature Export Experience - Long-term export to Europe, America, Southeast Asia, Middle East and other regions, familiar with export procedures
Frequently Asked Questions
Q1: What is the maximum workpiece weight for this 100kg welding positioner?
+
-
A: The rated load is 100kg, and the instantaneous overload can reach 120kg, which is recommended to work within 100kg for long-term use.
Q2: Can the rotation speed be adjusted arbitrarily?
+
-
A: Yes, it adopts variable frequency stepless speed regulation, the speed range is 0.1-1.5rpm, which can match different welding speeds.
Q3: Is it suitable for TIG and MIG welding?
+
-
A: Fully applicable, perfectly matched with CO2 welding, argon arc welding, electric welding and other processes.
Q4: Can I customize the turntable size and voltage?
+
-
A: Yes, we support OEM and ODM customization, including voltage, turntable diameter, control system and accessories.
Q5: What is the delivery time?
+
-
A: Standard 100kg welding positioner has stock, delivery in 3-7 days; customized models take 10-15 days.
