Products Description
Robot Welding Positioner is an auxiliary device used to adjust the position of workpieces or tools in industrial robot systems. It is mainly used to optimize the accuracy and efficiency of welding, processing, inspection and other operations. According to different classification standards, positioners can be divided into the following categories:

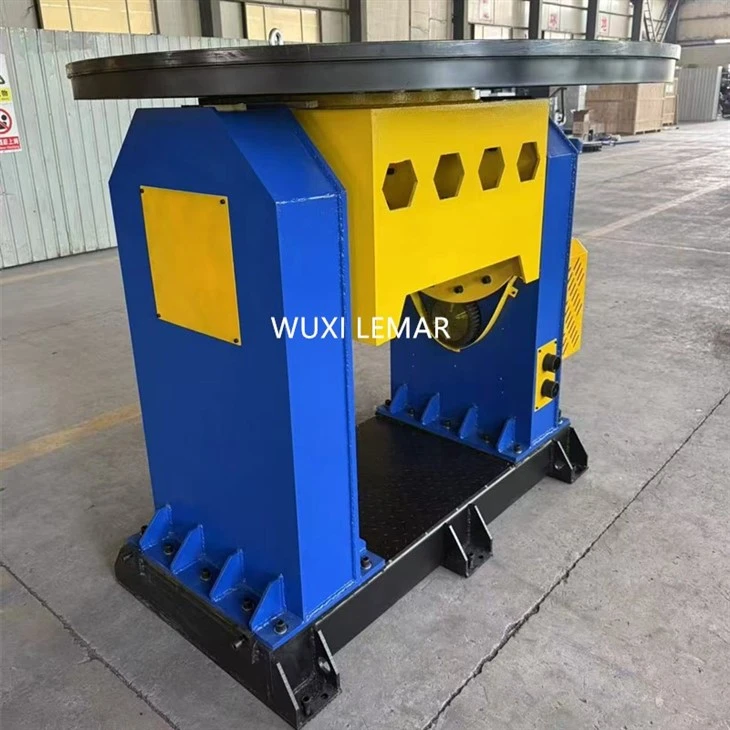

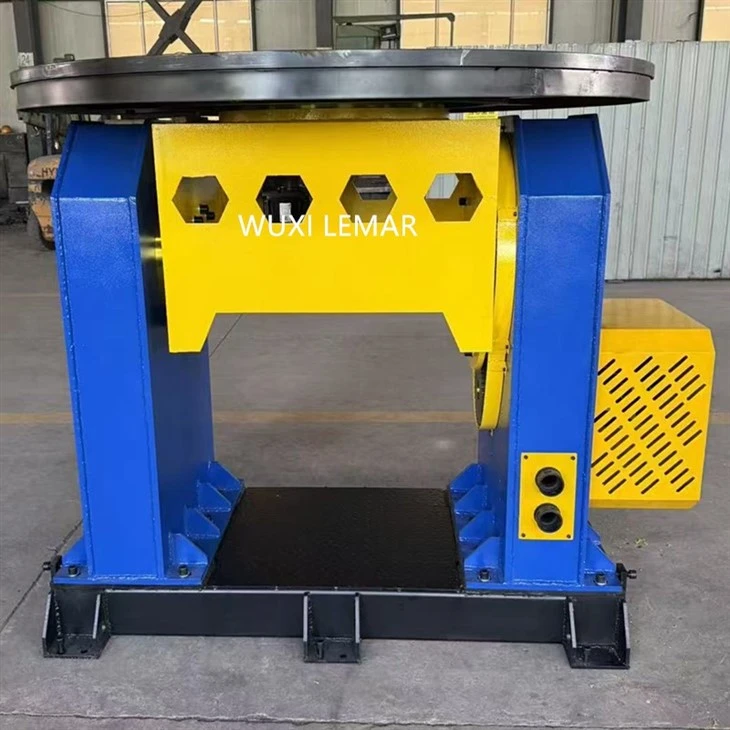

Robot welding positioners
Wuxi Lemar is one professional robot welding positioner manufacturer
Single-axis positioners
Rotates only around a single axis (usually a horizontal or vertical axis), with a simple structure, suitable for flipping or rotating simple workpieces.

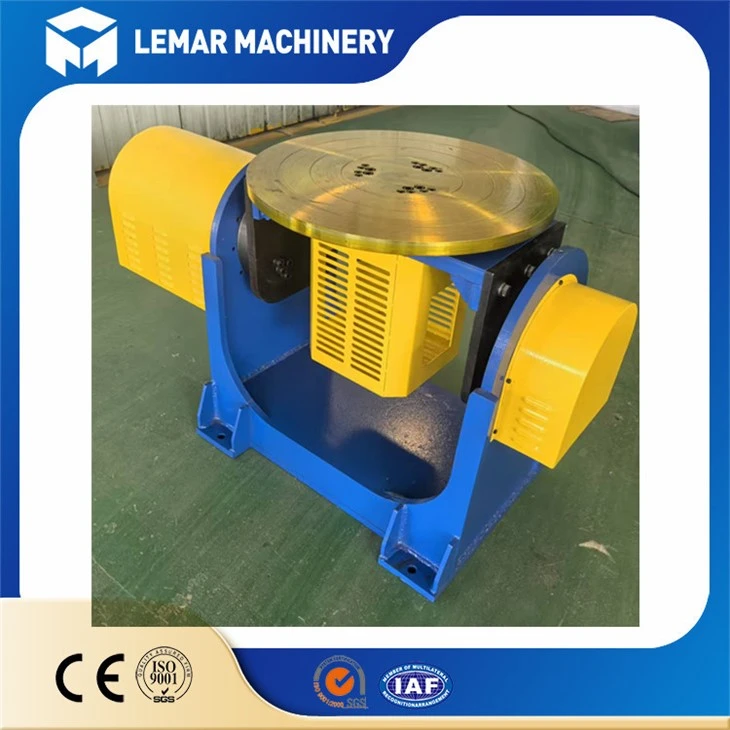

Dual-axis positioners
With two rotating axes (such as around the X-axis and Y-axis), it can achieve more complex spatial posture adjustment and is often used for multi-angle welding or processing.
Multi-axis positioner (≥3 axes)
Integrated with multiple rotation or translation axes, it can cooperate with the robot to complete high-degree-of-freedom movement, suitable for complex surface processing or precision assembly
Products specification
| Name | |
| Double axis positioner | |
| Model | LMR-500 |
| Load(kg) | 500kg |
| Frame size: length*width*height(mm) | Disc diameter ∅500*23H |
| Turning radius/installation surface distance from ground(mm) | 650mm(Mounting surface distance from ground) |
| Rated speed(°/sec) | Vertical axis:81°/sec Horizontal axis:78°/sec |
| Repeat positioning accuracy(arcmin) | 1.0 arcmin |
| Rotation Angle(°) | Flip ±90° Rotate ±360° |
| Eccentricity(mm) | ≤100 mm |
| Center of gravity distance(mm) | ≤100 mm |
| Motor power(kw) | 2.3kw/1.5kw |
