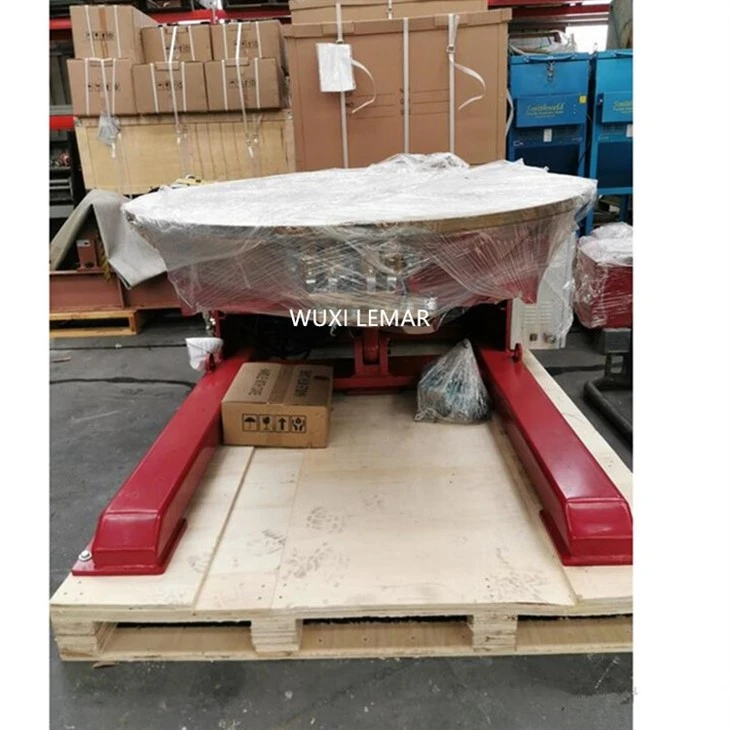

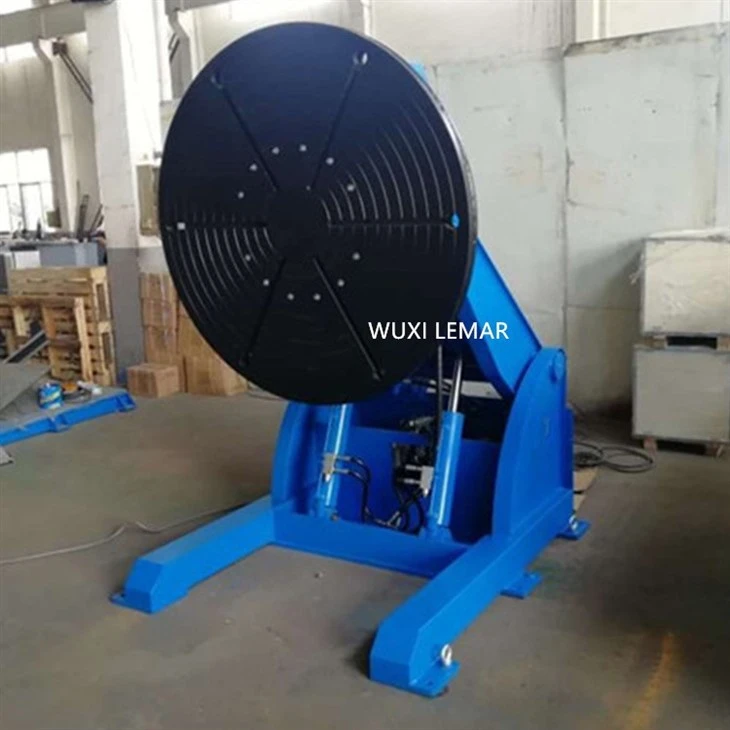

Hydraulic Tilt Welding Positioner
0-135° tilt hydraulic welding positioner has numerous applications in various industries where welding is involved. It is with powered height, tilt and rotation positioning, plays a vital role in enhancing the quality and efficiency of the welding process.
Products parameters
|
Model |
YHP-3000 |
|
Loading weight |
3000kg |
|
Rotation speed |
0.05-0.5rpm |
|
Turnover method |
Variable frequency stepless speed regulation |
|
Flip angle |
0-135 ° |
|
Flip method |
Hydraulic flip |
|
Max gravity |
300mm |
|
Max eccentricity |
200mm |
|
Pump power |
1.5kw |
|
Motor power |
1.1kw |
|
Table diameter |
Φ1400mm |
Products function
Since the welder does not need to rise to make the welding workpiece by using this hydraulic tilt and rotating positioner, the work intensity is reduced and the safety of the welder is greatly improved.
The welding manipulator is used in conjunction with the welding turning positioner, roller rotator, etc. to complete longitudinal seam, circular seam, spiral seam welding, and can also be used for movable surface treatment, incision, flaw detection, grinding, painting and other operations.
