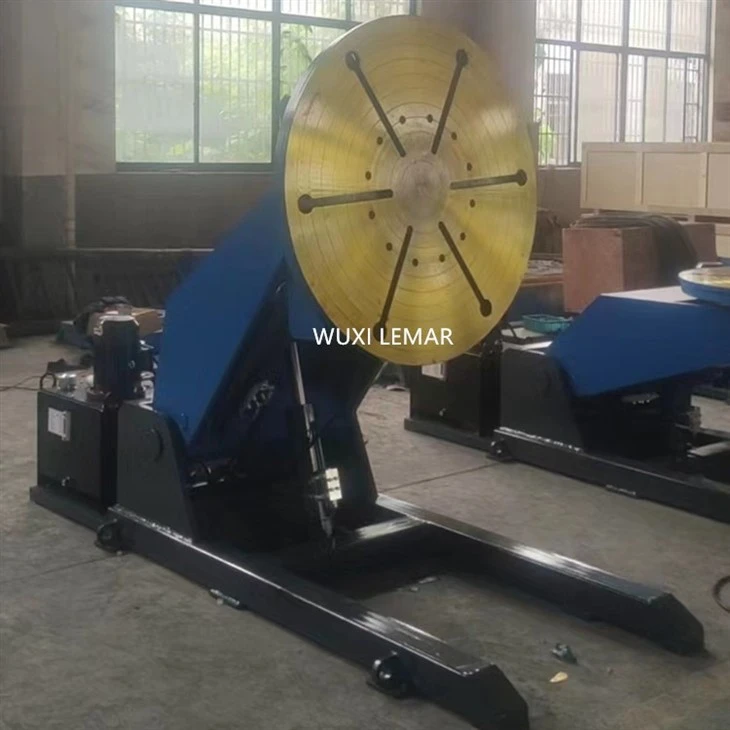

Automatic Hydraulic Welding Positioner
Hydraulic welding positioner machine is mainly used for welding or assembly of metal structured parts,it can lift automaticly by hydraulic pump.
It can make the work-piece in the best welding or assembly position through the turning and flipping of the workbench, which can effectively improve the quality of welding and assembly, reduce the number of work handling, reduce the labor intensity of the workers, and improve the efficiency of labor.
Welding turtable uses automatic flip, the positioning is accurate and reliable,it rotates the conversion frequency conversion speed. The range of pipe changes is large and the accuracy is high. It can rotate pipes or flanges at the required welding speed to greatly improve the quality of straight or circular welded seams.
Products specification
|
Model |
YHP-2000 |
|
Loading weight |
2000kg |
|
Rotation speed |
0.075-0.75rpm |
|
Turnover method |
Variable frequency stepless speed regulation |
|
Flip angle |
0-135 ° |
|
Flip method |
Hydraulic flip |
|
Max gravity |
200mm |
|
Max eccentricity |
100mm |
|
Pump power |
1.5kw |
|
Motor power |
1.1kw |
|
Table diameter |
Φ1000mm |
Products application
1. Heavy fabrication industry - In industries where heavy-duty machinery and equipment are manufactured, a hydraulic welding positioner is a must-have. It can help to rotate large and bulky components with ease, making it easier to weld complex structures.
2. Shipbuilding - Shipbuilding is another industry where hydraulic welding positioners are commonly used.
3. Aerospace - In the aerospace industry, precision is key, and welding is no exception. Hydraulic welding positioners can be used to hold small but critical components such as flaps, winglets, and landing gear during the welding process.
4. Automobile industry - hydraulic welding positioners to ensure a high-quality weld. They are particularly useful in assembling car frames and suspensions.
5. Construction industry - In the construction industry, hydraulic welding positioners are used to weld steel structures such as the frames of buildings and bridges.
