Product Description

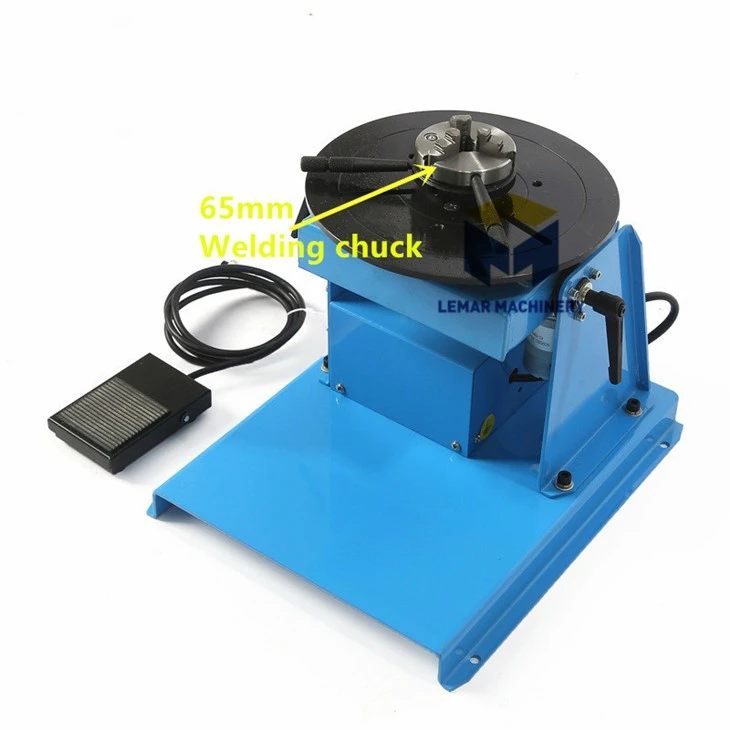

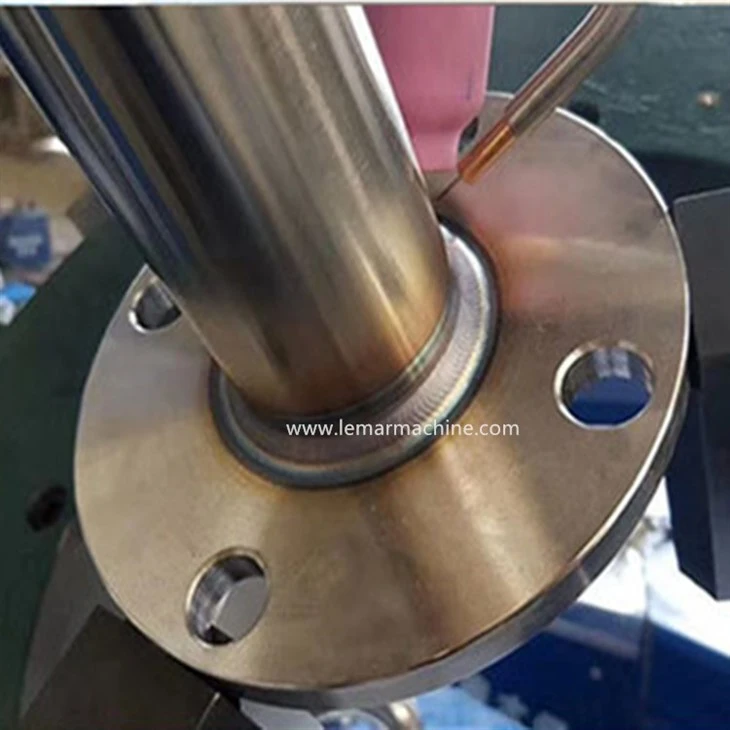

Rotating Welding Positioner is mainly used for the welding of circular welds. The main function of this machine is to tilt and rotate the workpiece, so that the welding seam can be welded in the best position such as horizontal and boat shape.It can be used in conjunction with a welding manipulator to realize automatic welding. It can also be used for processes such as cutting, polishing, assembling, and testing.
Specifications:
| Model | 30kg | 50kg | 100kg | 200kg | 300kg |
| Loading weight 0°/90° | 30kg/15kg | 50kg/25kg | 100kg/50kg | 200kg/100kg | 300kg/150kg |
| Table diameter | 310mm | 320mm | 360mm | 400mm | 500mm |
| Hole diameter | 25mm | / | 65mm | 140mm | 140/170mm |
| Motor | 57 step motor | 86 step motor | 86 step motor | 86 step motor | 86 step motor |
| Oversize | 380*360*400mm | 380*410*400mm | 500*415*450mm | 530*490*500mm | 650*565*600mm |
| Speed | 0.1-9rpm | 0.1-9rpm | 0.05-5rpm | 0.05-5rpm | 0.05-5rpm |
| Power | AC220V 50-60HZ | ||||
| Tilt mode | Manual wheel | ||||
| Tilt angle | 0-90 degree | ||||
As an indispensable product for pipe welding and cylinder welding, welding positioners are very different in structure to meet the different needs of customers:
1. Ordinary seat type positioner
2. Double column single rotary positioner
3. L-type double rotary positioner
4. U-shaped two-seater head and tail double-turn type positioner
5. C-type double-rotation welding positioner
We Wuxi Lemar produce automatic pipe and vessel welding machines according to client's need,so you can tell us your request.
