Company Profile:
Wuxi Lemar Machinery Equipments Co.,Ltd products are diversified and specialized, and the industries involved are: ship and bridge, electric power repair and construction, steel structure beams and columns, construction machinery, locomotives, boilers and pressure vessels, wind power generation, petrochemical machinery, coal mining machinery, metallurgical environmental protection equipment, shipyards Heavy machinery, etc.
Our main products are: cutting/beveling/assembly/welding/straightening, steel structure welding equipment, H-beam production equipment, automatic welding equipment and other equipment.
There are cantilever welding manipulator, rotating and tilting positioner, roller rotators, End face milling machine, CNC flame/plasma cutting machine series, wind tower assembly butt welding equipment,straight or circular seam welding machines etc.
We not only meet the domestic market, but are also exported to Southeast Asia, Australia, America and other foreign markets:USA,Canada,UK,Russia,India,Poland,Finland,Italy,Germany,Spain,Greece,Portugal,Brazil,South Africa,Egypt,Pakistan,Dubai,Kuwait,Newsland,Korea,Japan,Malaysia,etc.
Product Description:

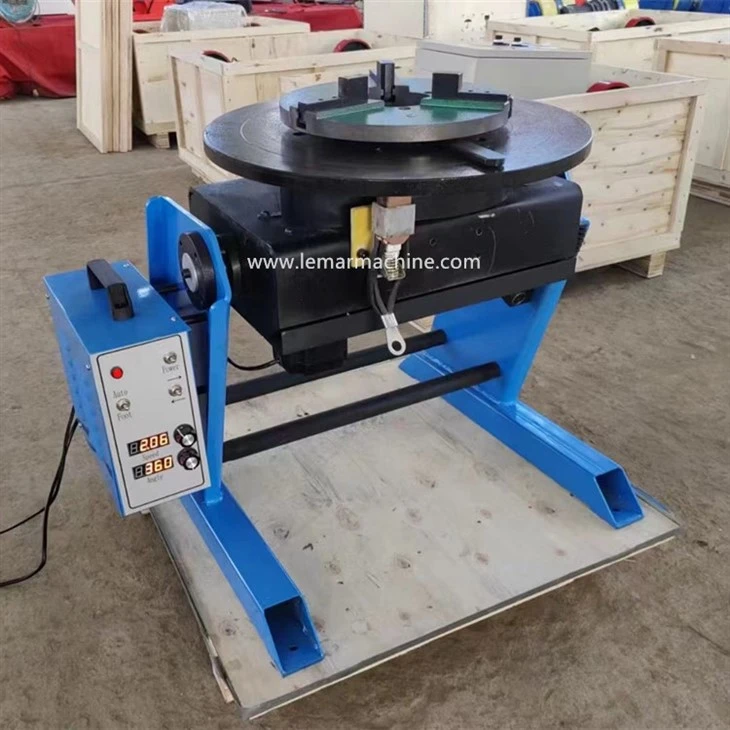

0-360° welding positioner automatically changes the workpiece rotation angle (0-360°) and flip angle (0-135°), and is equipped with various welding auxiliary tools. It solves the problem of unstable manual welding, unfixable rotation angle, and unfixable rotation time. Control, long workpieces are inconvenient to weld and other problems.
Specification of 100KG Adjustable Welding Table:
| Model | BWJ-01 |
| Loading weight | 100kg Horizontal |
| 50kg Vertical | |
| Table diameter | 400mm |
| Rotating speed | 0.3-7rpm |
| Tilt mode | Manual |
| Tilt angle | -10~135° |
| Duration | In stock |
| Voltage | 220V 50hz |
Optional:
1. Depending on the weight of your workpiece, you can choose a light positioner (10~500kg) or a medium and large positioner (600kg~15T)
2. Depending on the length of your workpiece, you can choose a large through-hole positioner or a through-hole positioner with a 3-jaw chuck.
3. According to the welding process you require, you can choose a welding positioner with a welding torch holder and a TIG welding feeder
4. If your workpiece weighs less than 300kg, you can choose a combined positioner. One set of equipment can meet your various welding requirements.
5. Depending on your investment budget for the machine, you can choose an ordinary positioner or a CNC positioner
6. In addition to seated positioners with flip and rotation functions, we also have robot-specific head and tail frame positioners, hydraulic lifting adjustable positioners, etc. Please feel free to consult us if you have any needs, our team is ready!
