Servo Welding Positioner

  With the rapid development of industrial automation and intelligence, modern factory production systems are transforming from simplicity to complexity. Welding processing generally requires welding multiple surfaces of the workpiece, so the welding robot needs to be designed with matching positioners and other equipment to form a workstation system to complete the specified welding tasks. The robot positioner is an important equipment that assists the work of industrial robots. The robot positioner changes the orientation of the product through rotational motion, allowing the robot to obtain the ideal processing position and working speed to improve production efficiency.

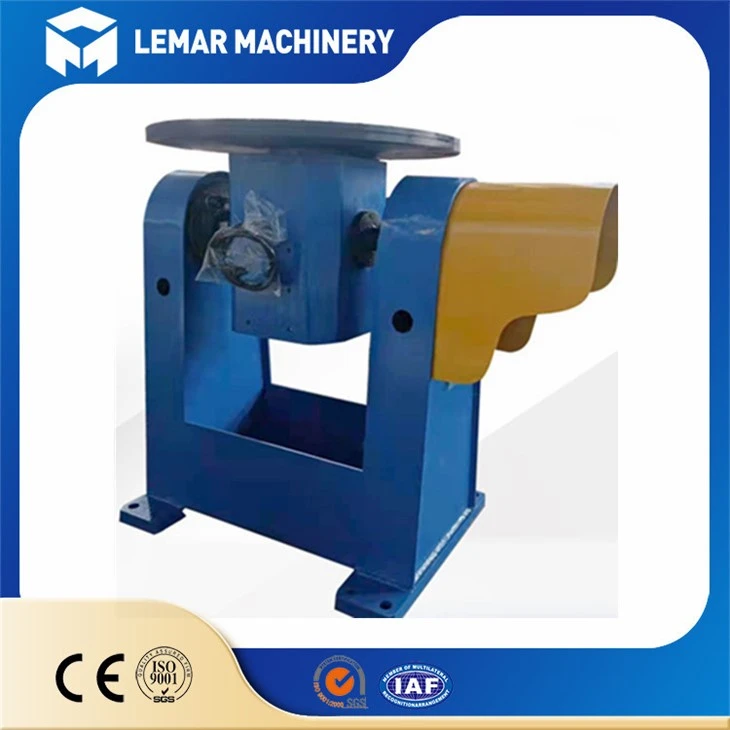

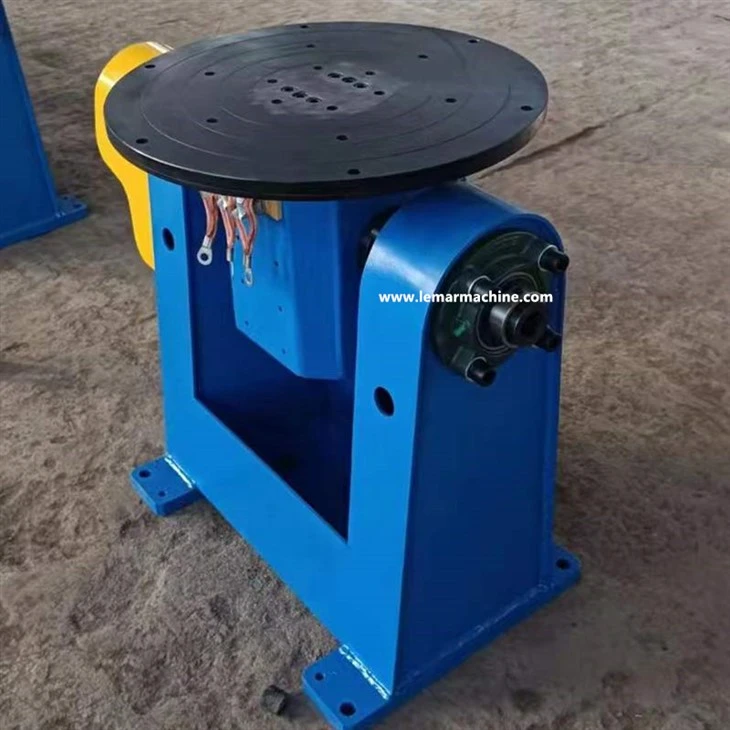

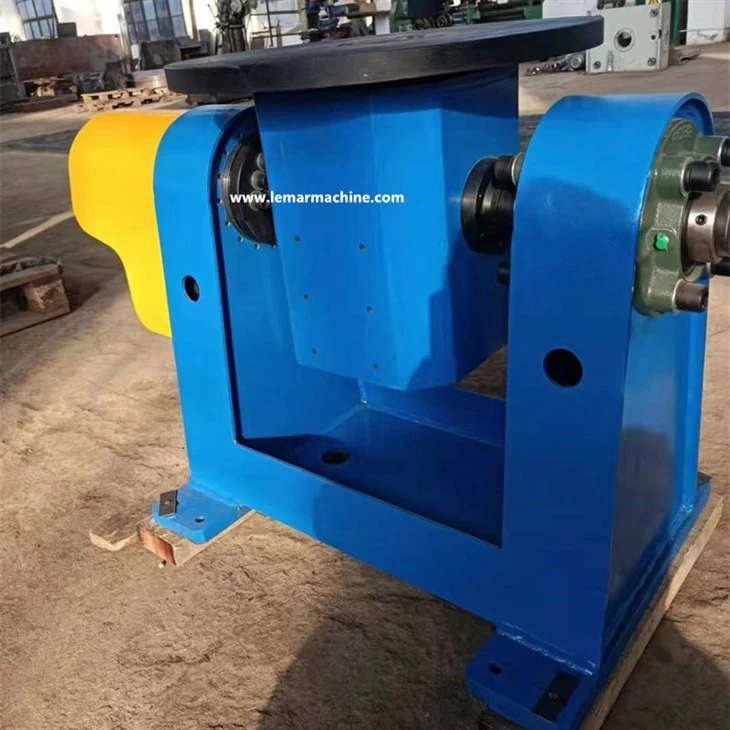

  500kg loading weight Servo Welding Positioner is driven by a servo motor to realize plane rotation and ±180° overturning. The positioning is accurate and reliable. The overall positioner adopts an AC motor to make the workpiece in the most ideal welding position for welding.

Maximum load-bearing weight 500 kg

• Equipment organization form Workbench servo flip, workbench servo rotation

• Equipment turnover center height 565mm

• Height from table to ground 721.5mm

• Worktable rotation servo 3.0KW (provided by the ordering party)

• Workbench flip servo 3.0KW (provided by the ordering party)

• Table rotation speed 0～8.0rpm/min

• Turning speed of worktable 0～8.0rpm/min

• Worktable rotation Servo motor + RV precision reducer

• The workbench is turned over Servo motor + RV precision reducer

• Workbench size Ф600 mm

• Maximum center-of-gravity distance 150mm

• Maximum eccentricity 200mm

• Dimensions (length × width × height) 1280×520×800mm
