Introduction

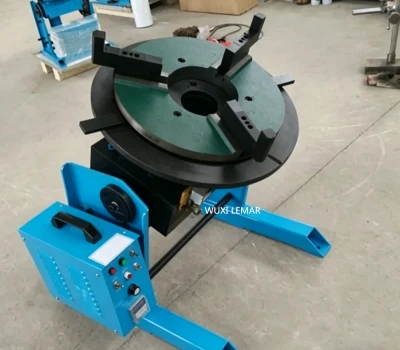

This CNC welding positioner with chuck is engineered for precision circular welding tasks. Equipped with numerical control option and three-jaw self-centering chuck, it can accurately rotate and tilt cylindrical, flange and tubular workpieces. Operators can fix workpieces quickly on the turntable and achieve stable constant-speed rotation. Suitable for medium-load precision welding requirements in metal processing workshops.
Products parameters
| Item | Specification |
|---|---|
| Model | HD-50 CNC Welding Positioner |
| Rated Horizontal Load | 50kg |
| Turntable Diameter | 400mm |
| Rotation Speed | 0.1–1.5 rpm stepless adjustable |
| Tilting Angle | 0–90° electric tilting |
| Standard Accessory | 200mm 3-jaw self-centering chuck |
| Control Mode | Manual control / Optional CNC control |
| Optional Parts | Through-hole turntable, torch holder, foot pedal |
| Input Voltage | 220V single phase (110V/380V customizable) |
| Warranty | 12 months |
Products Production
1.Raw material incoming inspection All steel plates, gear reducers, motors and electrical components are strictly inspected after arrival to eliminate unqualified parts at the source.
2.CNC precision cutting & machining Structural parts are processed by CNC cutting, lathe and milling machines to guarantee precise dimensional tolerance for assembly.
3.Welding & stress relief The base frame and turntable base undergo firm welding, followed by stress relief treatment to avoid deformation under load.
Design Characteristics
.
Integrated sturdy frame structure, low vibration during continuous CNC operation
Optional CNC control system to preset rotating speed, running angle and dwell time.
Standard matched self-centering chuck, convenient for fast clamping round workpieces.
Self-locking worm gear reducer, maintaining fixed posture without slipping after tilting.
Customizable Options
CNC digital control cabinet with angle programming function
Through-hole turntable for long pipe penetration welding
Welding torch holder mounting bracket
Foot pedal switch for convenient hands-free operation
Custom voltage to meet different national power standards
After-sale Service Arrangement
Operation manual, wiring drawing and operation videos will be supplied together with the CNC welding positioner with chuck. We offer online remote technical guidance for installation, commissioning and parameter setting of CNC system. Original spare parts can be supplied continuously after shipment. We keep communication to follow up machine working status long-term.
