Product Overview

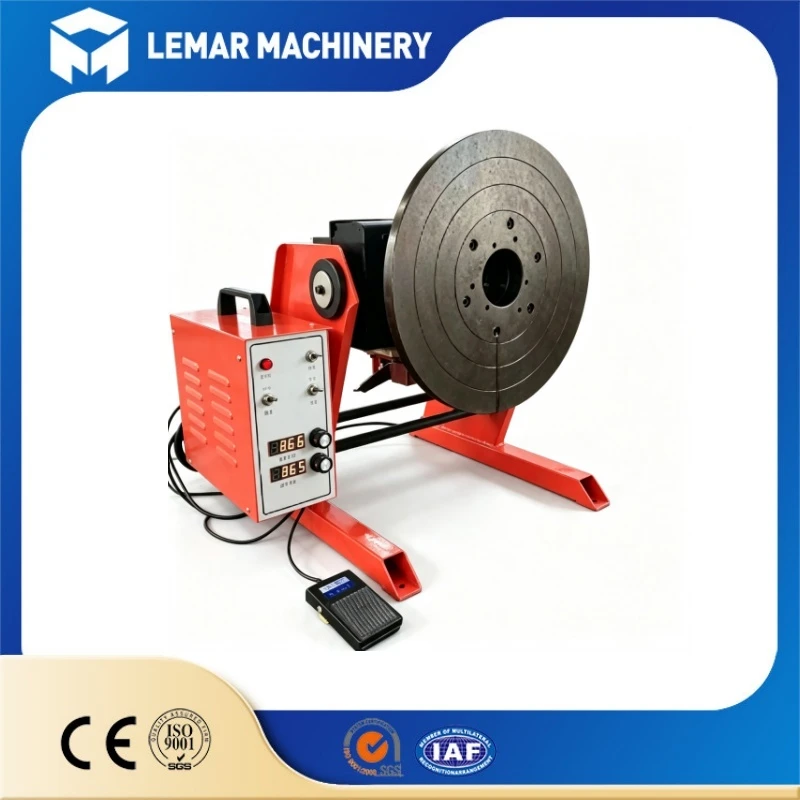

This 300kg Industrial Mini Welding Positioner is compact desktop rotary equipment for light cylindrical, flange and small tank welding positioning.
It supports 0°–90° mechanical tilting and stepless frequency conversion speed regulation.

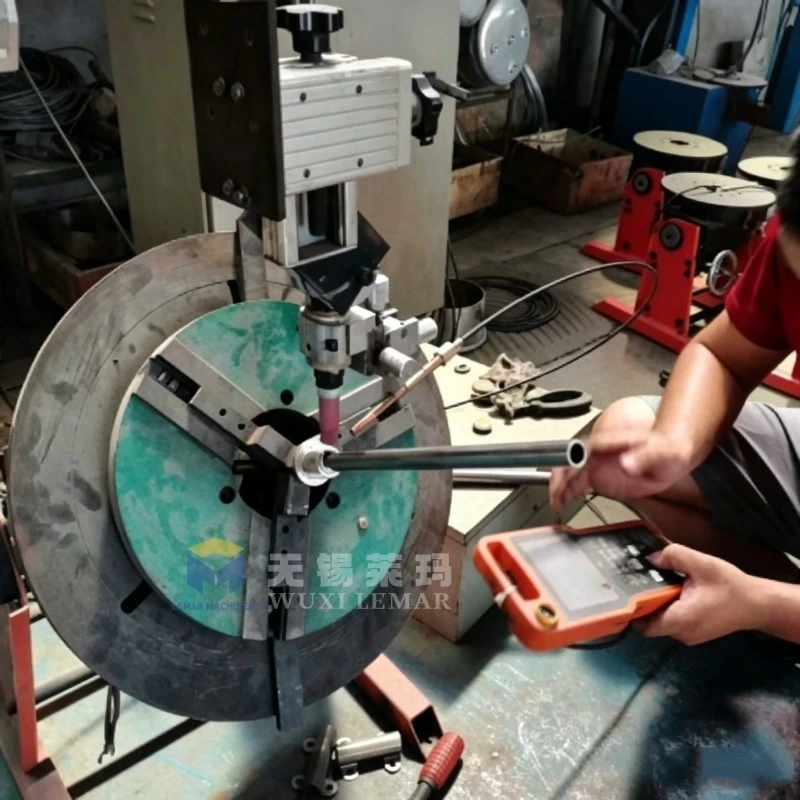

It can be matched with chuck, fixture and torch holder to turn workpieces to ideal flat welding position, greatly reducing welding difficulty and improving weld uniformity.
Technical Parameter Table
| Item | Specification |
|---|---|
| Product Model | WP-300 |
| Rated Load Capacity | 300kg |
| Tilting Angle | 0°–90° |
| Rotation Speed | 0.2–2rpm stepless adjustable |
| Drive Mode | Gear reducer + frequency conversion motor |
| Control Method | Control Box + Foot Pedal Switch |
| Working Voltage | 380V/220V 50Hz Customizable |
| Table Top Size | Customizable with chuck mounting hole |
| Certificate | CE Available |
| Warranty | 12 Months |
Our Service
Mini Compact Structure
Compact integrated frame design occupies little ground space, convenient for layout in maintenance workshops and experimental stations.
0–90° Adjustable Tilting
Mechanical locking tilting structure, arbitrary angle locking fixation, optimize welding posture to reduce weld defects
VFD Stepless Speed Regulation
Frequency converter drives smooth rotation, constant torque output at low speed, match manual and automatic welding cooperation.
Solid Cast Iron Base
Casting base with overall stress relief treatment, restrain vibration during rotary operation to guarantee seam consistency.
Dual Control Mode
Independent cabinet control and foot switch linkage control, operators adjust running state without stopping welding operation.
Strong Compatibility & Easy Upgrade
Working table reserved multi-position mounting holes, quick assembly of clamping accessories to realize multi-product switching production.
Application Industry
Standard & Optional Accessories
Standard Accessories
1.Complete welding positioner main unit
2.VFD electrical control cabinet for speed adjustment
3.foot pedal switch for hands-free operation
4.connecting power cables, assembly fixing bolts
5.official English operation and maintenance manual for installation guidance.
Optional Accessories
1.3-jaw or 4-jaw self-centering welding chuck for workpiece clamping
2.adjustable welding torch holder for automatic welding
3.customized positioning fixture for special-shaped workpieces
4.mobile traveling base for flexible site transfer, voltage 5.conversion transformer to match local power grid.
Product packaging
Export Package:
Whole machine wrapped with waterproof film, control cabinet packed in fumigated plywood case, fixed with steel strip.
Trade Term: EXW, FOB CIF Shanghai/Tianjin
Production Lead Time: 7–10 working days after deposit
Shipping Method: Sea freight, land transport
Product Certificate
Frequently Asked Questions
Q1: Can this mini welding positioner tilt the workpiece vertically?
+
-
A: It supports 0° to 90° tilting to realize horizontal, inclined and vertical positioning.
Q2: Is the rotation speed adjustable?
+
-
A: Equipped with frequency converter, rotating speed 0.2–2rpm stepless adjustment.
Q3: Can I install a chuck on the turntable?
+
-
A: Reserved mounting holes on the worktable to match standard welding chuck directly.
Q4: Do you support customized voltage?
+
-
A: 220V single-phase, 380V three-phase power supply can be customized for different countries.
