Dust Collector Cage Welding Machine

Introduction

The dust collector cage is commonly known as the "dust collector frame, dust collector bag cage", which is one of the important components of the bag filter and the ribs of the filter bag. It is generally made of Q235 material and the surface is galvanized or silicone treated.

1. Stretch the steel wire to the vertical rib diameter we need;

2. Make the dust removal skeleton accessories: head, bottom and cage body horizontal ribs, then you can put it on Dust Collector Cage Welding Machine;

3. Determine the diameter and number of ribs of the dust bag cage;

4. Weld the head and bottom of the dust removal skeleton;

5. Fix the dust removal skeleton neatly and orderly on the automatic "clothes rack", let the dust removal skeleton pass the automatic silicone spraying, manual leak repair silicone spraying, ensure that each skeleton can be evenly sprayed with high-quality silicone material, and then enter the oven, high temperature makes it firmly attached to the dust removal skeleton, so that the silicone spray dust removal skeleton is ready.

Products specification

Cage diameter range	∮100-200mm
Suitable cage length	7.5m
Suitable wire guage	2-6mm
Wire quantity	8,10,12,16,20,24
Electric power	380V 3P 50/60HZ
Rated load duty cycle	50%

Equipment details

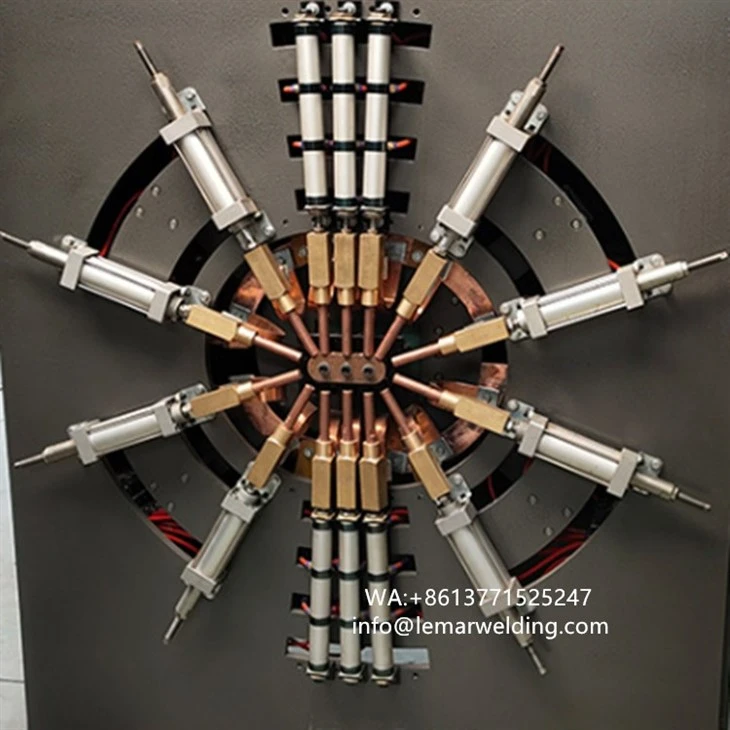

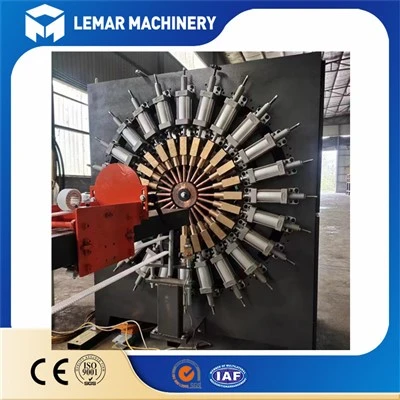

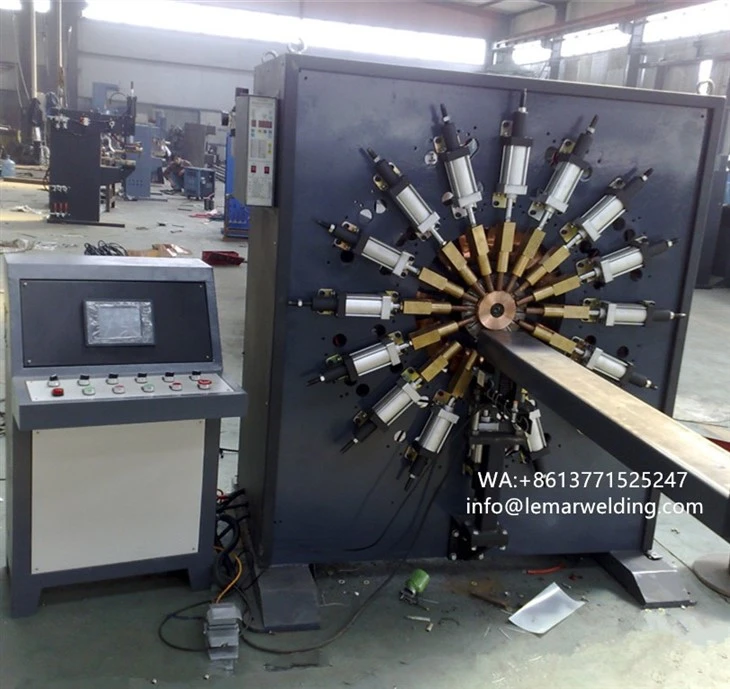

Dust collect bag welding machine

Stretch the steel wire to the vertical rib diameter

Fix the filter head, bottom and cage body ribs

Spot welding machine for Filter head and base

Dust collector finished after Silicone spraying

Products features

1. Dust Collector Cage Welding Machine is controlled by a microcomputer, pneumatic clamping, and one-time molding;

2. It can weld 8 wires, 10 wires, 12 wires, 16 wires, 24 wires of round, square, diamond-shaped frames or mesh cages with a diameter of φ80-250mm.

3. The 24-point dust collector cage forming machine has 6 independent microcomputer control systems, which control 6 transformers respectively. The current of each transformer can be adjusted individually to ensure that the current of each welding point is constant.

4. The frame structure of the Dust Collector Cage Welding Machine adopts steel plate bending and welding, which has good rigidity and small deformation.
