Beam CNC End Face Milling Machine
The milling head is arranged horizontally and can move along the rail of the horizontal bed to process the plane in the vertical direction.
Products structure
Main bed --- including: main bed body, horizontally movable sliding table, horizontal transmission mechanism, protection device, lubrication system.
Column body---including: lifting column body, lifting sliding table, lifting transmission mechanism, lubrication system.
Workbench---including: front workbench, rear workbench, auxiliary workbench.
Electric control system --- including: digital display screen, electric control cabinet, operation box, wiring system.
Components are Siemens brand, contactors are Schneider brand
Spare parts for the whole machine:
A: Cemented carbide milling inserts (with ￠200 cemented carbide indexable face milling cutter 12 pieces
B: 1 set of special tools

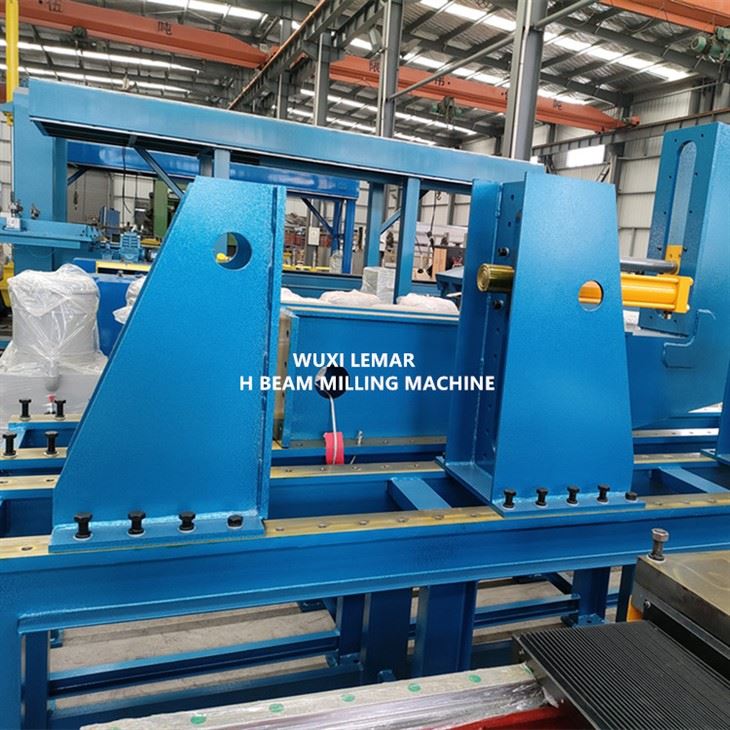

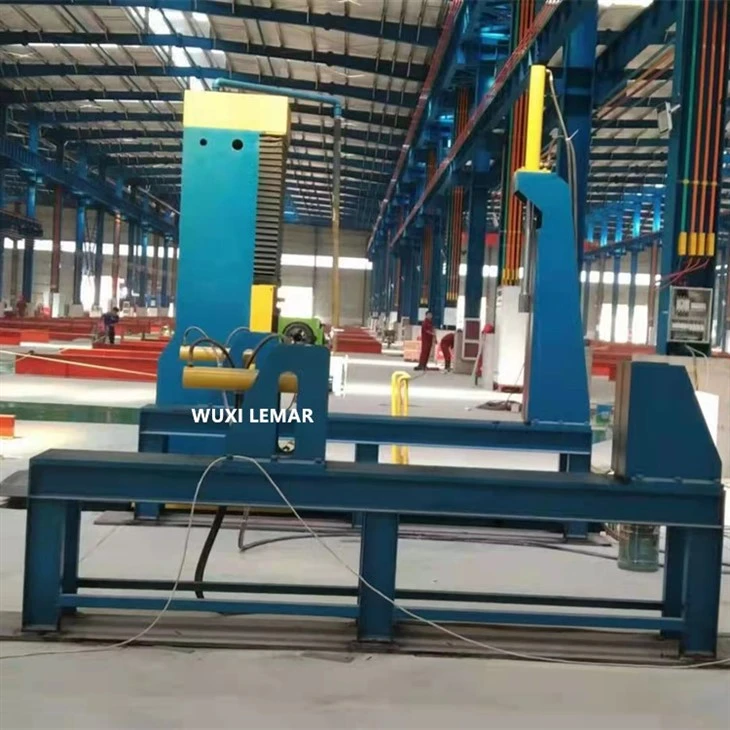

Products Display
Remarks: SDX type numerical control plane milling machine (CNC), this machine has X axis, Y axis, milling head feed. In the working state, the display shows the moving stroke and moving position of the X-axis and Y-axis, with high accuracy, which can meet the processing requirements of the structural end surface and the inclined surface.
