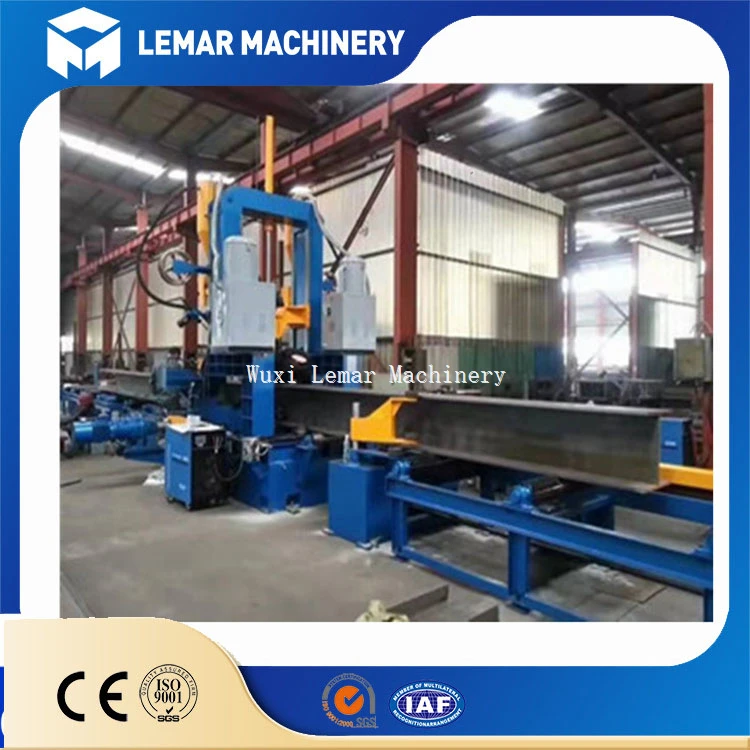

Assembly Machine For Steel Structure
Assembly Machine For Steel Structure is equipped with hydraulic systems, frequency converters and other devices, which can automatically, efficiently and accurately complete the assembly of "T" or "H" steel. The operation is simple and the degree of automation is high.
Products Details
1- main machine;
2- active roller table (4 sections);
3-1 active trolley boxes;
4- passive roller table (2 sections);
5-1 driven trolley boxes;
6-anti-falling device;
7 -Hydraulic system;
8 -Electrical system.
Products Features
-
Applicable workpiece web height: 300-3000mm (when the web height is less than 260mm, only need to remove the middle two web clamping wheels)
-
Applicable workpiece web thickness: 6-80mm
-
Applicable workpiece wing plate width: 200-1000mm (the web can be assembled with off-center H-shaped steel; that is, the dimensions of the two sides of the flange plate are different, and the width of each side can be positioned within the range of 75mm-500mm.)
-
Applicable workpiece wing plate thickness: 6-80mm (when the thickness exceeds 60mm, the front and rear webs can be clamped and the angle iron can be turned)
-
Applicable workpiece length: 4000-15000mm
-
Single workpiece weight: ≤20 tons
-
Spot welding speed (3Hz): 360mm/min
-
Idling speed (30Hz): 3600mm/min
-
The rapid conveying speed of the workpiece (50Hz): 6000mm/min
-
Input roller table: 2600mm×3 (two sections are active roller tables, one of which is driven by the host through a chain)
-
Output roller table: 2600mm×3 (two sections are active roller tables, one of which is driven by the host through a chain)
-
Electrical assembly: AC inverter and built-in PLC programmable controller of the inverter
-
Total installed capacity: Main engine power: 13.2kW
-
Power supply: 3-phase AC380V 50HZ
