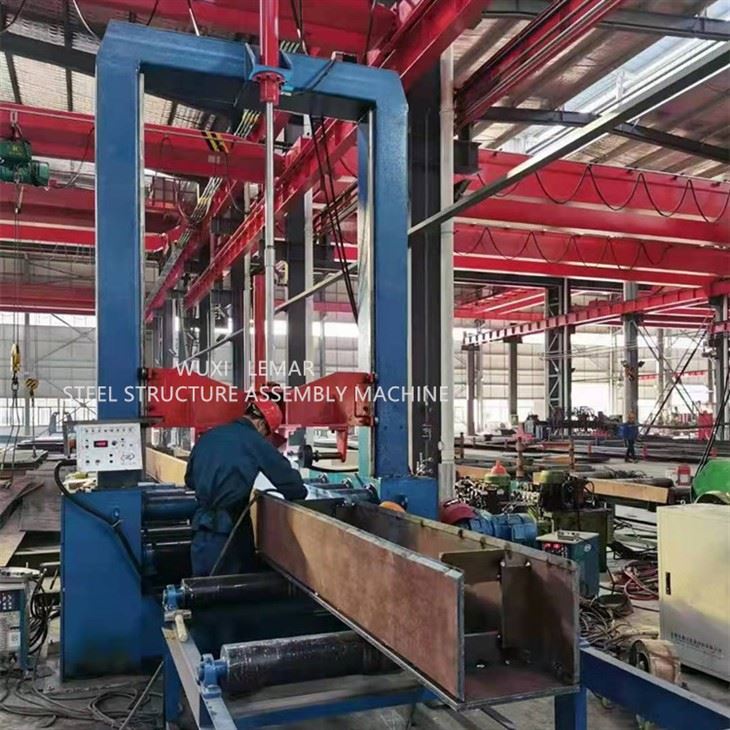

As an important part of the H-beam production line, the automatic spot welding assembly machine is equipped with a suitable hydraulic clamping device to ensure the accurate positioning of the webs and flanges of different widths, and automatically assemble the H-beam.
Product specifications
Model | Web thickness | Web height | Flange thickness | Flange height | Length |
ZL15 | 32mm | 200-1500mm | 40mm | 200-800mm | 4000-15000mm |
ZL18 | 32mm | 200-1500mm | 40mm | 200-800mm | 4000-15000mm |
ZL20 | 32mm | 200-1500mm | 40mm | 200-800mm | 4000-15000mm |
Product Feature:
1.Frame:The structure of the H-shaped steel automatic spot welding assembly machine is firm and stable, and the electrical control system consists of an electrical control box and two operation panels. The electric control box is installed on the walking beam, and the two operating panels are fixed on the front of the upper platform.
2.Electrical assembly: H beams assembly and welding machine uses AC frequency converter to control the feeding speed
3.Hydraulic system: This assembly machine is hydraulic, using an excellent hydraulic system from a Sino-foreign joint venture, and is equipped with a filter to ensure long-term reliable operation of the solenoid valve;
4.Automatic spot welding system: Equipped with two 350 gas shielded welding machines. Customers can also choose to purchase different welding machine brands. At the same time, Wuxi Lemar is equipped with automatic arc guide racks for H beam assembly equipment.
