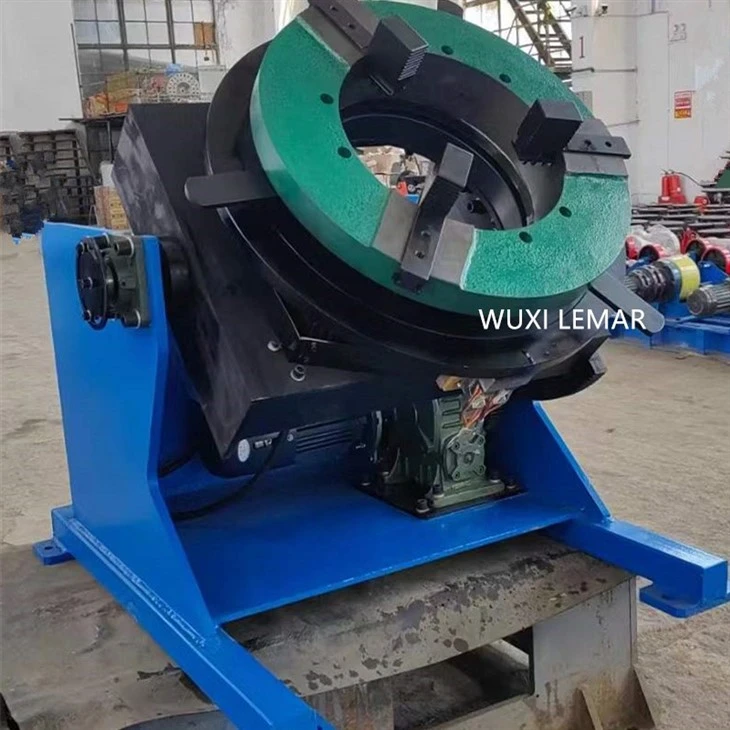

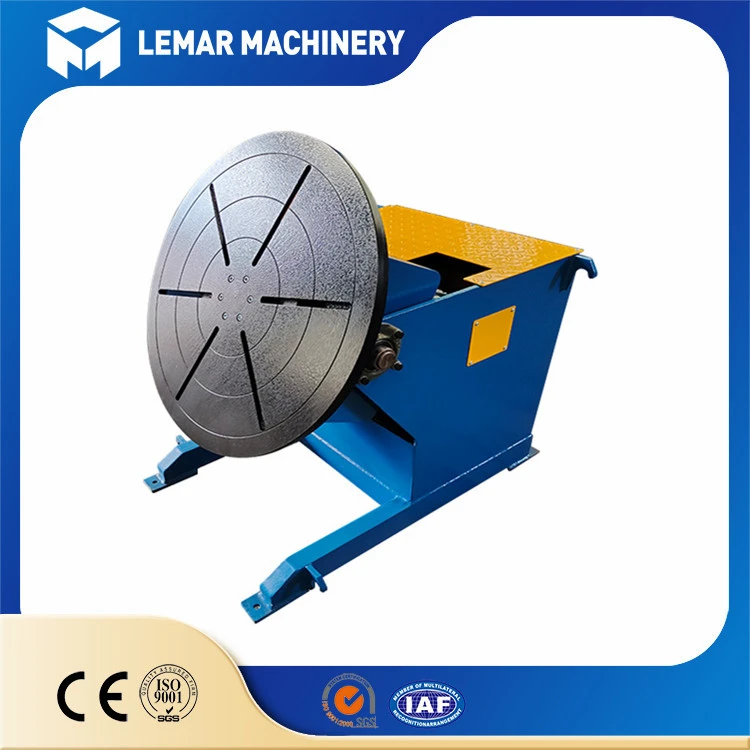

Benchtop welding positioner has a degree of freedom for overall flipping, which allows the work to be flipped to the ideal welding position for welding. There is also a degree of freedom for rotation. This type of positioner is suitable for the welding of heavy duty and medium-sized complex structures such as some pipes, shafts, flanges,disks, etc.
Positioner Features
Different structures are available
Dual-axis horizontal rotary positioner,L-type positioner, Headstock tailstock welding positioner.You can choose according to your need.
Compact and simple structure

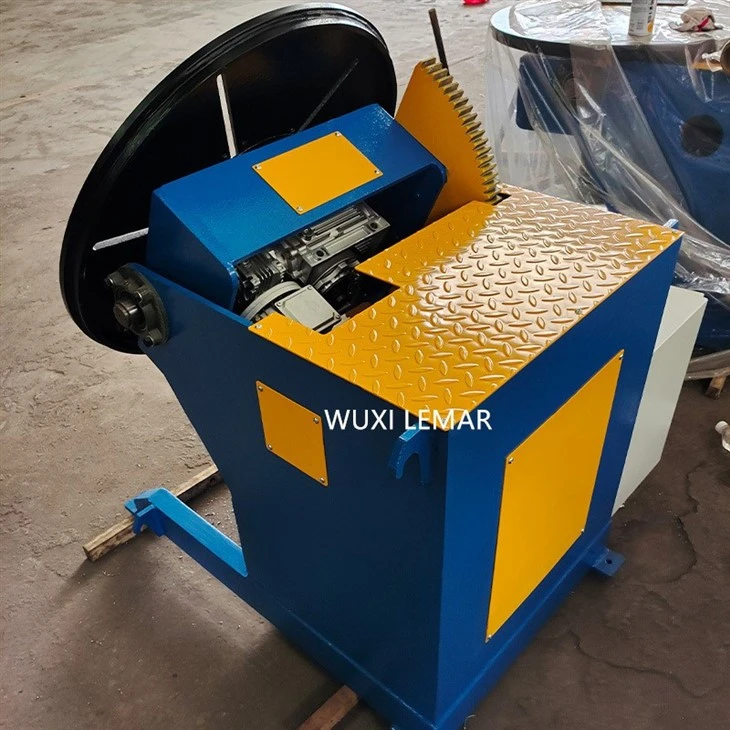

Flip and rotating working platform+motor reducer+machine body. The rotating motor is installed under the rotating table
Easy to control
Electrical part is composed of control cabinet, foot switch, etc.Forward and reverse rotation, speed adjustment, starting and stopping of the rotary table can all be realized on the electric control box
Products Detais
| Model | BWJ-800 | BWJ-1200 | BWJ-3000 |
| Loading capacity | 800kg | 1200kg | 3000kg |
| Turntable platform diameter | 1000mm | 1000mm | 1400mm |
| Rotate speed | 0.1-1rpm | 0.1-1rpm | 0.05-0.5rpm |
| Rotate motor power | 0.55kw | 0.75kw | 1.1kw |
| Flip motor power | 0.75kw | 1.1kw | 2.2kw |
| Tilt angle | 0-120° | 0-120° | 0-120° |
| Max rotate diameter | 1350mm | 1350mm | 2200mm |
