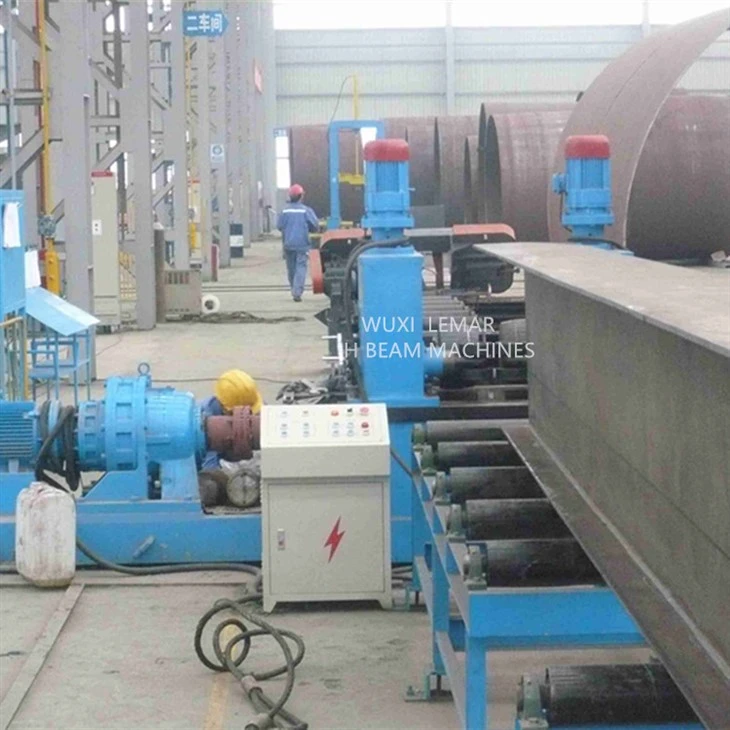

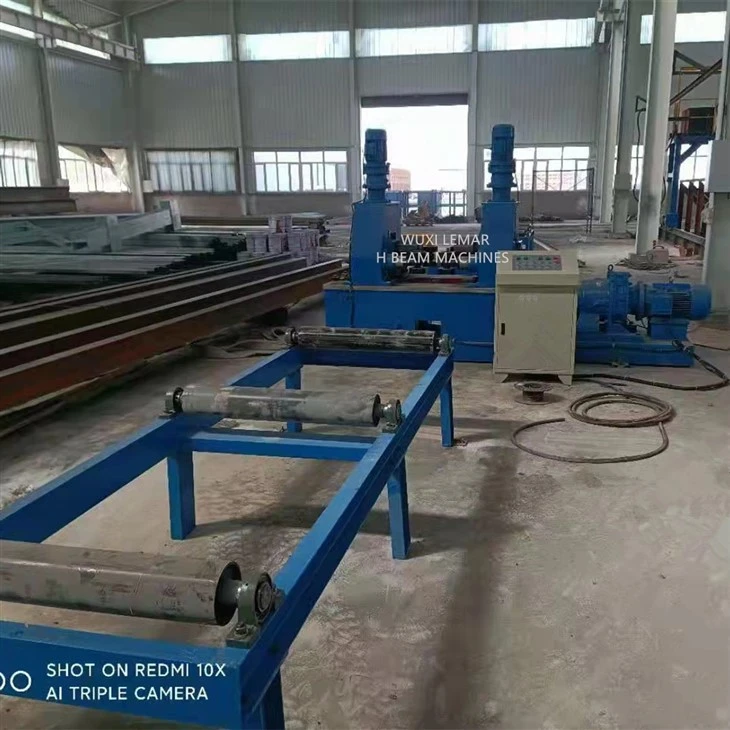

Beam Steel Straightening Machine

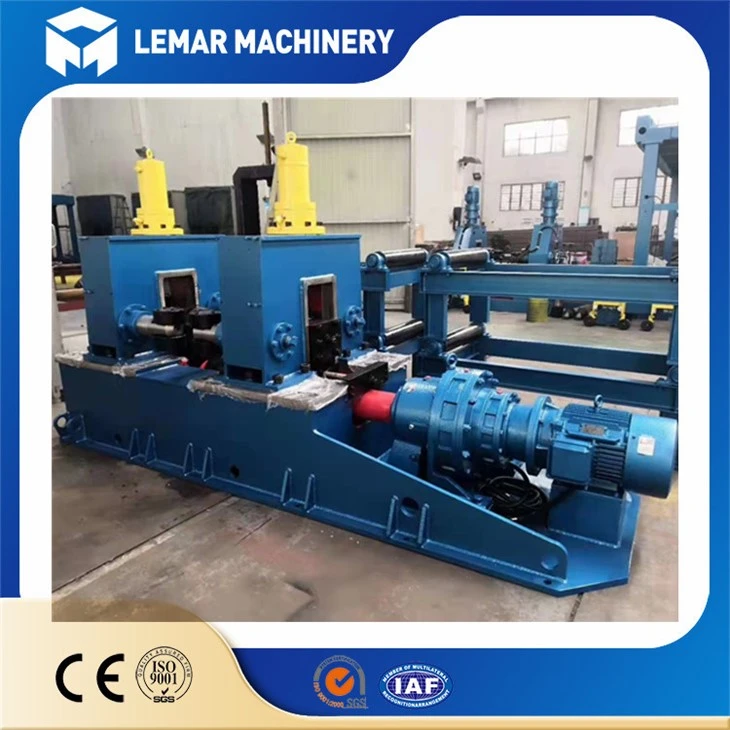

Beam steel straightening machine is composed of main motor, reducer, active roller, correcting roller device, active roller lifting cylinder, web and flange plate clamping device, main frame, machine base, front and rear conveying roller table, hydraulic system, electrical system, etc.
The equipment has compact structure, high strength and sufficient rigidity.
Products parameters
Model:JZJ-60B
Straightening type:Hydraulic
Flange thickness:60mm
Material:Q235/Q345
Flange width:200-1500mm
Web height:≥350mm
Straightening speed:6.4m/min
Power of machine:27KW
Warranty:1 year
OEM:Yes
Delivery time:30 days
Products specification
Our company is the first manufacturer to launch this product in China and successfully promoted in batches, and has been put into use in many domestic and foreign manufacturers, and achieved good results.
The driving wheel of this beam flange straightening machine is made of forging and pressing, the material is 35CrMo, and the hardness is HRC50-55. (35CrMo: high strength, toughness and hardenability, used as large section gears and heavy drive shafts, rolling mill herringbone gears, large motor shafts, turbine generator spindles.
Good comprehensive mechanical properties after quenching and tempering ,a widely used quenched and tempered steel, used for shaft parts and crankshaft cranks, automobile steering knuckles, connecting rods, bolts, gears, etc.)
