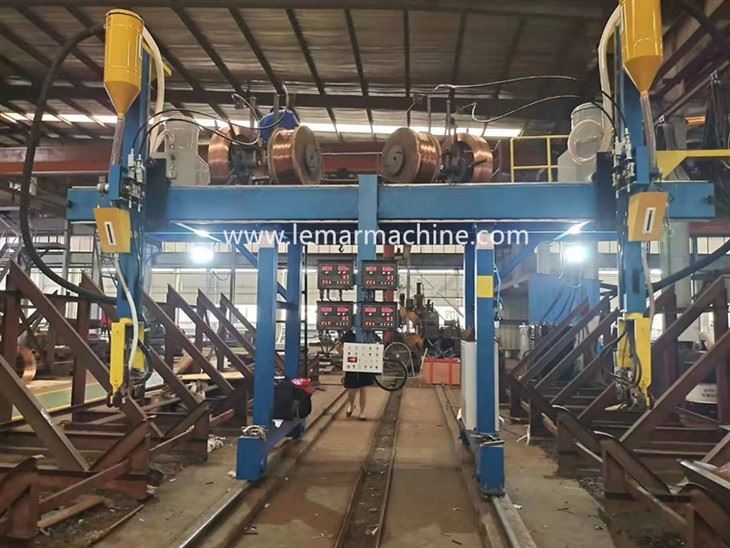

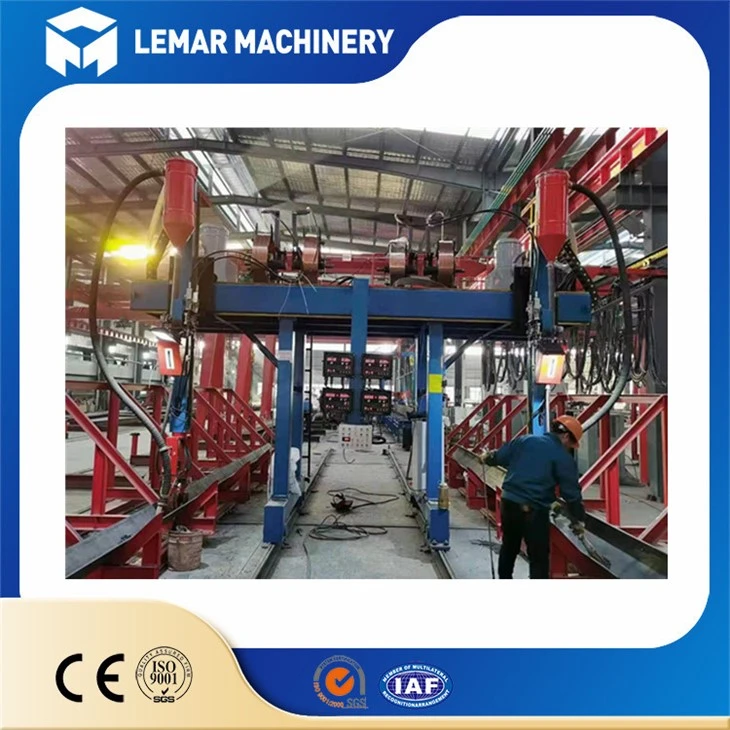

Steel H Beam Submerged Arc Welding Machine
Steel H Beam Submerged Arc Welding Machine is mainly used for arc welding of heavy steel production lines and ultra-high H-beam steel. It can be used in machinery manufacturing, steel structure construction and other industries.
Products Features
1. The welding seam is smooth and beautiful. The depth of the foot of a weld can reach 8-12mm, which does not require high welders' operating skills.
2. All welding parameters are controlled by the control cabinet panel, and the operator can conveniently and timely adjust the current, voltage, welding speed and other parameters.
Products parameters
|
Model |
guide distance |
control mode |
allowed web height |
allowed flange width |
allowed length |
welding speed |
load power |
|
SXBH-20 |
4000mm |
middle |
200-1200mm |
200-800mm |
4000-15000mm |
0.24-2.4m/min |
9kW |
|
side |
200-1500mm |
9.74kW | |||||
|
5000mm |
middle |
200-1800mm |
10.44kW | ||||
|
side |
200-2200mm |
||||||
|
5500mm |
middle |
200-2200mm |
|||||
|
side |
200-2500mm |
Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.
Function: The cross arm effectively stretch and lift. The welding head can adjust up and down, left and right. Standing column turns, vehicle moves.
The cross arm operation accuracy: ≤ 1mm/1000m.
Welder optional: Automatic SAW, CO2 MAG/MIG, TIG welder.
Optional function: Flux recovery and transmission machine, video monitor, welding seam sway, automatic tracking, arc length control, platform for worker.
Products Details
Equipment quality commitment
All the products our company produced for H beam box beam production line are compliant to national and enterprises standard.
We will send workers to the working site of the buyer for engaging in and instructing the installation and test, until the equipment is ready for use freely. We also train the equipment operator and maintenance staff for user.
