Product description

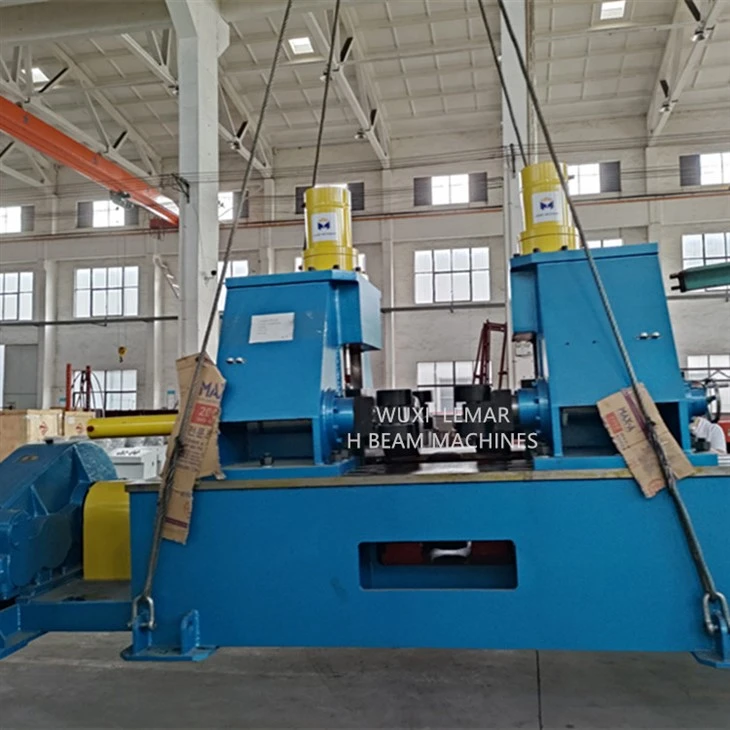

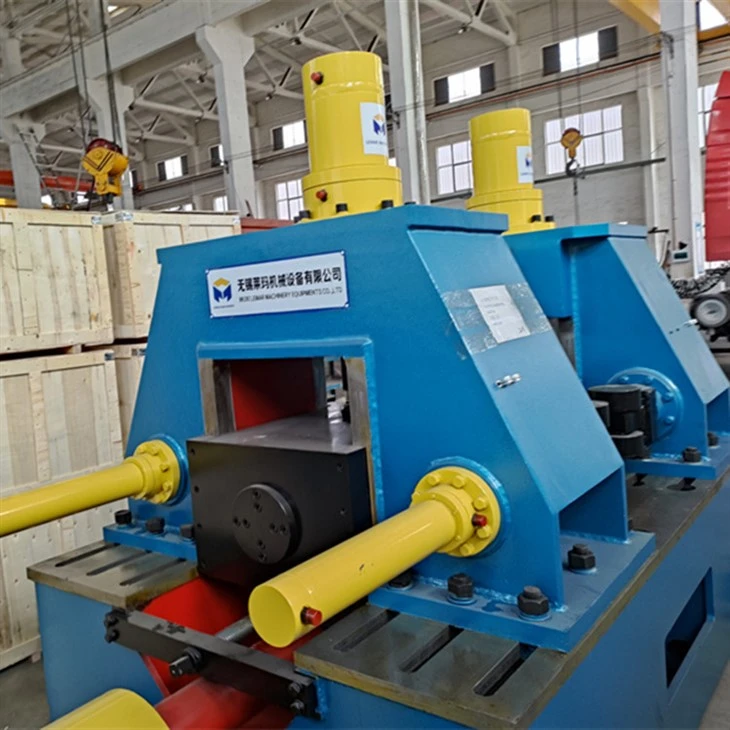

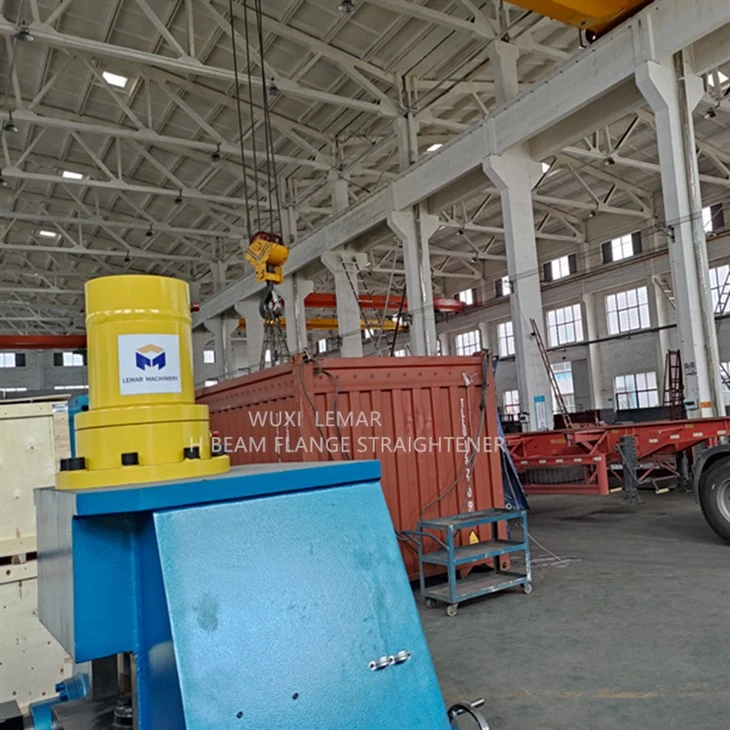

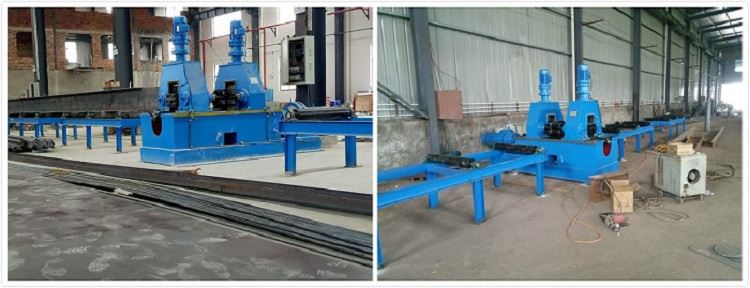

H-beam Hydraulic Straightening machine is an H-beam straightening machine developed by our company. The main drive system adopts big motor, driven by cycloid gear reducer, with high transmission efficiency and fast straightening speed. All straightening rolls are made of high-quality steel and undergo advanced heat treatment to ensure long-term stability. There are no defects such as cracks during use. All parts are reinforced. This machine is equipped with an operation box, which is easy to operate.
Product specifications
Model | Mechanical | Hydraulic | ||
JZJ-600 | JZJ-800 | JZJ-60B | JZJ-80B | |
Thickness | ≤ 20mm | ≤ 40mm | ≤ 60mm | ≤ 80mm |
Tensile strength of flange | ≤ 420Mpa | ≤ 420Mpa | ≤ 600Mpa | ≤ 600Mpa |
Flange width | 150-600mm | 200-800mm | 200-800mm | 200-1000mm |
Web height | ≥ 160mm | ≥ 350mm | ≥ 350mm | ≥ 500mm |
Straightening speed | 5.7m/min | 17.0m/min | 6.4m/min | 6.0m/min |
Power of machine | 9Kw | 14Kw | 37Kw | 44Kw |
Weight | 7000Kg | 9000Kg | 25000Kg | 28000Kg |
Main Features
1. Equipment structure types: Stationary;
2. The correct form: Mechanical or hydraulic;
3. Equipment usage: Simple structure, convenient operation, capacity, correct speed, high degree of
Automatic;
4. Correction: High quality alloy wheel material after heat treatment, surface hardness and endurable
Wear-resisting performance;
5. Electrical system: The cabinet control.
Flange straightening machine
After the T-shaped steel or the H-shaped steel is welded, it enters the correct position, using the working principle of the hydraulic cylinder top swing. The transmission efficiency is high, the straightening speed is fast, the straightening rollers are all made of high-quality alloy steel, and through the use of advanced heat treatment processes, the parts are prone to cracks and defects, so as to ensure the correct stability and long service life and strengthen all of them. The components are all operated by a closed control box, which is easy to operate.
Technical documents
User manual (including electrical diagram, the vulnerability of figure, etc)
Shipping list
The certificate
Input/output roller bed including: Input/output roller bed each 2.6 * 4 meters.
Electronic assembly including: Electric cabinet, operation box and accessories.
Spare parts including: 1 set
Equipment quality promise
1,Our Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, Our company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability,no matter automatic welding machine or CNC Plasma flame cutting machines.
3, Our company may send engineers to the demand-side participation to help guidance of installation and commissioning of this H beam hydraulic flange straightening equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, we can track service and maintenance.
