Horizontal Rear Welding Machine
After rear welding machine with mechanical, electrical, hydraulic and pneumatic technology in one, it will be run by spot welding spot welding machine molding of h steel by means of single arc Twin-wire submerged arc welding welded h -shaped steel.
Products parameters
Welding speed: 0.3~1.9m/min
Roller speed: 9.3 m/min
Motor power: 0.55 kW
Roller motor power: 0.75x4 kW
Flux recovery machine power: 3 kWx2
Hydraulic station power: 5.5 kW
Scope of Supply
Roller conveyor: 3.4 m 8
Flux recovery system: flux recovery machine 2 units, trash, flux, pipes and valves
Submerged arc welding machine: Lincoln welder DC-1000 type 2
Hydraulic system: hydraulic station 1, hydraulic cylinders, tubing
Electric control system: electric control box 1
Production Process
Roller conveyor H steel conveyer after welding machine → host lifter adjust Web height → host
Pressure pressing h steel flange plate → pressing mechanism with host Web Web press → adjust → open → flux feed switch of the welding torch welding flux recovery switch → start → open → off → flux feed switch shut the end of welding flux recovery switch.

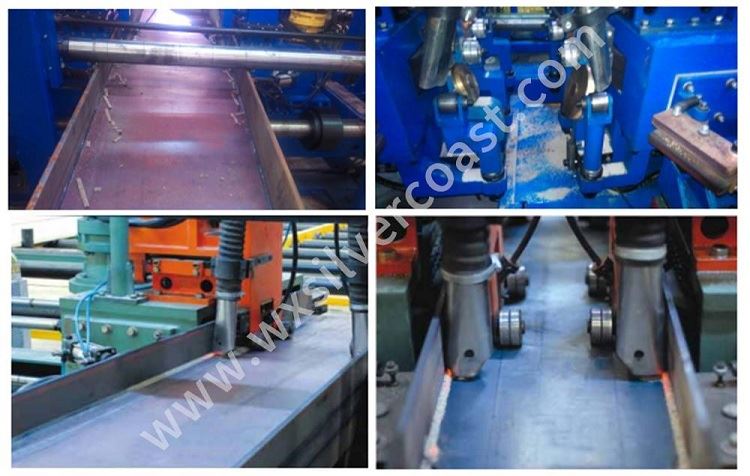

Products application
