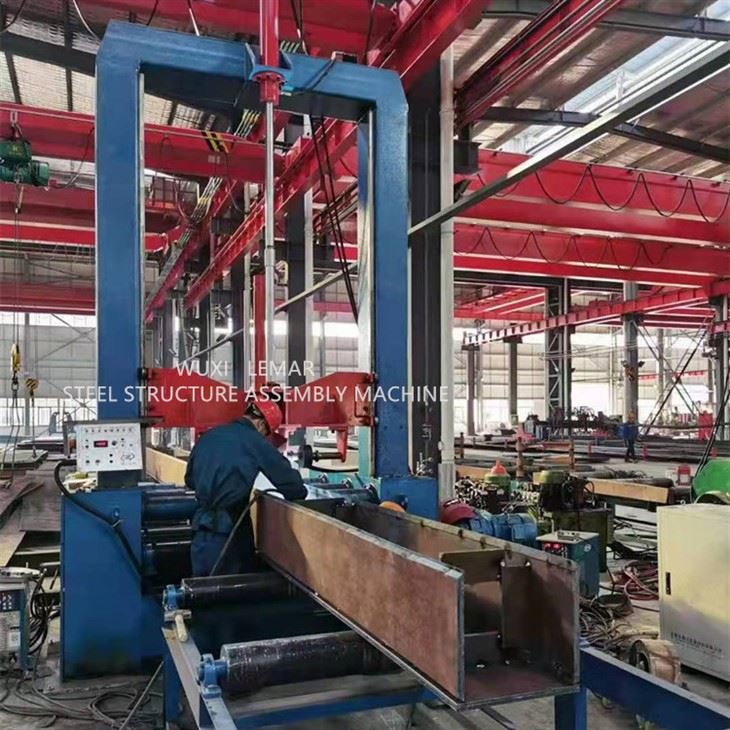

Product Description:

The Automatic Spot Welding Assembling Machine has the functions of flange and web tightening correction, positioning and automatic spot welding. It adopts Japanese Mitsubishi programmable controllers and AC inverters, as well as well-known brand Yuan electrical appliances. The arc tracking device is equipped with a welding gun to ensure the quality of spot welding.

Product Feature:

With automatic spot welding function, but the gas shielded welding machine is provided by the customer.
The input and output rollers are each 2.6 meters*3 sections, 2 sets of tie rod systems. Another set of manual support device;
Applicable wing plate width 150-1000mm, web height 160-2500mm, wing plate and web thickness 6-80mm;
The wing plate and web plate are automatically centered and clamped to avoid frequent measurement and adjustment of the center during the assembly process, which saves time and effort.
The upper and lower screw rods of the wing plate and web centering clamping wheel are advanced, and the rectangular guide rail slides and expands. It is not easy to wear after long-term use. If worn, the gasket can be adjusted and replaced to restore the factory accuracy.
The web clamping wheel adopts a four-group arrangement of front and rear, and a two-layer combination structure, which can correct the curvature of the web and assemble it, improve the accuracy of the assembly, and solve the phenomenon of assembly tail wobble;
The upper pressing wheel and the spot welding position are on the same plane. After compaction, the spot welding ensures the accuracy of the assembly.
The off-center H-shaped steel of the web can be assembled, ranging from 75mm to 500mm;
The clamping wheel at the end adopts an eccentric shaft connection structure, which can fine-tune the centering accuracy.
There is a web and wing alignment device at the output end of the equipment;

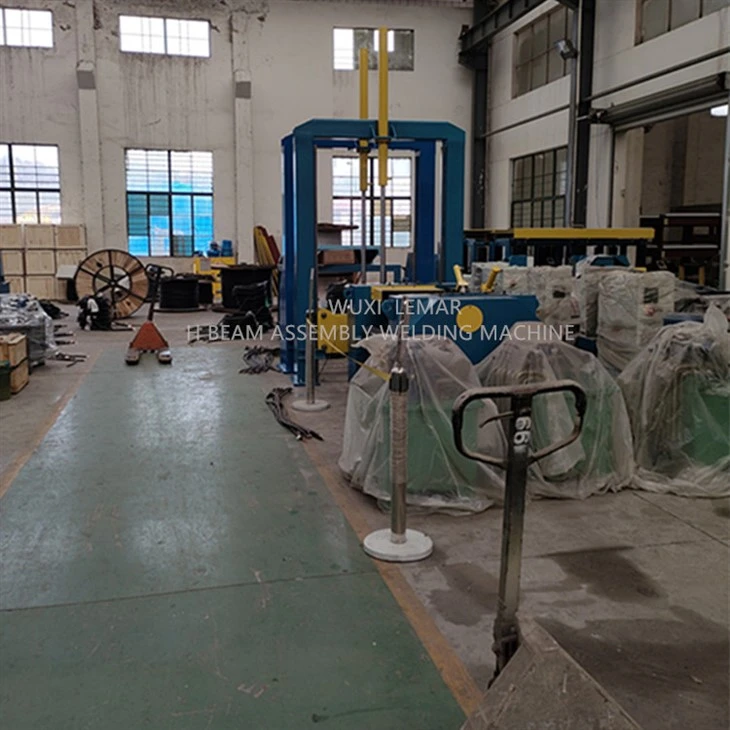

H BEAM ASSEMBLY WELDING MACHINE

FAQ:

1. Are you a trading company or a factory?

---Our factory covers an area of 200,000 square meters, has an excellent and professional technical team, 15 R&D personnel, a professional after-sales service team, and about 150 workers, producing more than 2,000 machines per year.

2. Does your company provide and manufacture machines that meet customer needs and specifications?

---Yes, we can customize the machine according to your requirements.

3. Compared with competitors' machines, what are your advantages?

---Our machines components are all from famous brands, and we have a strict quality control system, process technology system, and technology innovation system.

4. Is the machine guaranteed?

---We provide a one-year warranty. During this period, if any part is damaged, we will send new parts to customers for free, and we will provide online technical guidance for free.

5. Can I visit your factory?

---Welcome to visit our factory, we are only 40 minutes away from Shanghai by car.

6. How to get a faster quotation?

---When you send us an inquiry, please provide your required information:

• What is the material of H-beam?

• What is the minimum and maximum thickness of the web?

• What is the minimum and maximum thickness of the flange plate?

• What is the minimum and maximum flange width?

• What is the minimum and maximum web height?

• What is the size of your workpiece?

This information helps us quickly choose the right equipment solution and price.
