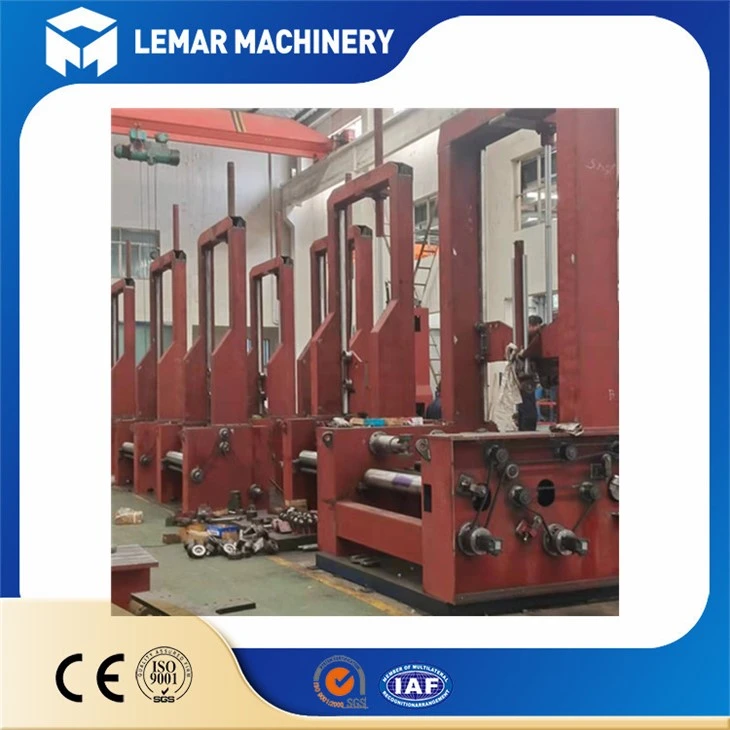

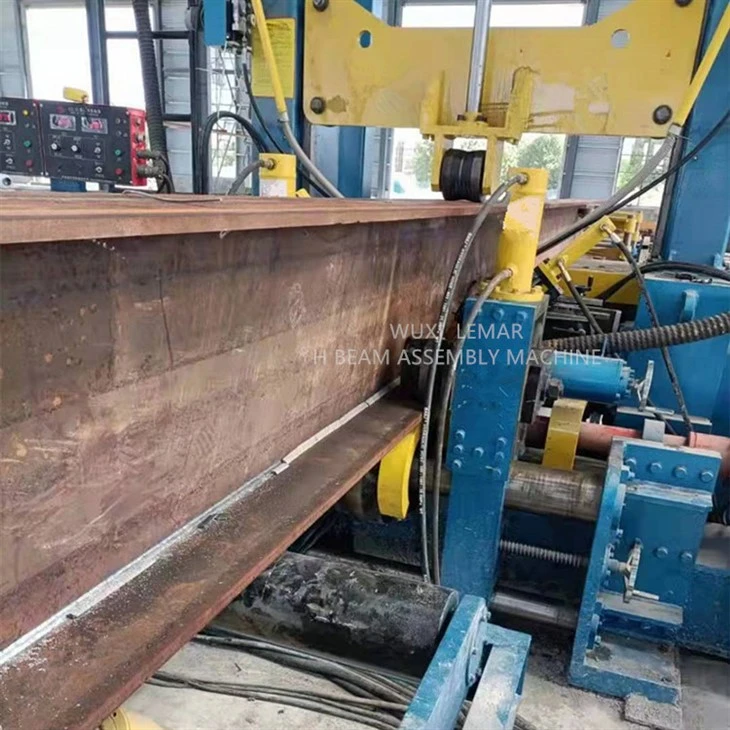

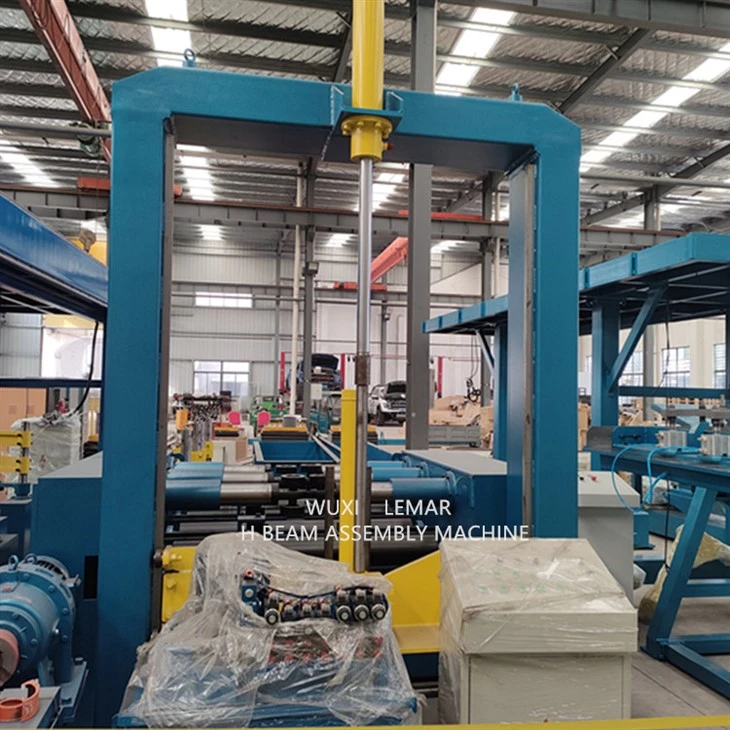

Structural Steel Beam Assembly
H beam assemblying machine is composed of seven parts:
-
Main frame
-
Tie rod system
-
Main drive
-
Input roller
-
Output roller
-
Hydraulic system
-
Electric control box
Products parameters
| Model | ZL15 | ZL18 | ZL20 |
| Web height | 200-1500mm | 200-1800mm | 200-2000mm |
| Web thickness | 6-50mm | ||
| Assembly speed | 0.5-6m/min | ||
| Total power | 12KW 380V 50-60HZ | ||
Products Features
The main components of Structural Steel Beam Assembly are welded structures, which have high strength and light weight. Important parts have been treated to eliminate internal stress and are not easily deformed.
The positioning and centering action of the machine is driven by the hydraulic system. Other positioning methods: take the centerline of the steel ruler, manually position it, and press it by the hydraulic cylinder.
Remote wall positioning method: The electric flange and the web can be pressed simultaneously or simultaneously. A positioning device is added to the machine mast to align the flange and the web. The web ensures the flatness of the plane part of the H-shaped steel.
Input and output roller table assembly: total roller table 2.6m/section×6 sections
Hydraulic system: oil pump station, high-pressure hose, hydraulic cylinder, etc.
Electrical control system: electrical cabinet, AC inverter, etc.
