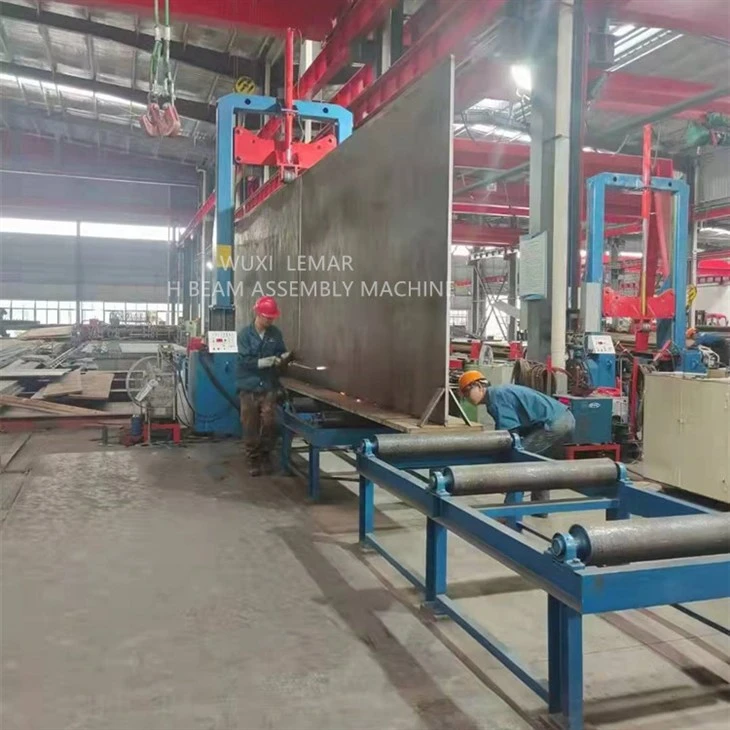

PEB Structural Steel Assembly Machine
PEB Structural Steel Assembly Machine is used to assemble H-beams of different sizes. Both H-beam and C-beam can be assembled on this machine. It is an important part of the profile steel production line.
Wuxi Lemar ZL1500-ZL2500 H beam hydraulic assembly machine can basically cover the dimensional requirements of ordinary H-shaped steel webs and wing plates. Through the hydraulic clamping device, the automatic alignment of the web and wing plates can be achieved, ensuring that within the specified range, Precise positioning of plates of different widths and automatic gas-shielded welding help you save labor costs and improve the production efficiency of H-beams.
Products parameters
| Model | Z15 | Z18 | Z20 | Z25 | |
| Web size | Height | 200-1500mm | 200-1800mm | 200-2000mm | 200-2500mm |
| Thickness | 6-32mm | ||||
| Flange size | Width | 200-800mm | |||
| Thickness | 6-40mm | ||||
| Beam length | 4000-1500mm | ||||
| Assembly speed | 0.5-6m/min | ||||
| Total power | 9.5kw | 9.5kw | 9.5kw | 11.5kw | |
| Welding mode | Manual/Automatic spot welding | ||||
Products features
PEB structural steel Assembly machine features as below:

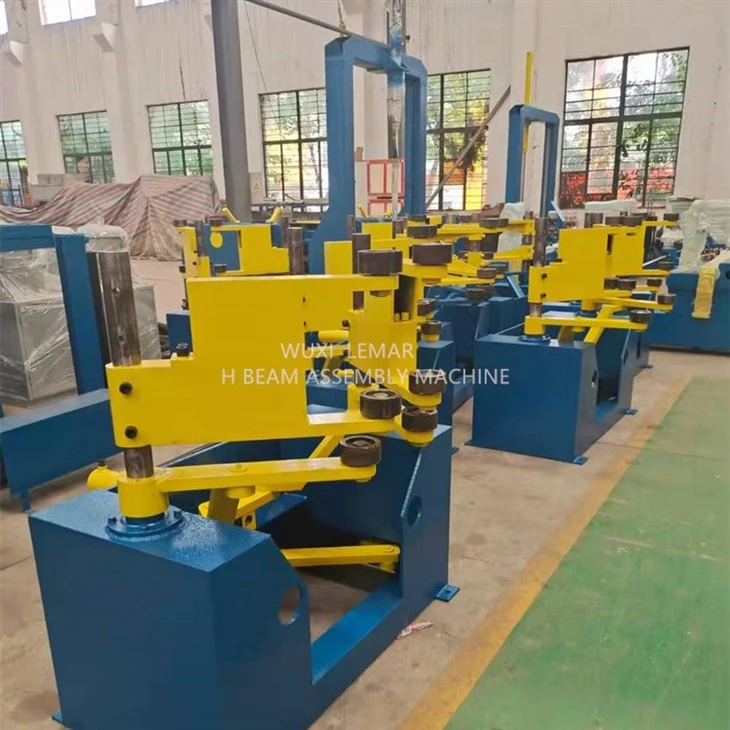

The H-beam automatic assembly machine adopts hydraulic transmission for the positioning of the web and wing plates, and the two sides are clamped and centered by mechanical synchronization, which can ensure the positioning of different widths and wing plates within the specified range.
The end of the H-shaped steel assembly machine is equipped with a hydraulic automatic lifting stopper, which can ensure that the ends of the frame and wing plate are aligned during the assembly.
The upper pressure beam is guided by the left and right four sets of guide rails to ensure the stability during compression.
The number of roller tables can be lengthened and reduced arbitrarily according to user requirements and workpiece length.
The hydraulic system adopts the standard hydraulic system products of Sino-foreign joint ventures and is equipped with a fine filter to ensure long-term reliable operation of the solenoid valve.
