Assembly Welding Straightening H Beam Welding Line

Introduction

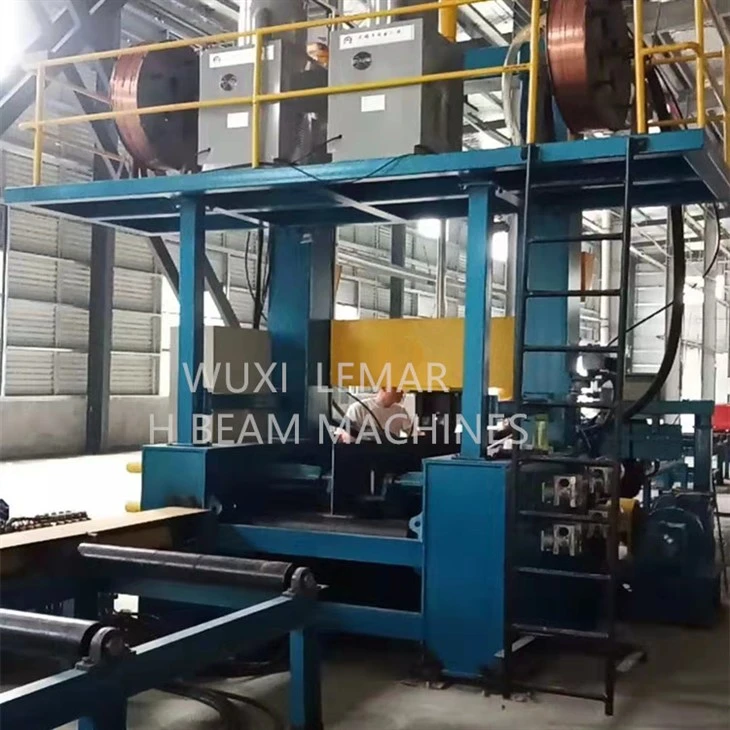

The Assembly Welding Straightening H Beam Welding Line has a compact appearance and integrates assembly, welding, and straightening functions. It eliminates the transfer of workpieces between different processes. It is a high-tech, cost-effective equipment.

Feature

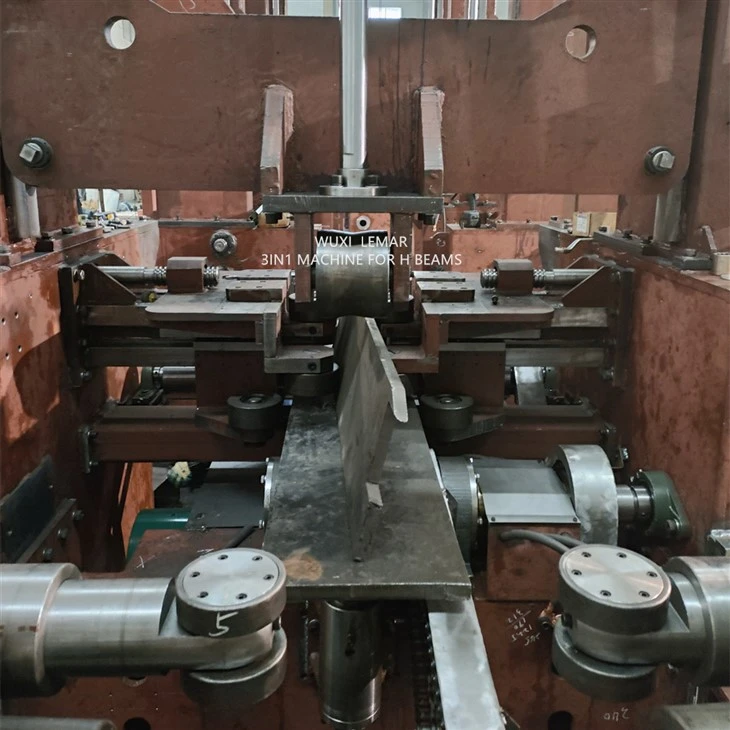

1.The main assembly unit adopts the heavy duty assembly machine patent which has been submitted for approval. The web and flange are positioned automatically, with highly improved accuracy and efficiency.

2. The endurable welding guns fix device can adjust height as well as horizontal move place. It can also adjust the welding guns angle from 2 positions. So the welding seam can be nice and neat.

3. Assisting straightening part has unique design. The two straightening wheels could actively straighten the work piece under cylinder drive. From the straightening device, the user can see clearly the welding seam, easy for welding gun position adjustment and observation of welding seam.

4. The main assembly unit together with assistant straightening unit could be used as assembly-weld machine or assembly machine separately.

5. After modification, the straightening unit could be used as mini straightening machine

Documents:

1, Instruction manual, including electric and hydraulic illustrative diagram and easy damaged parts list.

2, User manual of frequency converter, hydraulic bump station.

3, Packing list

4, Certification

5. Foundation drawing for installation.

Need to be prepared by customer:

1, foundation of installation (supplier provide drawing)

2, anchor bolts and expansion bolt.

3, complete machine basic drawing.
