Products Description
This SAW H beam welding machine is gantry type,upright column and upper platform are made of national standard profiles to avoid deformation caused by stress caused by excessive welding seams of the plates, ensuring safe and reliable operation of the equipment and long service life.
There are walking guide wheels on both ends of one side of the walking end beam, and the guide wheels are adjusted by the eccentric shaft to press the guide rail surface to guide, which ensures the stable and safe running speed of the frame
Standard rail width is 5 meters, and length is 18 meters (24kg/m rail and pressure plate and other accessories are provided by the customer), and the effective welding stroke is 15 meters.
We can do H beam automatic welding machine for you according to your beam request.
Effectively track welds in real time and reduce frequent adjustments to the welding gun due to workpiece deformation during SAW welding.

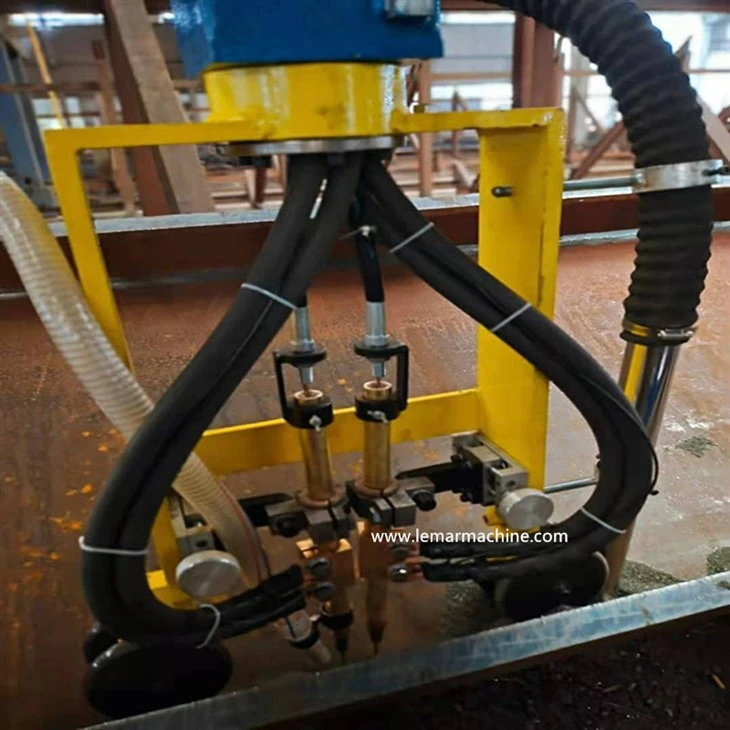

A spring device is added above the arc guide frame, and the two are flexibly connected to ensure that the four guide wheels can compress the profile steel welding when the welding is deformed, and at the same time can climb the welding of the variable cross-section beam (there is no such device from other suppliers).
Note: Our H beam Submerged arc steel welding machine is equipped with a pair of H-shaped steel arc guide frame and a pair of box-shaped beam guide arc frame. By replacing the arc guide frame, both H-shaped steel work-pieces (cross columns) and box beam work-pieces can be welded without dismantling.
Products Parameters
Item | Value |
Gantry gauge | 5000mm |
Track length | 18000mm,Effective welding stroke 15000mm (24kg guide rail, pressure plate and corresponding accessories are provided by the customer) |
Applicable H-shaped steel wing plate width | 140—800mm |
Applicable H-beam web height | 160—2000mm |
Applicable work-piece length | 4000—15000mm |
H-beam welding position | Boat welding (can be welded back and forth) |
Applicable cross column work-piece size | Minimum opening: 150mm, depth 500mm |
Applicable box beam work-piece section size | 300～1200mm(Need to replace the box beam guide arc frame welding) |
Applicable work-piece length | 4000—15000mm |
Box beam welding position | Plane V-groove welding |
Air pressure | 0.4-0.6Mpa (The use of welding box beam equipment needs to be equipped by the user) |
Mast moving speed | 240－2400mm/min (According to the height of the welding angle of the work-piece, select the diameter of the welding wire, select the appropriate welding process, and determine the welding speed) |
Return speed | 3m/min |
Welding wire size | φ4－φ5mm |
The weight of the wire reel bracket | 50-250kg |
Flux recovery machine | 50kg×2 |
Total installed capacity | Main body power： 9.7kW Welding machine power： around 100 kVA×2 |
Power | 3phase AC 380V 50Hz |
Working environment | Indoor temperature: 0℃-45℃, relative humidity ≤90% (non-condensing) |
Product Picture
Other line machines
CNC Plasma cutting
H beam Assembly
H beam Flange straightener
End face milling machine
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2. Q:What are your payment terms?
A: We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!
3. Q:How about the warranty?
A: There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence
4.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Wuxi(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
5.Q:Which contries did you have export to?
A:We have exported to India,Russia,USA,UK,Kuwait,Oman,Pakistan,South Africa,Bulgaria,Egypt,Vietnam,etc.
6.Q: How to install the machine?
A:As usual, our engineer will go to your plant to install the machine and train your workers after the machines arrive your plant.Most of time 1engineer 5-7days are OK.
If you have engineers and no need us to go, we can send you machine foundation drawing, electrical drawing and Manual documents to you, will cooperate with you very well.
7.Q:Can you make machine OEM?
A:Yes, we can. After machine finished, we can put your lable on it according to your requirement to help you get more new orders.
Customers in need, please feel free to contact us!
