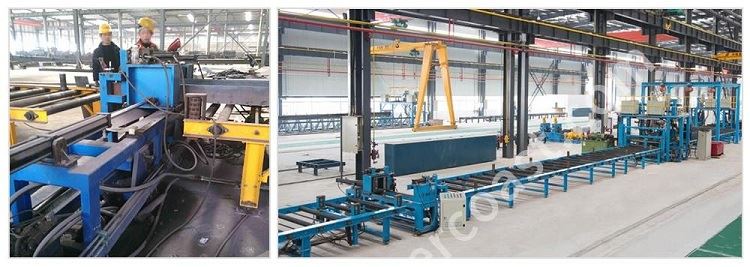

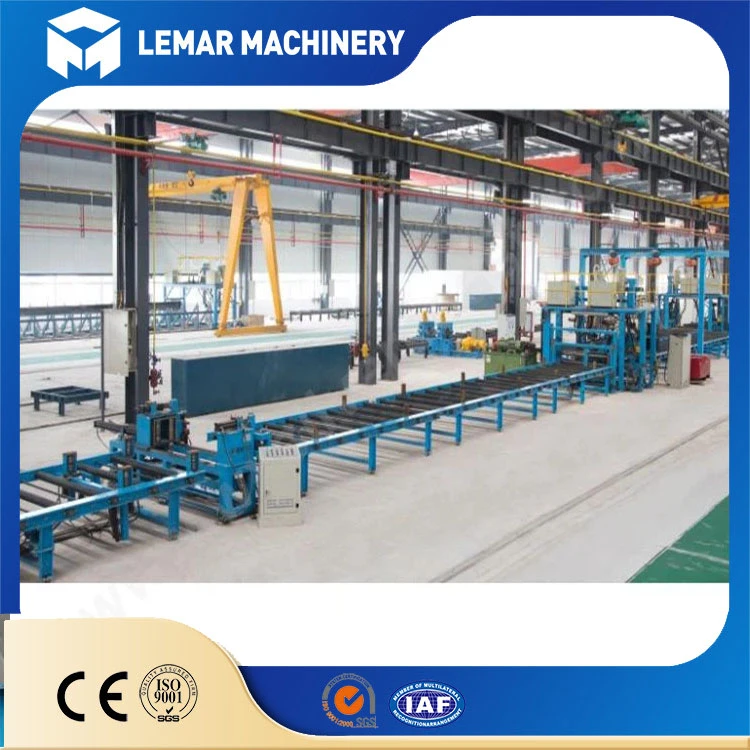

H beam End assembly machine
As a quality-oriented organization, we focus on providing our customers with high-quality H beam End assembly machine. The machine provided is manufactured with advanced components and advanced technology. The machines provided have different configurations and other related specifications to meet the various expectations of our valuable customers.
Products features
1. Horizontal forming H steel structure can be formed at one time to improve assembly efficiency.
2. Welding H-beam by horizontal welding can reduce welding deformation.
3. The single arc double wire welding method can significantly improve the welding speed.
Product Parameters
Web height 300-1500mm
Web thickness 3-12mm
Welding speed 0.3-1.9m/min
Wing width 150-500mm
Wing thickness 5-20mm
Process Flow
A article abdominal Board hanging put to roll road middle → two article wing Board hanging put to roll road on both sides → roll Road will abdominal Board wing Board conveying to host → flange Board flip institutions will wings Board erected → flip institutions reset → abdominal Board lifting institutions will abdominal Board uplift in place → ban end Department on align → end Department manual spot into h shaped → abdominal Board lifting institutions declined → roll Road will artifacts conveying to group welding machine.
