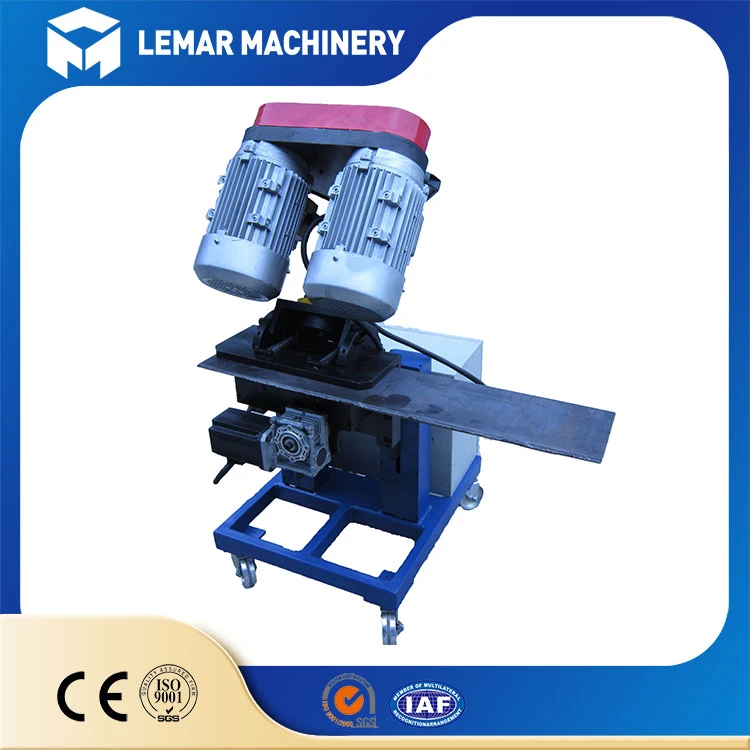

2046 Plate Beveling Machine
LK-M- 2046 groove machine can automatically process the welded groove with a width of 12 (20) mm on a steel plate with a thickness of less than 60 mm and a tensile strength of less than 60kg/mm. According to the actual needs, it can be machined to a width of 46 mm on the slope according to the actual needs of the steel plate with a thickness of less than 60 mm and a tensile strength of less than 12 mm per minute. The groove angle can be adjusted arbitrarily in the range of 20 °~ 60 °.
Products parameters
Power: 2-.2.2KW
Voltage: 380V
Motor speed: 1450Turn / minute
Beveling speed: 0.5-1.2m/min
single processing groove volume: 20mm
Max width of groove(W)(multiple processing: 46mm
Beveling angle: 20º-60º
thickness of the groove steel plate: 10-60mm
Min width of steel plate: 100mm
Weight of the machine: 155Kg
Products Features
High quality transmission reducer with efficiency and stability.
Shock absorption to move with fast milling.
Process with electric and easy adjustable for worker to reduce labour cost.
Milling with high efficient and available V/Y type of Level
Processing material could be: Stainless stell, carbon steel, AL Alloy. Clad Plate. etg
