16 Seires Nitriding Welding Fixture Table

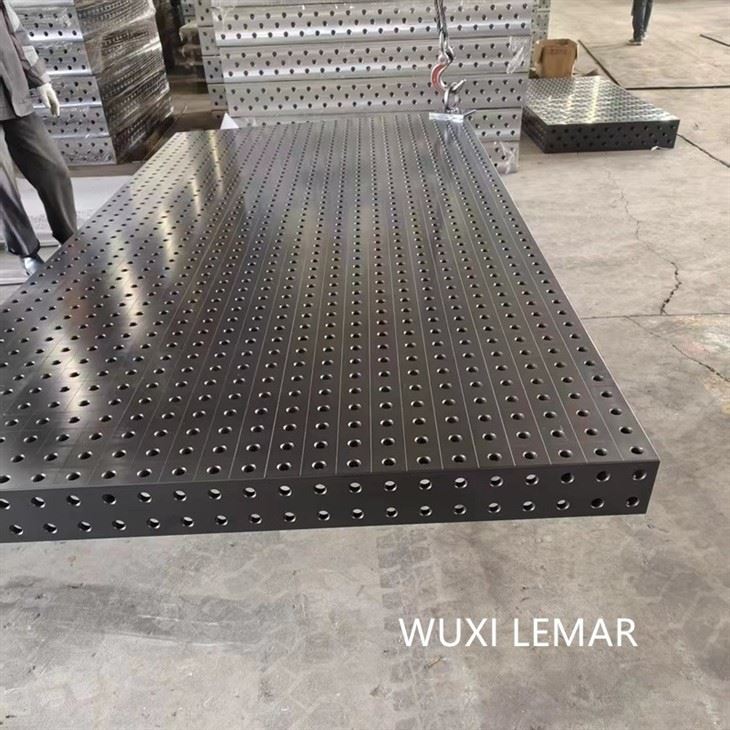

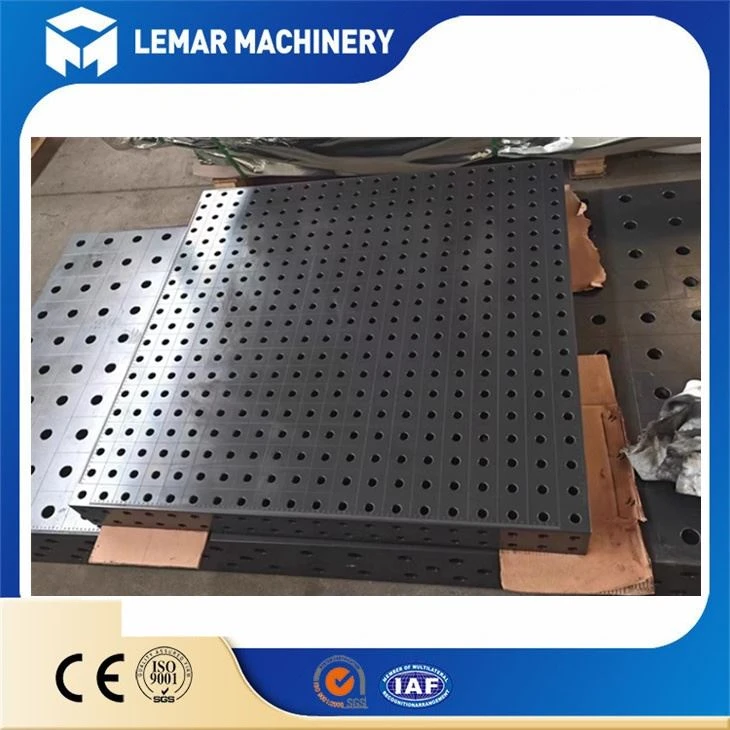

16 Seires Nitriding Welding Fixture Table is a professional welding tooling equipment, made of high-quality steel with surface nitriding treatment, and equipped with a standardized hole array system (usually a 16mm or 5/8-inch aperture grid). It is a modular, high-precision work platform specially designed for the precise positioning, clamping and welding of various metal workpieces, and is a core component of the tooling fixture system.
Feel free to contact me for more details↓↓↓
Products parameters
Products Specification
Workflow --
16 Seires Nitriding Welding Fixture Table
→ Process Planning:
◦ Analyze the workpiece drawing and determine the positioning datum
◦ Plan the clamping point positions and welding sequence
→ Workbench Configuration:
◦ Select 16 Seires Nitriding Welding Fixture Table of appropriate size
◦ Splice multiple workbenches if necessary
→ Fixture Assembly:
◦ Install locating pins and stoppers using standard holes
◦ Configure standard fixtures such as pressers and supports
◦ Install special customized fixtures (if required)
→ Workpiece Clamping:
◦ Locate and clamp the workpiece in sequence
◦ Check the accuracy of all positioning points
→ Welding Operation:
◦ Perform welding in the predetermined sequence
◦ Multi-station simultaneous operation is possible
→ Disassembly and Maintenance:
◦ Loosen the fixtures and take out the workpiece
◦ Clean the workbench surface and check the condition of the nitrided layer
Products Display
Products Advantages
Our Advantages
★. Ultra-long service life: The nitrided layer greatly extends the service life of 16 Seires Nitriding Welding Fixture Table (usually 3-5 times that of ordinary workbenches)
★. Extremely high repeat precision: Ensures consistency in mass production
★. Versatility: Suitable for various processes such as welding, assembly, and inspection
★. Quick changeover: The standardized fixture system significantly reduces tooling preparation time
★. Reduced welding deformation: Rigid structure + reasonable clamping effectively control thermal deformation
★. High return on investment: Long-term use cost is lower than traditional customized tooling
Customer Review
Product Certification
FAQ
FAQ
01.What's the lead time for orders?
02.What documents do you provide for export?
03. How do I place an order?
04.Which payment methods are supported?
16 Seires Nitriding Welding Fixture Table is a professional tooling platform with high precision and durability, representing the advanced level of modern welding tooling. Its core value lies in solving the pain points of traditional welding workbenches, such as easy wear and poor precision retention, through surface nitriding technology. Combined with a standardized hole array system, it achieves a perfect integration of flexibility and precision in tooling.
This kind of workbench is particularly suitable for manufacturing environments with mass production and high-precision requirements, and has become a standard configuration in high-end manufacturing fields such as automotive and aerospace. It can not only significantly improve welding quality and production efficiency, but also bring long-term economic benefits to enterprises by reducing tooling replacement time and maintenance costs. As the manufacturing industry's requirements for precision and efficiency continue to increase, the application range of nitrided welding fixture workbenches will further expand.
