Modular 3D Welding Tables
Product Description
Basic Definitions

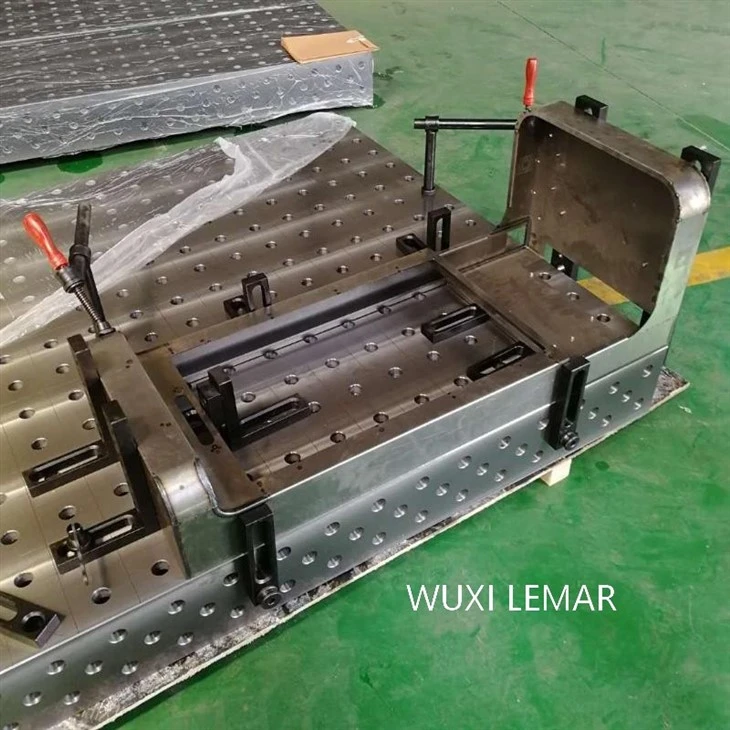

Modular 3D Welding Tables are a highly flexible and reconfigurable welding fixture system.
It consists of flat plates with standard grid holes and workbench frames. Together with various fixture elements, it can quickly and accurately position and clamp welding workpieces.
Products Parameters
product Specification
product key technologies
Of Modular 3D Welding Tables
1. Workbench Main Body

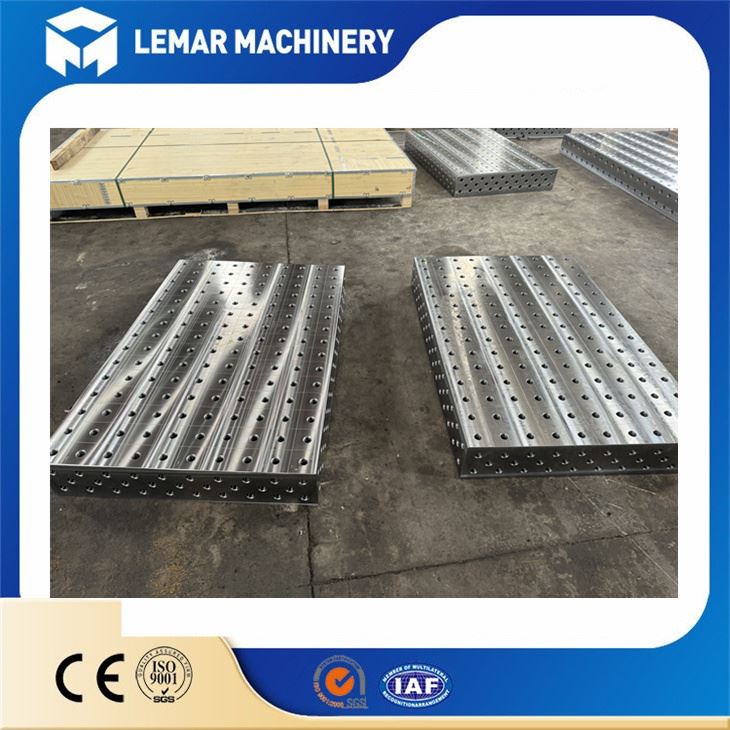

Tabletop: Usually made of high-strength cast iron or steel, with a precisely arranged standard hole array on the surface (common hole pitches include 28mm, 50mm, 100mm, etc.)
Frame Structure: Provides stable support, with adjustable height or equipped with a moving device
Surface Treatment: Usually undergoes heat treatment or a special coating to improve wear resistance and corrosion resistance
2. Fixture System
Locating Pins: Used for precisely positioning workpieces
Clamping Devices: Various mechanical, hydraulic, or pneumatic fixtures
Supporting Elements: Height-adjustable support columns, angle blocks, etc.
Connecting Elements: T-nuts, bolts, etc. used to fix various fixtures on the tabletop
Products Advantages
Shorten preparation time: Compared with traditional welding fixtures, the setup time can be reduced by 70 - 90% after using Modular 3D Welding Tables.
Improve production efficiency: Quickly switch welding processes of different products.
Reduce costs: One set of system can meet the needs of various products, reducing investment in special fixtures.
Improve quality: Precise positioning reduces welding deformation and errors.
Space optimization: Compact design saves workshop space.
Products Delivery
In summary,modular 3D Welding Tables is particularly suitable for the modern manufacturing environment with multiple varieties and small batches, and it is one of the important tools to achieve flexible manufacturing.
