Modular Welding Table with Fixture System

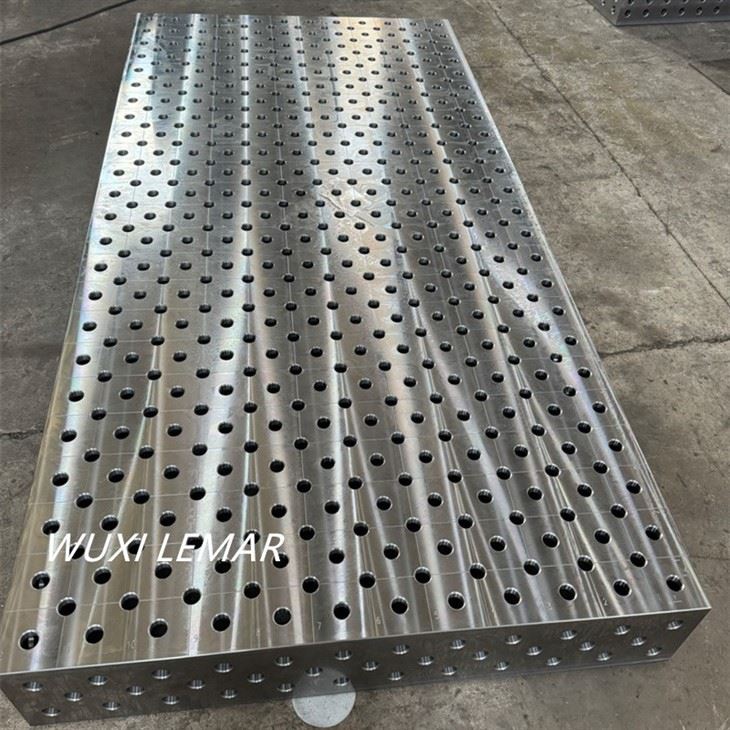

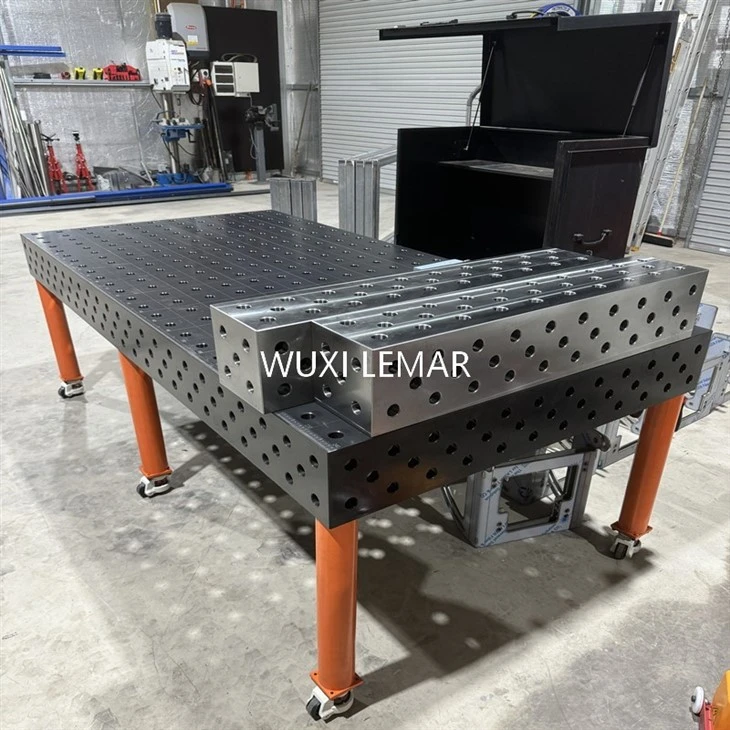

Modular Welding Table with Fixture System, which is "a modular welding table equipped with a fixture system", is a complete tooling solution that integrates a high-precision basic platform and a set of standardized, interchangeable fixture components. It is not an isolated table, but an "industrial construction system" used for quickly building, reusing, and accurately reproducing welding and assembly workstations.
Feel free to contact me for more details↓↓↓
Products parameters
Products Specification
Core Features and Working Principles
--Modular Welding Table with Fixture System

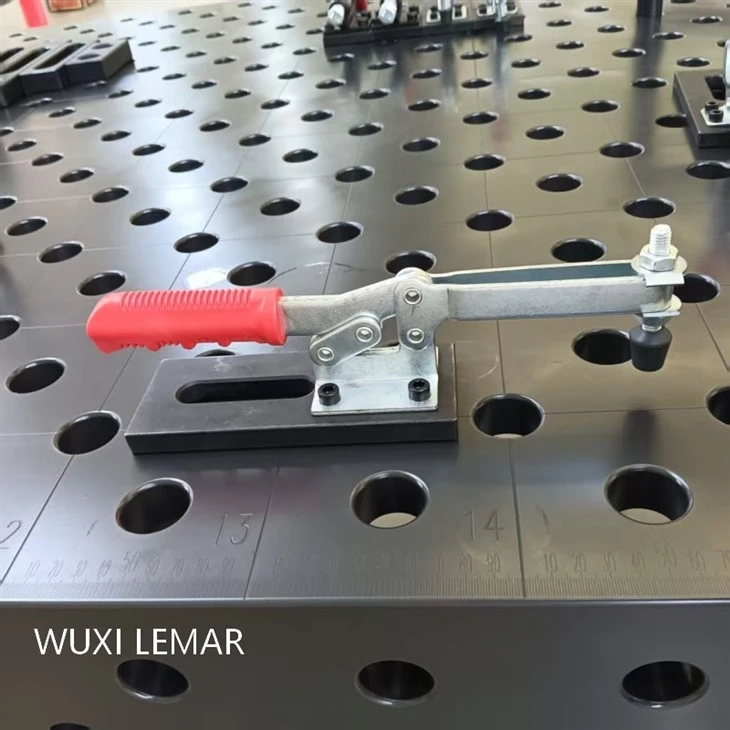

★Modularity and Standardization: All fixture components have a unified interface (usually based on 28mm holes or slots), which can be arbitrarily combined, connected, and expanded on the grid of the platform like "Lego" blocks.
★High Precision and Repeatability: The machining accuracy of the platform hole system is high (within ±0.05mm), and the fixture components are also precision-manufactured. Once the position of the components is determined with positioning pins and locked, the entire clamping scheme can be accurately reproduced countless times, ensuring the consistency of mass-produced products.
★Unparalleled Flexibility: By changing the combination of standard components, the same system can build a dedicated clamping station for new products with completely different shapes and sizes within minutes or hours.
★Systematic Thinking: Modular Welding Table with Fixture System sells a set of methodologies for solving problems, not just hardware. What users purchase is the ability to "quickly build any tooling".
Products Application
Application Fields
◆The entire process from research and development to production: product prototype trial production, small-batch production, and even medium-batch manufacturing.
◆Various metal processing industries: machinery manufacturing, automotive and parts, rail transit, engineering machinery, agricultural machinery, metal furniture, chassis and cabinets, robot body welding, etc.
◆Tooling and fixture manufacturing: using the system itself to manufacture and inspect other tooling.
◆Education and training: Modular Welding Table with Fixture System is used to cultivate modern manufacturing concepts and senior technicians.
Customer Review
Product Certification
FAQ
FAQ
01.What's the lead time for orders?
02.What documents do you provide for export?
03. How do I place an order?
04.Which payment methods are supported?
Modular Welding Table with Fixture System is the physical embodiment and ultimate practical tool of the modern flexible manufacturing concept. By transforming "specialized" into "universal" and "fixed" into "variable", it resolves the fundamental contradiction among flexibility, precision, and cost in the manufacturing industry.
It is not just a set of equipment, but a revolution in production methods. For any enterprise that aims to enhance competitiveness, respond to market changes, and move towards lean and agile manufacturing, investing in such a system is not about purchasing a "tool", but investing in the "core infrastructure" and "strategic capability" of future manufacturing. It represents a paradigm shift from "creating fixtures for products" to "generating fixtures with a system".
