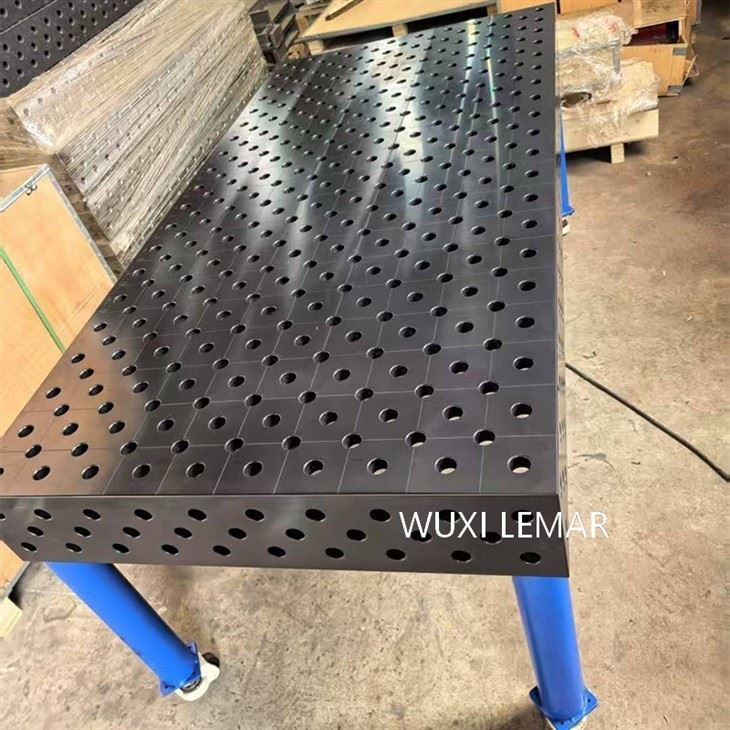

Five Sides Welding Table

► Five reference planes:
◦ Upper working surface: Used for main workpiece placement, positioning, and welding.
◦ Four vertical side surfaces: Five Sides Welding Table can serve as lateral positioning references, used for fixing the side of the workpiece, installing support columns to suspend and support the workpiece, or building complex three-dimensional tooling frameworks.
►Unified precision hole system:

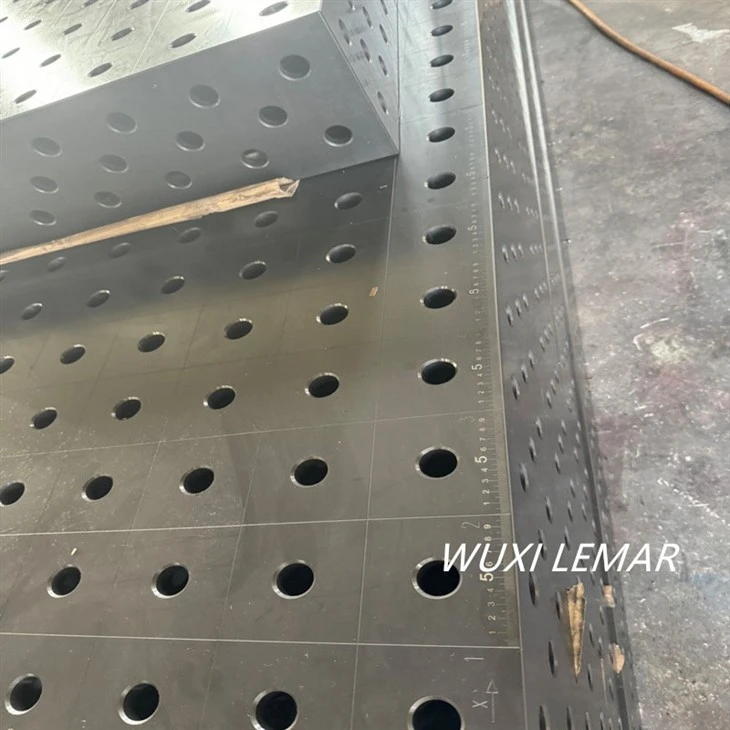

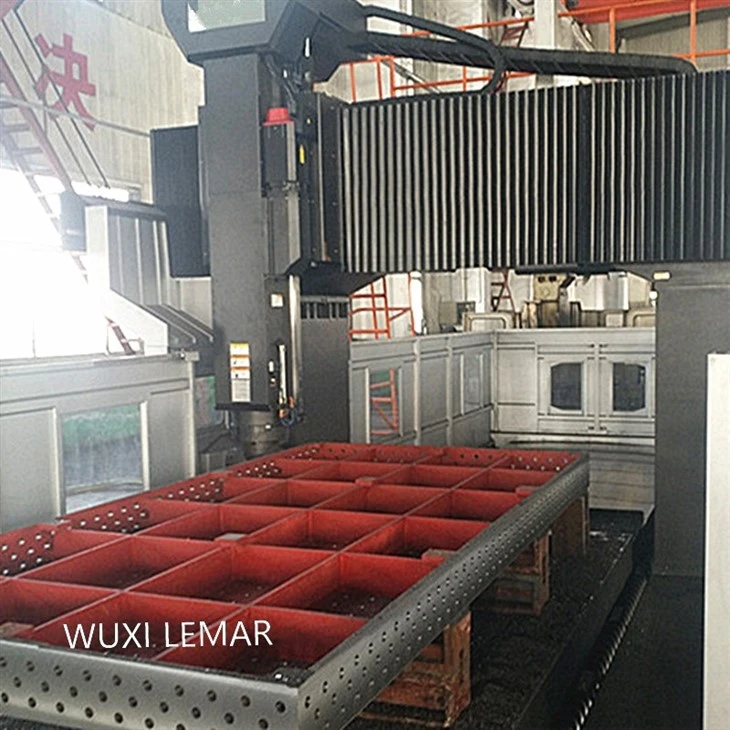

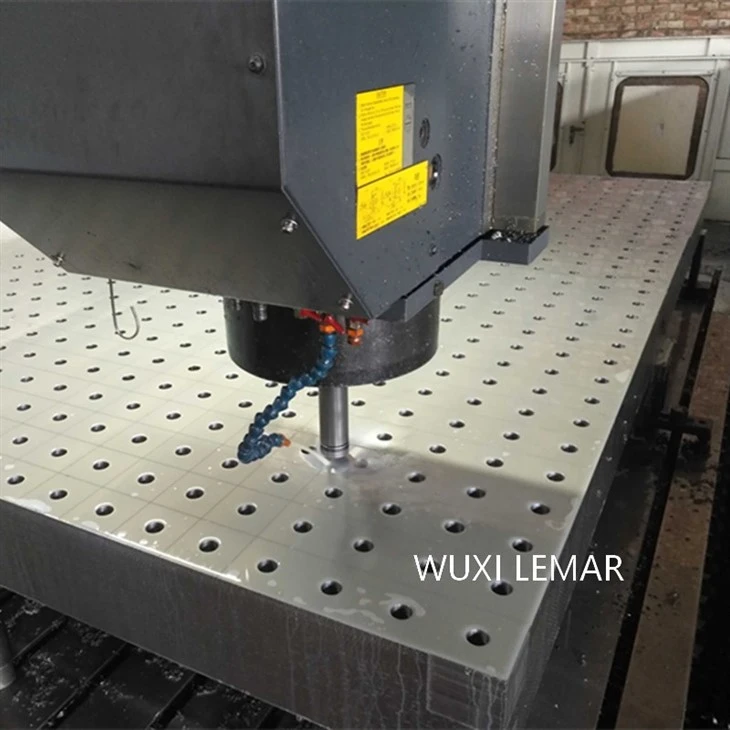

◦ The positioning holes (usually standard 28mm diameter grid holes) on the five surfaces have extremely high mutual positional accuracy. These holes are usually completed by a five-axis machining center in one clamping, ensuring the accuracy of all holes relative to the same coordinate system, which is the technical key to realizing the coordinated work of the five surfaces.
►True three-dimensional flexibility:

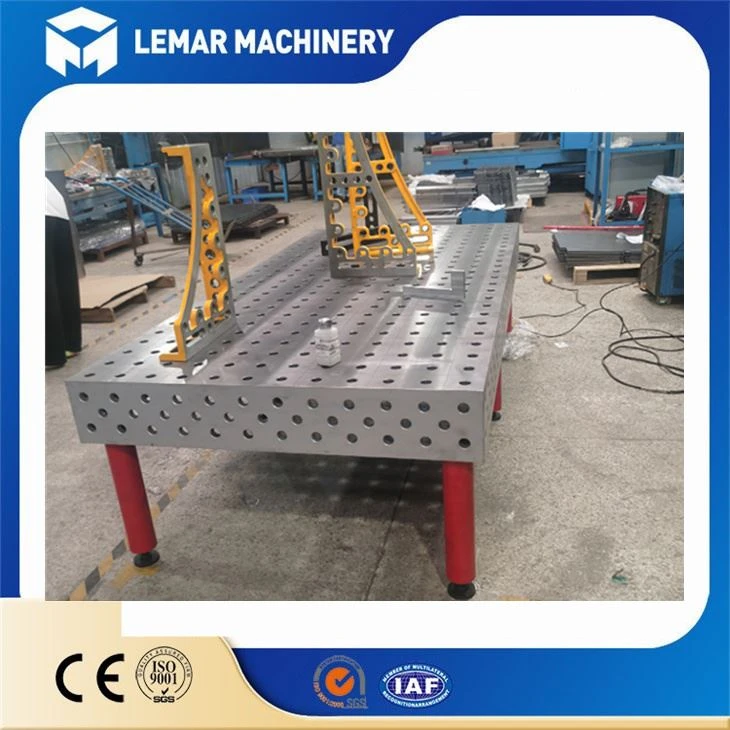

◦ This is the essential difference between it and ordinary single-sided workbenches. Users can easily install columns, angle devices, connecting plates and other modules on the side surfaces, extending the positioning and clamping functions to the space above and around the workpiece, and realizing all-round and multi-angle clamping of complex structural parts.
►Excellent rigidity and stability:
◦ Five Sides Welding Table is usually made of high-strength cast iron, with a heavy structure,经过 stress relief treatment, it can bear heavy loads, resist welding thermal deformation, and maintain accuracy for a long time.
