Fixture Welding Table Top
Fixture Welding Table Top is a high-precision industrial work surface designed for welding, assembly and fixture positioning. It is widely used in manufacturing, automotive, aerospace and other fields. Its core features are modularity, high rigidity, and repeatable positioning, which can significantly improve welding accuracy and efficiency. The following is a detailed introduction:

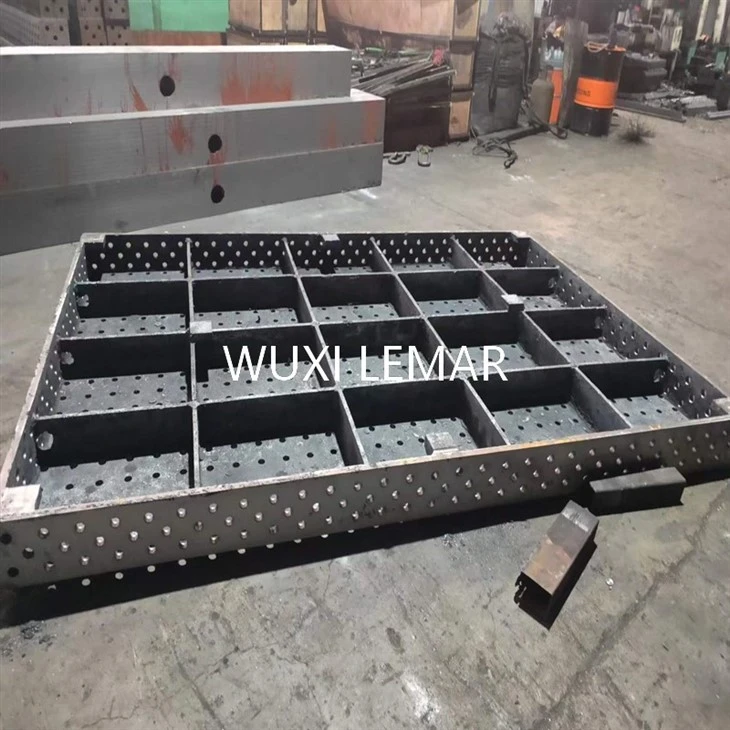

Basic structure and material
Material: Usually high-strength steel (such as S355J2G3) or alloy steel, the surface is heat treated (such as quenching) to enhance wear resistance and deformation resistance.

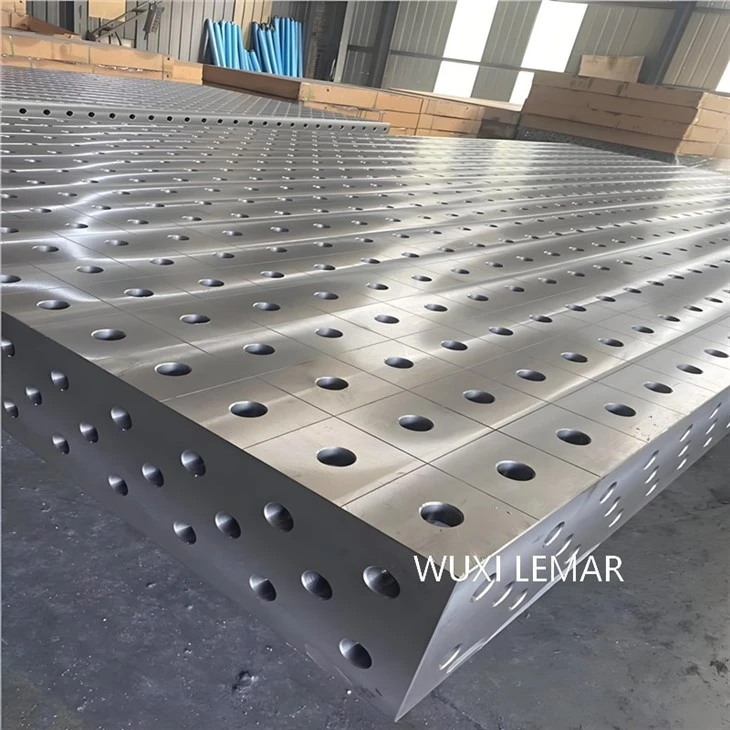

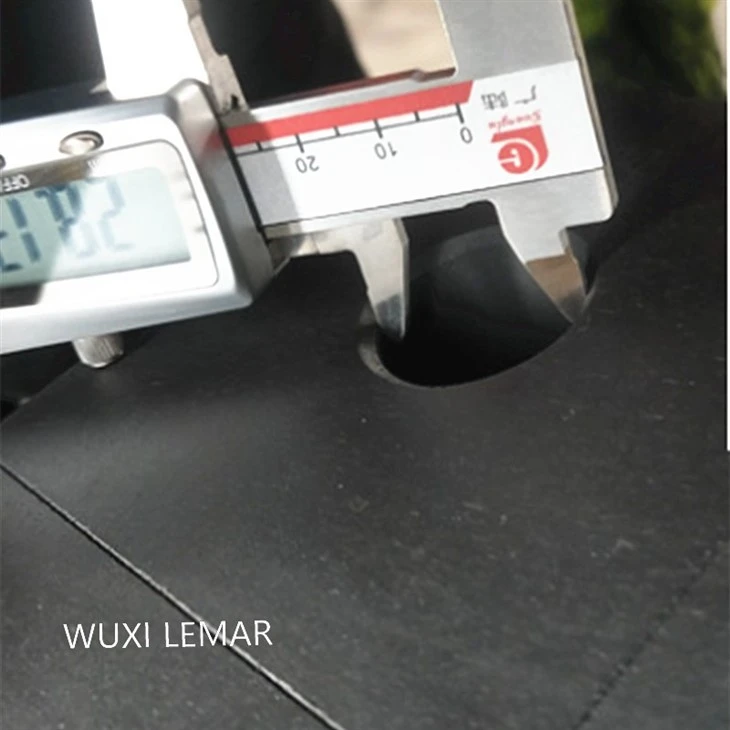

Structure: The table is covered with standardized hole arrays (such as D28 or M12 threaded holes), hole spacing is usually 50mm, 100mm or 200mm, andhole diameter tolerance is strict (±0.05mm) to ensureprecise installation of fixtures or positioning parts.
Surface treatment: anti-rust coating (such as galvanizing, spraying) or anti-stick coating (to prevent welding spatter from sticking).
Products Parameters
product Specification
product key technologies
Typical application scenarios

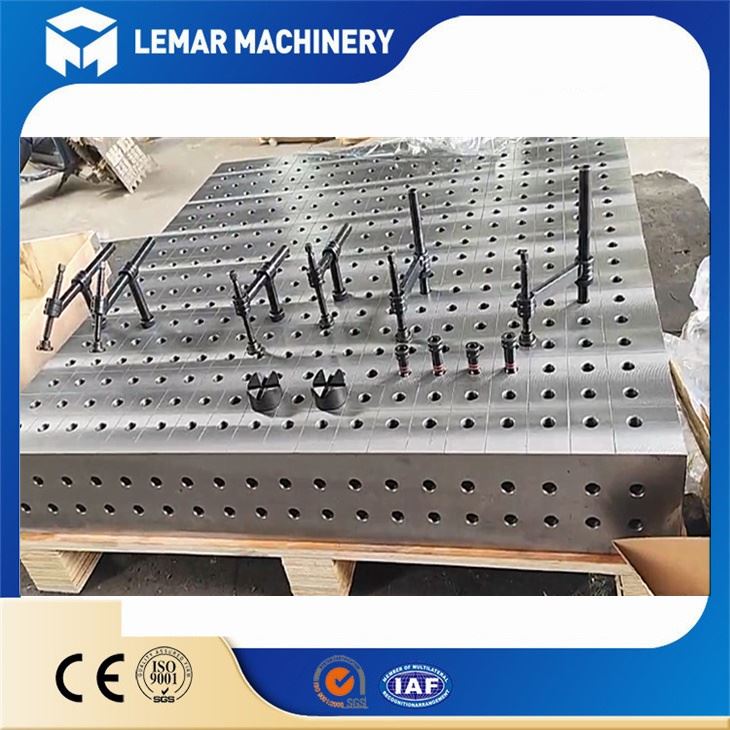

Welding fixture: Fix the workpiece and ensure the accurate welding position to reduce thermal deformation.
Assembly tooling: Used for pre-assembly of parts or bolt positioning.
Detection platform: Cooperate with measuring tools for quality inspection.
Automation integration: Cooperate with robot welding unit to realize automated production.
Selection points
Size: select the table size according to the size of the workpiece (common 1m×2m to 3m×6m).
Hole type standard: DIN (European standard) or ISO (international standard) hole system.
Load requirement: consider the weight of the workpiece and the clamping force.
Environmental adaptability: high temperature resistance, anti-sputtering design (such as anti-spark coating required in welding workshops).
