Weld Table With Fixture
The Weld Table With Fixture is a kind of tooling equipment specifically designed for welding operations. It combines a sturdy work platform and an adjustable fixture system to accurately position and fix workpieces during the welding process.
Main components Worktable surface:

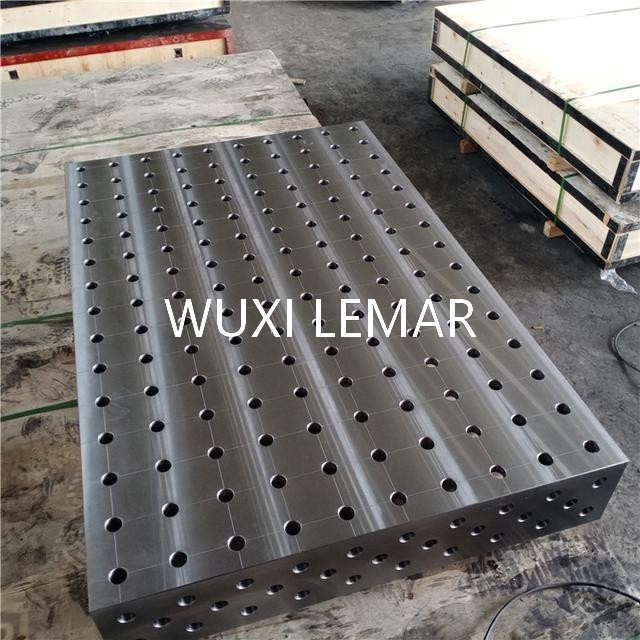

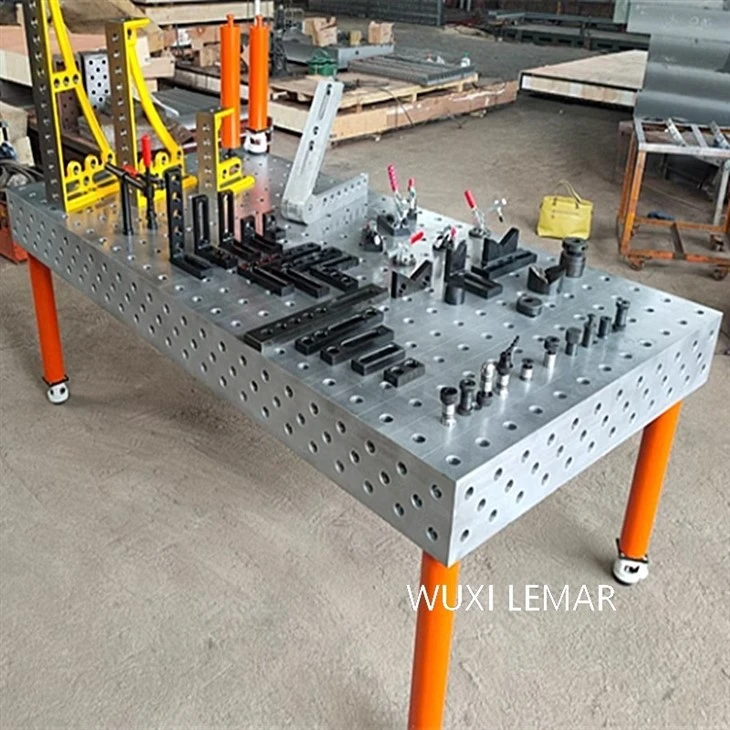

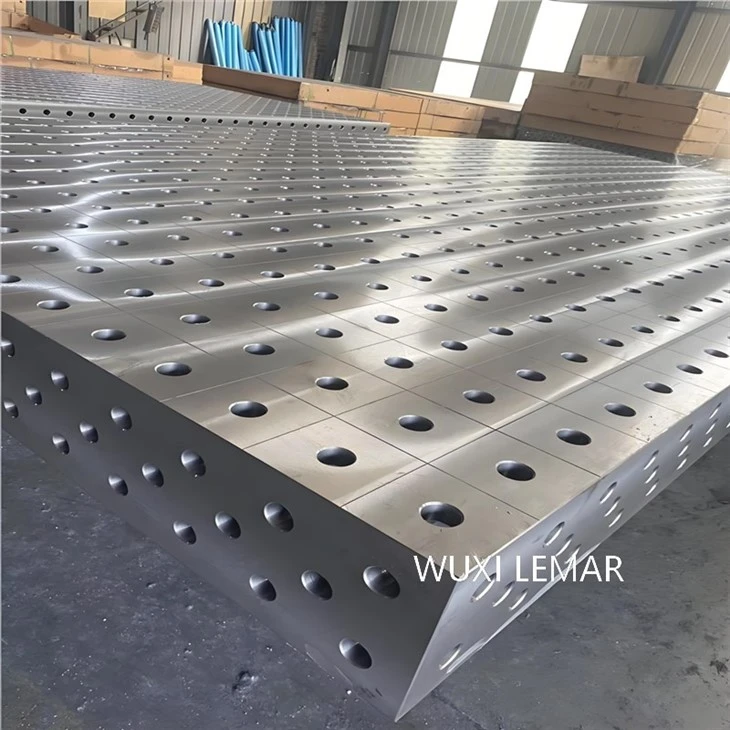

Usually made of high-hardness steel or cast iron. The surface has regularly arranged holes or grooves (commonly, there are DIN standard hole systems or square hole systems). Designed to withstand high temperatures and resist deformation. Fixture system: Various adjustable mechanical, hydraulic, or pneumatic fixtures. Quick clamping devices. Angle-adjustable fixtures. Special customized fixtures. Support structure: Heavy-duty steel frame. Height-adjustable design (manual or electric). Optional casters for easy movement.
Products Parameters
product Specification
Features of lEMAR Welding Table
Main functional features
Precise positioning:

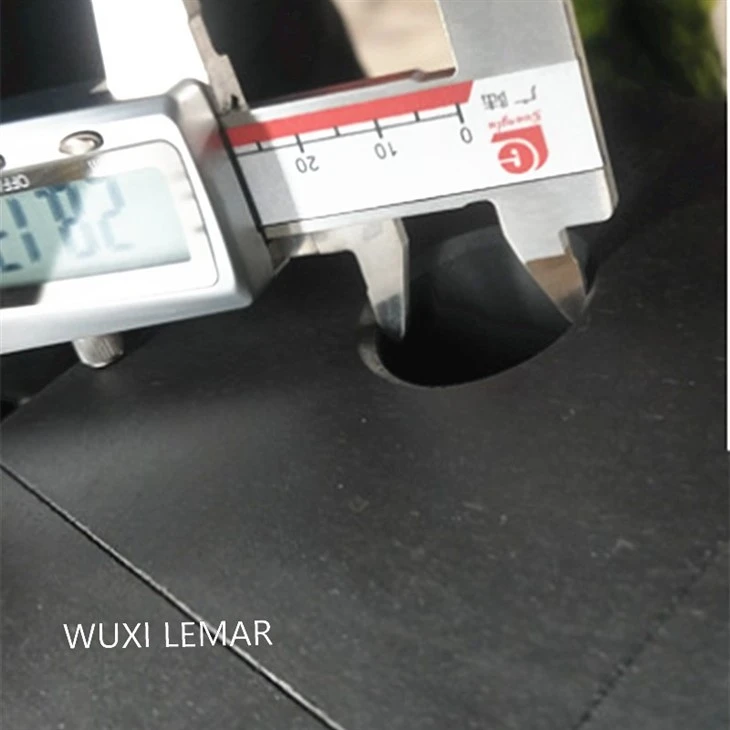

Achieve millimeter - level positioning accuracy of workpieces through fixtures and dowel pins.
Repeatable positioning ensures the consistency of batch products.
Versatility:
Adapt to workpieces of different shapes and sizes.
Can quickly replace fixtures to adapt to different products.
Efficiency improvement:
Reduce the workpiece clamping time.
Allow multi - station operation simultaneously. Can achieve semi - automated welding.
Safety performance:
Stably fix to prevent welding deformation.
Reduce safety hazards caused by manual support.
Maintenance
Clean the work surface and fixture regularly
Check the fasteners and moving parts of the fixture
Prevent the accumulation of welding spatter
Lubricate the moving parts regularly
Check the flatness of the table surface
The welding table with fixture is an important equipment in modern welding workshops, especially suitable for small and medium batches and multi-variety welding production, which can significantly improve welding quality and production efficiency.
Pick up your phone and feel free to contact us!
