28mm Modular Welding Fixture Table
what is 28mm Modular Welding Fixture Table?

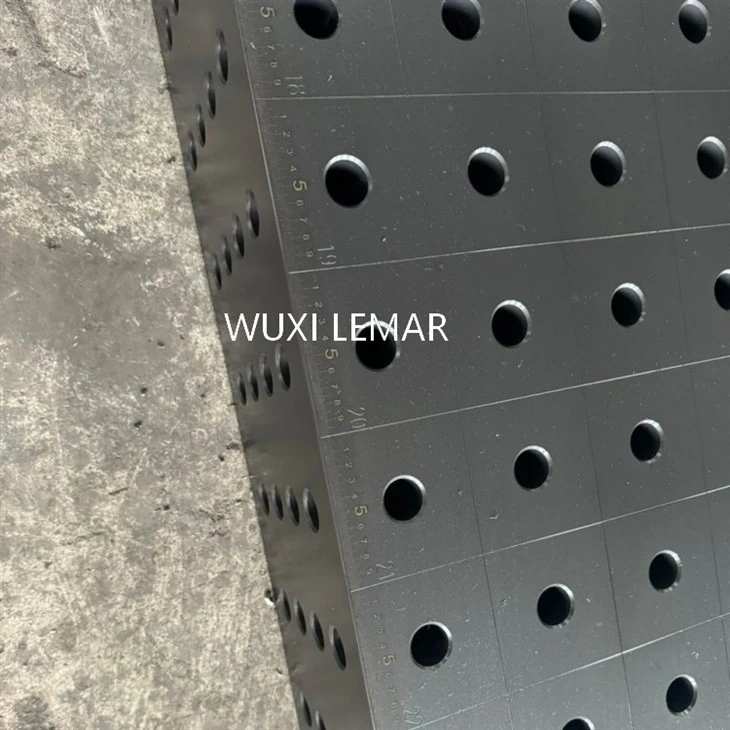

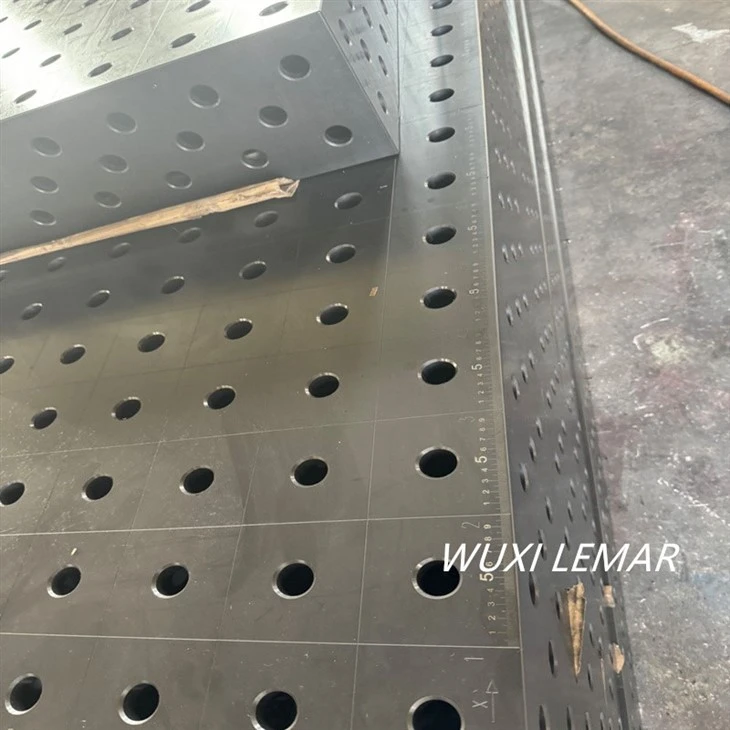

The 28mm modular welding fixture platform is an industrial-grade tooling platform based on a standardized 28mm aperture grid system. It is a modular and reconfigurable precision clamping system specially designed for welding and metal assembly. Through precision-manufactured cast iron or steel structure platforms and supporting modular fixture components, it provides stable, accurate and reusable three-dimensional benchmarks and clamping solutions for the manufacturing process.
high quality
advanced equipment
professional team
global shipping
Main Features
DM Eva directly for quotation and more details.
1. Standardized Aperture System
• φ28mm standard hole: internationally standard aperture, compatible with mainstream fixture systems
• Standardized grid layout: usually 100×100mm equidistant grid
• Precision thread specifications: M12 or M16 standard threads, ensuring high-strength connection
2. Precision Manufacturing Foundation
• High-precision hole position: hole distance tolerance ±0.05mm, aperture tolerance ±0.02mm
• Excellent flatness: the flatness of the working surface usually reaches within 0.1mm/m
• Stable material: high-strength gray cast iron or stress-relieved steel plate, maintaining precision for a long time
3. All-round Installation Capability
• Five-sided operation: fixtures can be installed on the top surface and four side surfaces of the platform
• Three-dimensional adjustment: supports precise adjustment and fixing in X/Y/Z directions
• Flexible combination: fixtures can be arbitrarily combined to adapt to complex geometric shapes
4. Modular Ecosystem

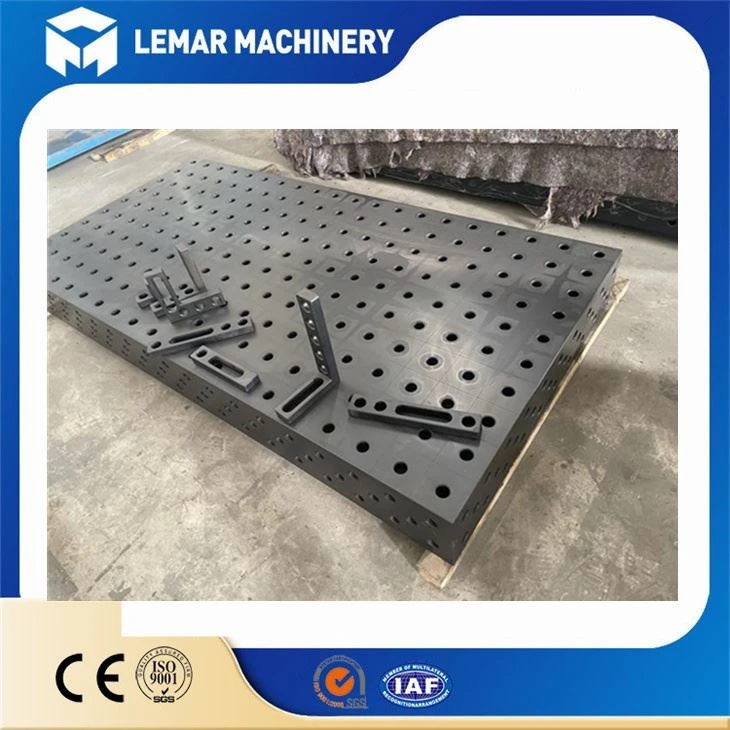

• Rich fixture library: hundreds of standardized fixtures available (support blocks, angle devices, pressure plates, etc.)
• Expandable design: multiple units can be spliced to form a large working area
• Compatibility design: compatible with various automation equipment and measurement systems
Typical application: frame welding
We are direct factory of welding fixture table.
Bottom frame positioning:
Lean the bottom frame against the datums and level it with support blocks
Column
installation:
Install the column vertically and use an angle clamp to ensure a 90-degree verticality
Beam
assembly:
Install the beam and check the levelness and diagonal
Comprehensive clamping:
Use quick clamps to fix at key connection points
Main Features
We have set toolings and full accessories list,contact Eva Summer for more details.
Why choose us?
Related Certification
FAQ
28mm Modular Welding Fixture Table is the optimal solution for balancing precision, efficiency, and flexibility in a modern manufacturing environment. It transforms the "rigid special-purpose tooling" of traditional manufacturing into "flexible intelligent tooling," providing manufacturing enterprises with a core capability platform to meet the diverse needs of the market.
If you are looking for a reliable 3D welding fixture table supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
