Modular Welding & Fixturing Table
what is Modular Welding & Fixturing Table?
The modular welding and fixture workbench is a reconfigurable industrial tooling platform system based on a precision grid hole system. It consists of standardized tabletop modules, support structures, and hundreds of compatible fixture accessories. Through a mathematical and coordinate positioning system (usually a square or rectangular grid), it provides flexible and high-precision workpiece fixing solutions for manufacturing processes such as welding, assembly, and inspection.
high quality
advanced equipment
professional team
global shipping
Application fields
| Application Industry | Typical Application Scenarios |
|---|---|

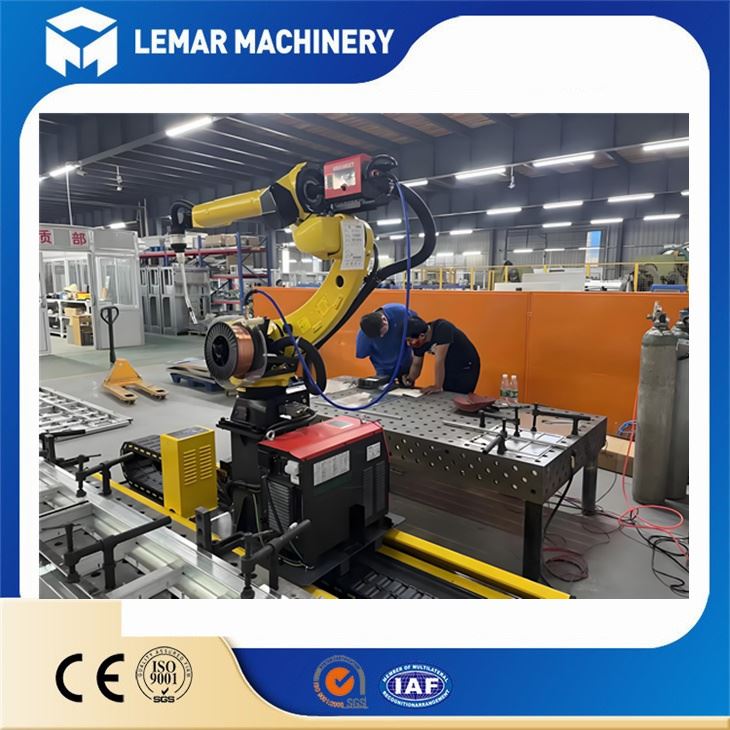

| Welding Manufacturing | Structural welding, multi-position welding, complex component positioning, robotic welding fixtures |
| Mechanical Assembly | Precision component assembly, bearing pressing, gear alignment, automated assembly line stations |
| Quality Inspection | CMM (Coordinate Measuring Machine) support fixtures, gauge reference platforms, optical inspection positioning |
| Education & Research | Vocational skills training, process research, prototype development and verification |
| Maintenance & Repair | Large equipment repair positioning, component repair fixtures |
| Small to Medium Batch Production | Rapid changeover tooling for multi-variety, small-batch production |
Our Service Processes
Our free service hotline:+86 159 952 699 47(Eva summer)
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receive
5
>>
After-sale Services
6
Product Workflow
Detailed step-by-step instructions:
1. Process analysis phase: Analyze the workpiece drawings, determine the positioning datums, clamping points, and welding sequence.
2. Digital planning: Use dedicated software for 3D simulation to verify accessibility and absence of interference.
3. Physical configuration: Install accessories according to the plan, following the principle of "first support, then position, and finally clamp".
4. Verification and debugging: Use measuring tools to verify the clamping accuracy, and make fine adjustments if necessary.
5. Execution and monitoring: Execute according to the process and monitor key parameters such as thermal deformation.
6. Restoration management: After disassembly, clean, inspect, and put all accessories back in place to maintain the integrity of the system.
Selection Recommendations
Selection Recommendations
The following factors should be comprehensively considered during selection:
• Grid size: 16mm (for precision small parts), 28mm (general purpose), 50mm/96mm (for heavy large parts)
• Material type: cast iron (high rigidity, vibration damping), steel (lightweight, high strength)
• Accuracy class: economic grade (±0.1mm), industrial grade (±0.05mm), precision grade (±0.02mm)
• Expansion requirements: plane expansion capability, possibility of three-dimensional expansion, intelligent interfaces
Related Certification
FAQ
Against the backdrop of Industry 4.0 and smart manufacturing, Modular Welding & Fixturing Tables are transforming from "optional equipment" to "core infrastructure." They serve as a crucial cornerstone for enterprises to build flexible manufacturing capabilities and achieve digital transformation. Making the right choices, implementing them systematically, and continuously optimizing these systems will enable this investment to generate strategic returns that far exceed the value of the equipment itself over a period of 5 to 10 years.
If you are looking for a reliable 3D welding fixture table supplier, please contact Eva directly now.
We will recommend the most suitable welding fixture system solution according to your application.
