Multi Functional Welding Fixture Tool Table
Lemar Multi Functional Welding Fixture Tool Table is a modular tooling equipment designed for welding processes. It integrates multiple functions such as positioning, clamping, fixing, and rotation, aiming to improve welding accuracy, efficiency, and work safety.
Whatsapp Phone Number
evasummer@lemarmetal.com
Products parameters
|
Features |
Cast Iron(Take gray cast iron as an example) |
Q355 |
|
Tensile strength |
lower(120-400 MPa) |
higher(≥355 MPa,actually achievable 470-630 MPa) |
|
Tenacity |
High brittleness and almost no plastic deformation capacity |
Good toughness, can withstand impact and dynamic load |
|
Hardness |
High(HB 150-300) |
Medium hardness(HB 130-180) |
|
Weldability |
Bad(Easy to crack) |
Excellent (suitable for welded structures) |
Products specification
our product

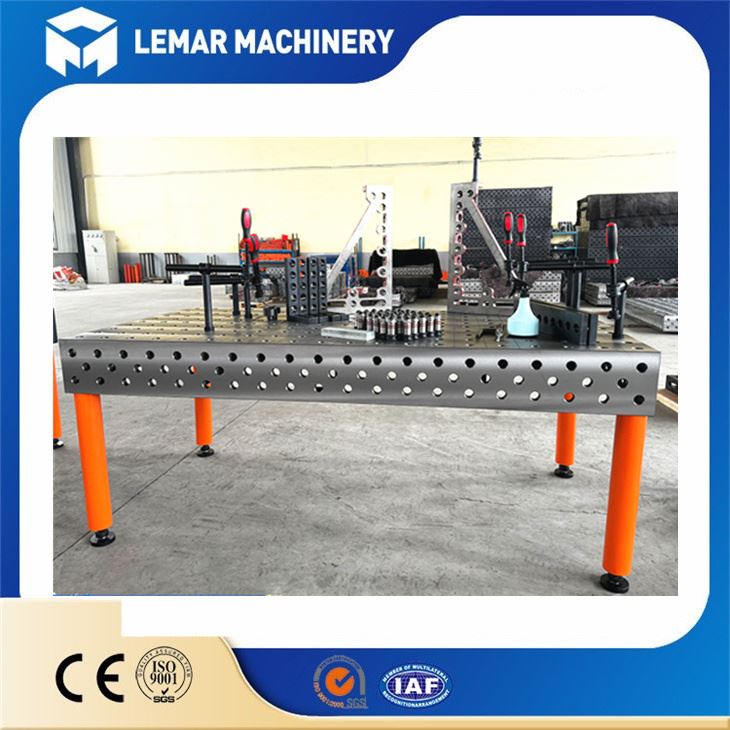

Multi Functional Welding Fixture Tool Table
Main components
Main structure:

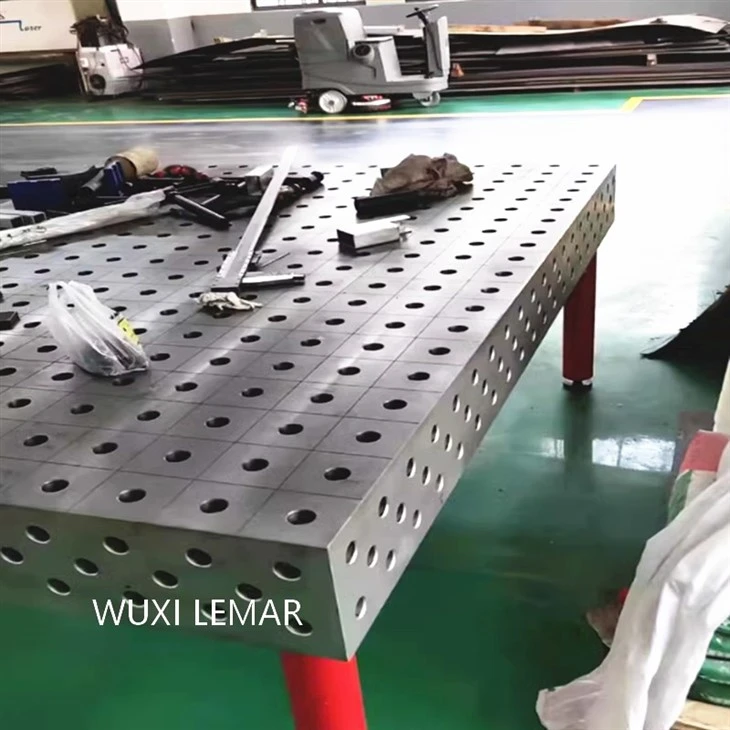

Work surface: usually high-strength steel or cast iron, with standardized hole arrays (such as DIN standard grid holes) for mounting fixtures.
Base/bracket: provides stability, and some models have rotation or lifting functions.
Fixture system:
Mechanical fixture: quick clamp, toggle clamp, etc.
Magnetic fixture: adsorbs metal workpieces, suitable for irregular shapes.
V-block/locating pin: used for positioning cylindrical workpieces.
Accessories:
Angle adjuster, flip mechanism, coolant tank, etc.
Typical application And Features
Key features
Modular design: adapt to different workpieces (such as pipes, plates, frames) by replacing fixtures.
High precision: hole array positioning accuracy can reach ±0.1mm, reducing welding deformation.
Durability: high temperature resistant materials (such as stainless steel) resist welding spatter.
Safety optimization: splash guard, grounding terminal and other designs.
Application scenarios
Industry: automobile manufacturing, shipbuilding, aerospace, steel structure processing.
Process:
MIG/TIG/arc welding.

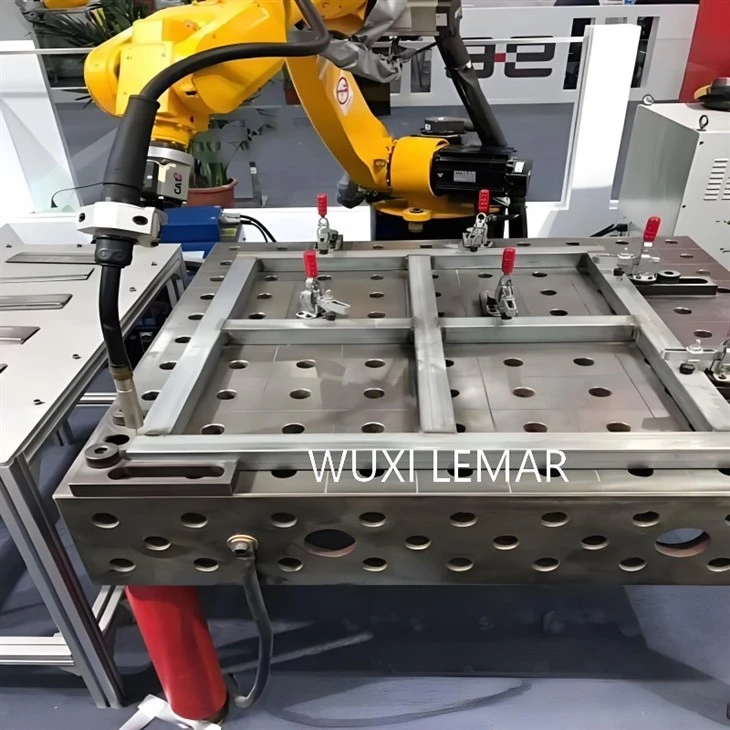

Auxiliary positioning of robot welding.
Small batch and multi-variety production.
Lemar multifunctional welding fixture tool bench is one of the core equipment in modern welding workshops. It balances precision and efficiency through standardization and flexibility, and is particularly suitable for high-mix, small-batch production environments. Correct selection and use can significantly improve welding quality and economic benefits.
